프랑스 동부선 전차선로

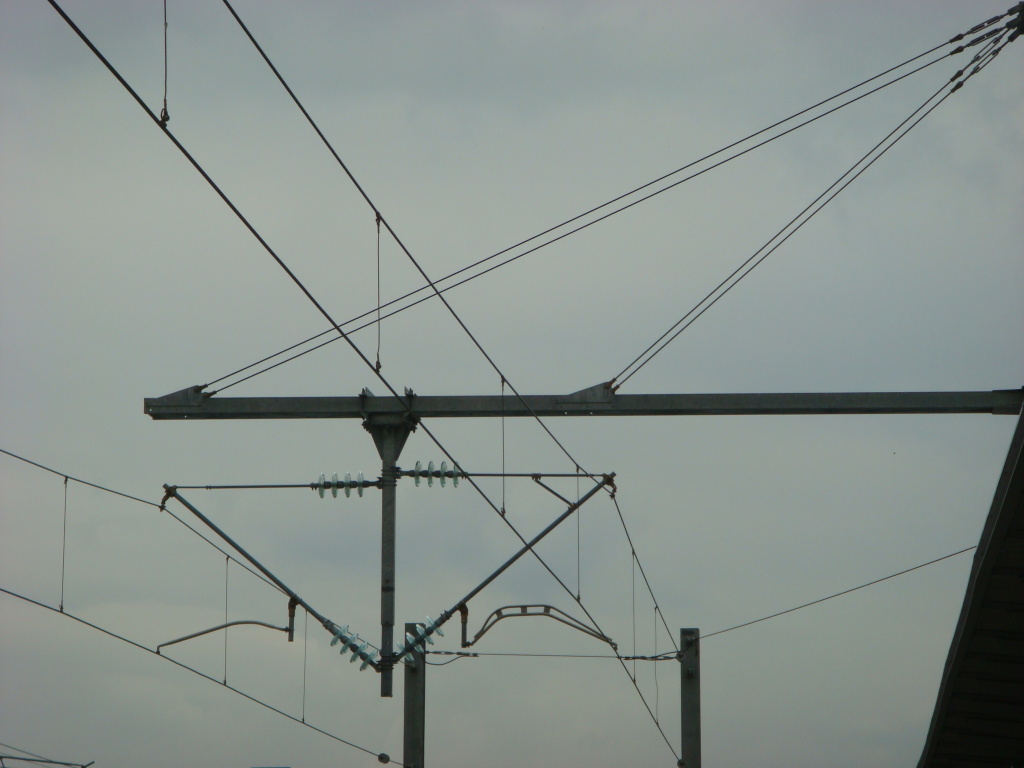

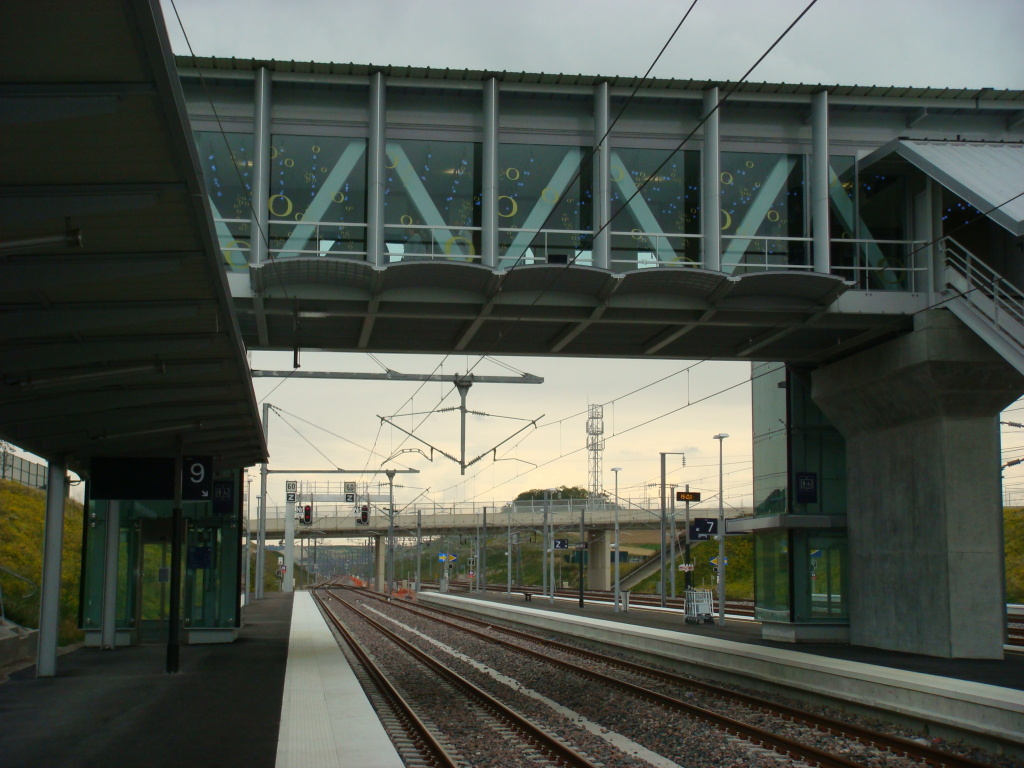

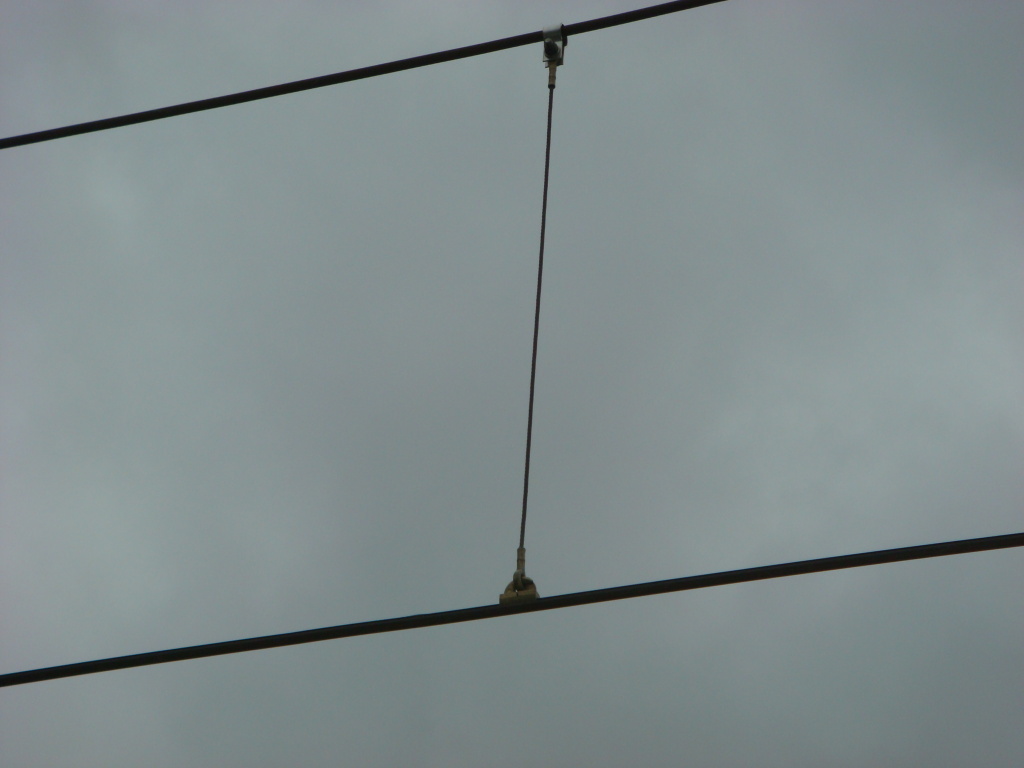

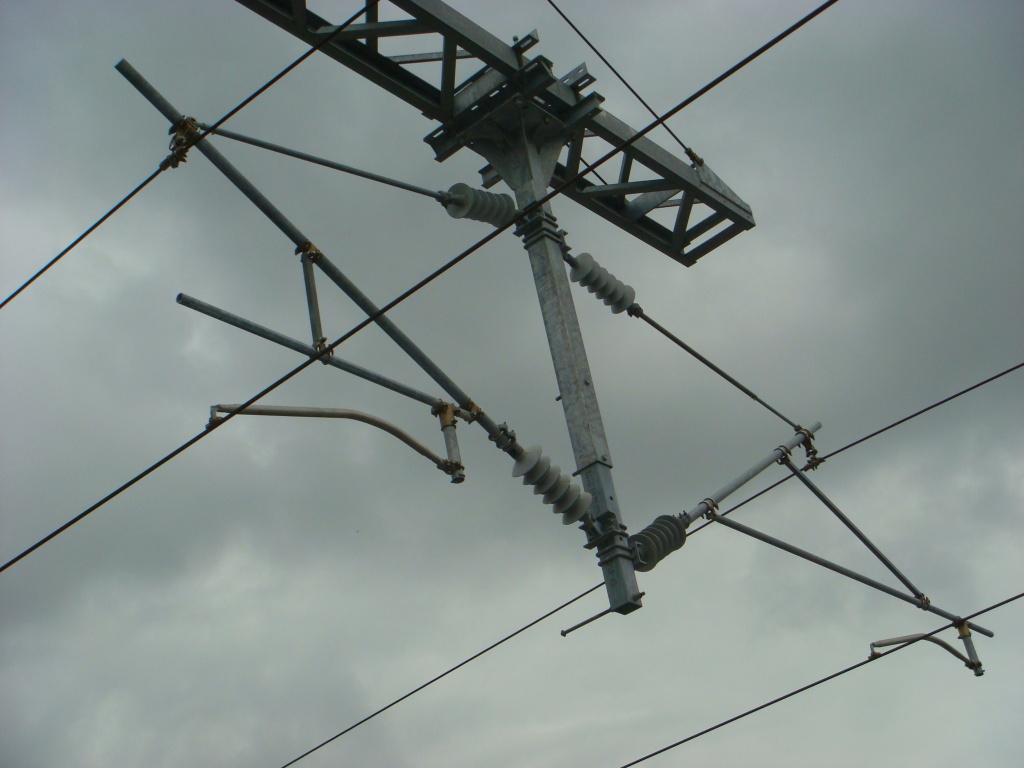

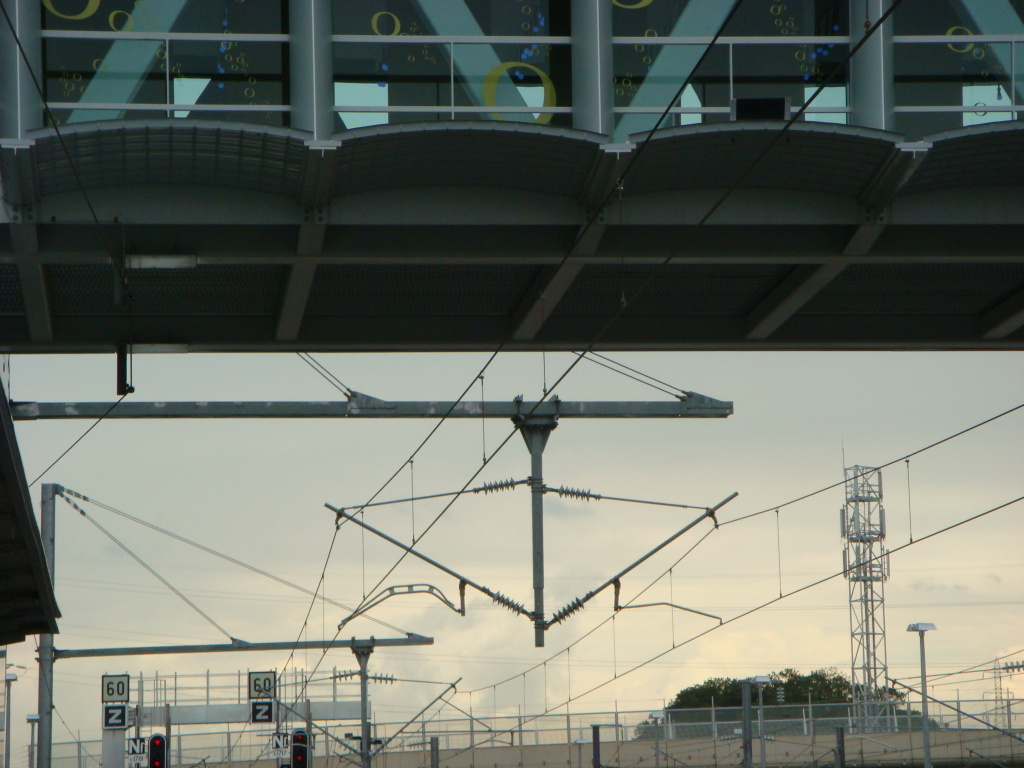

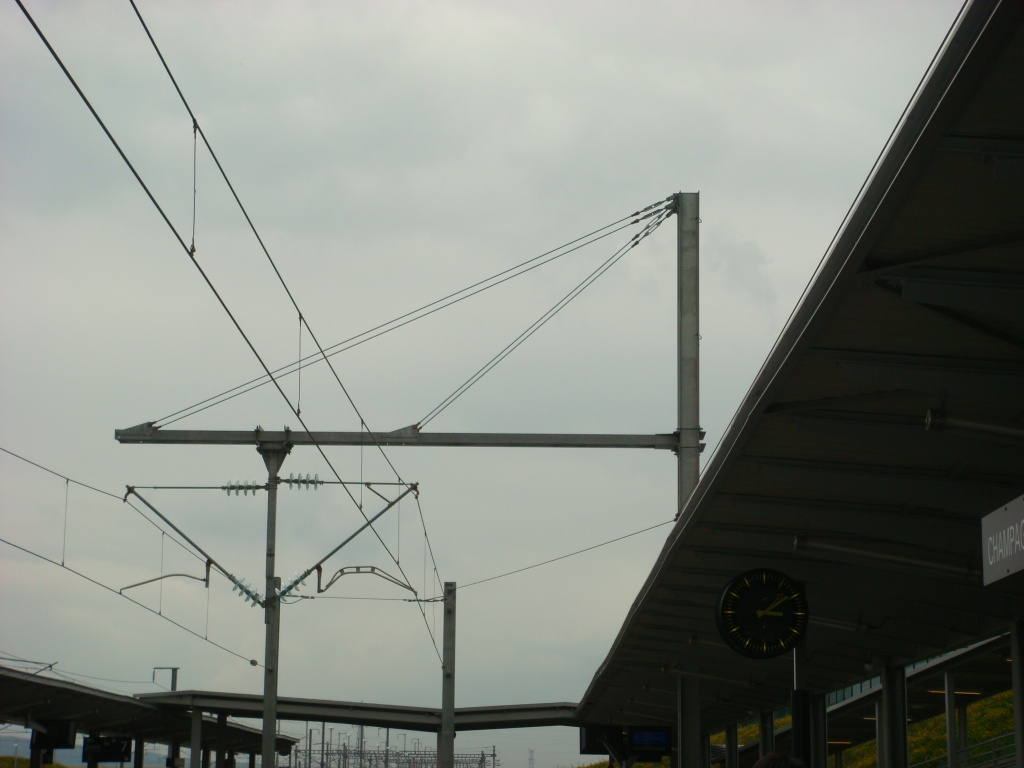

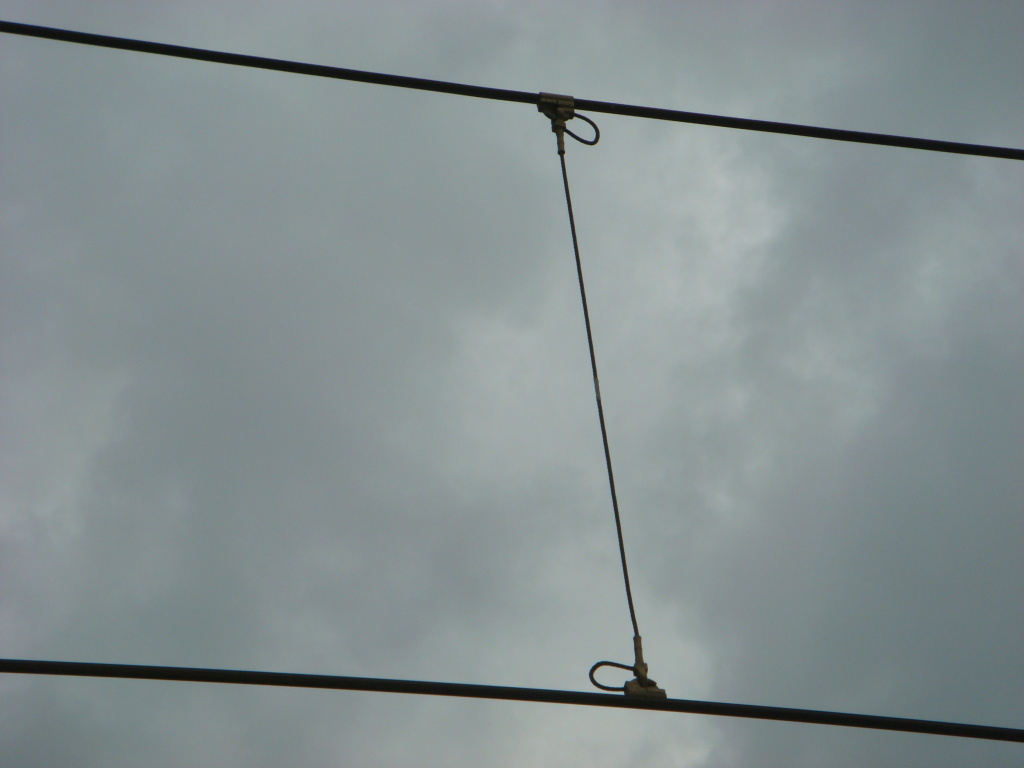

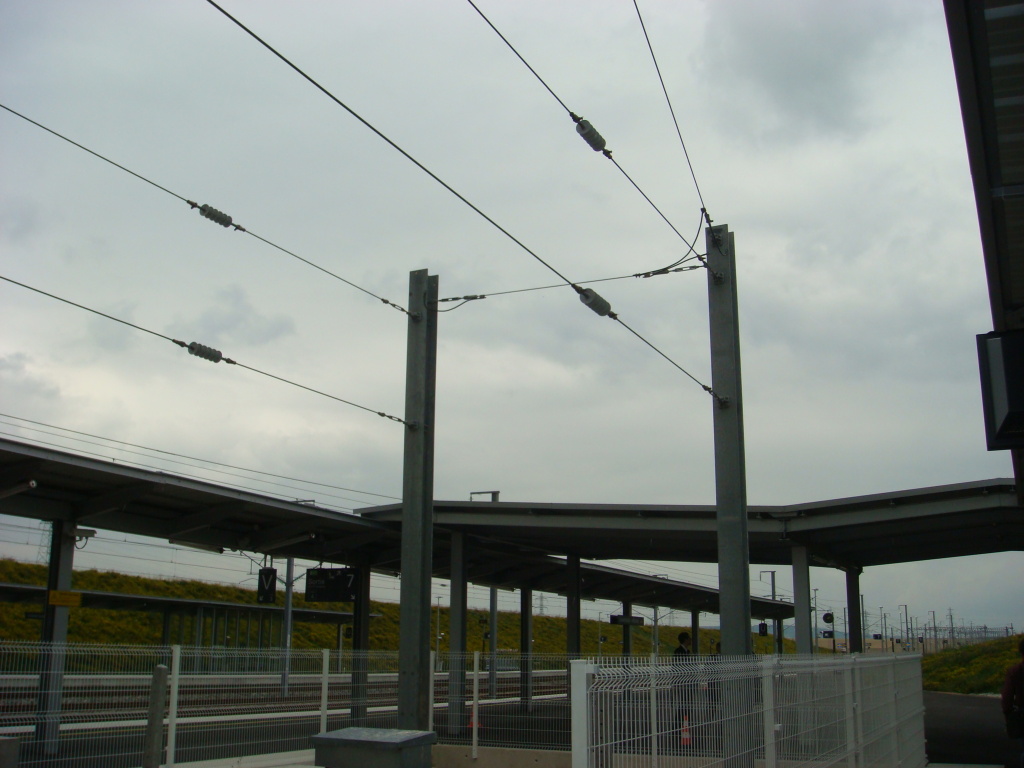

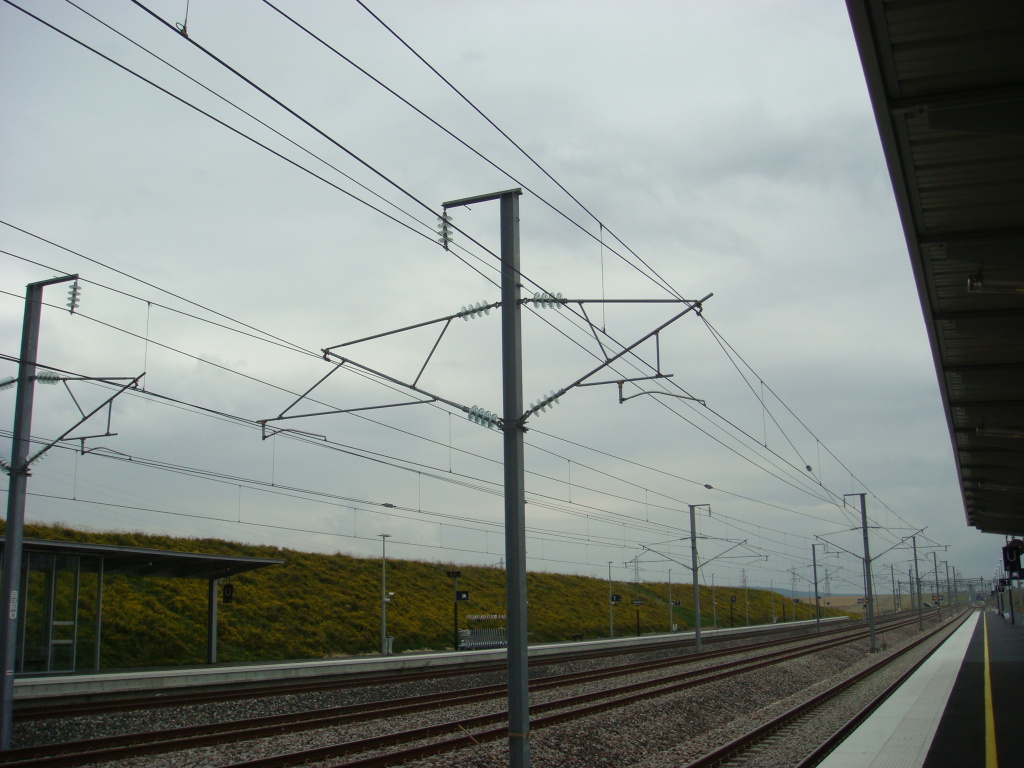

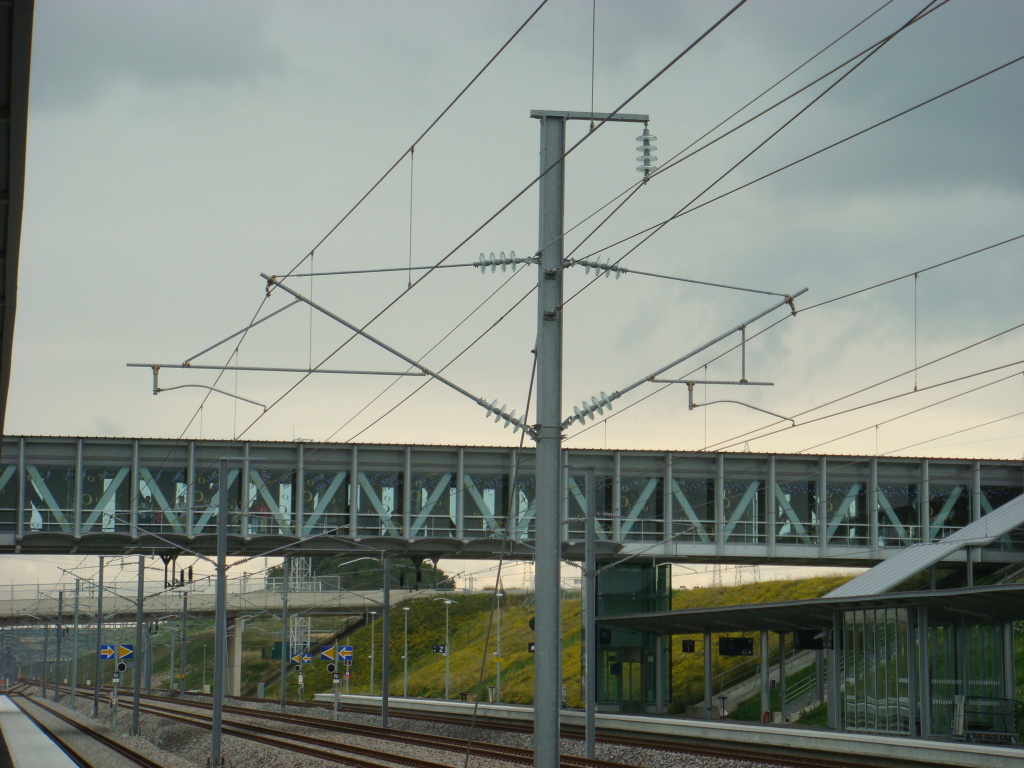

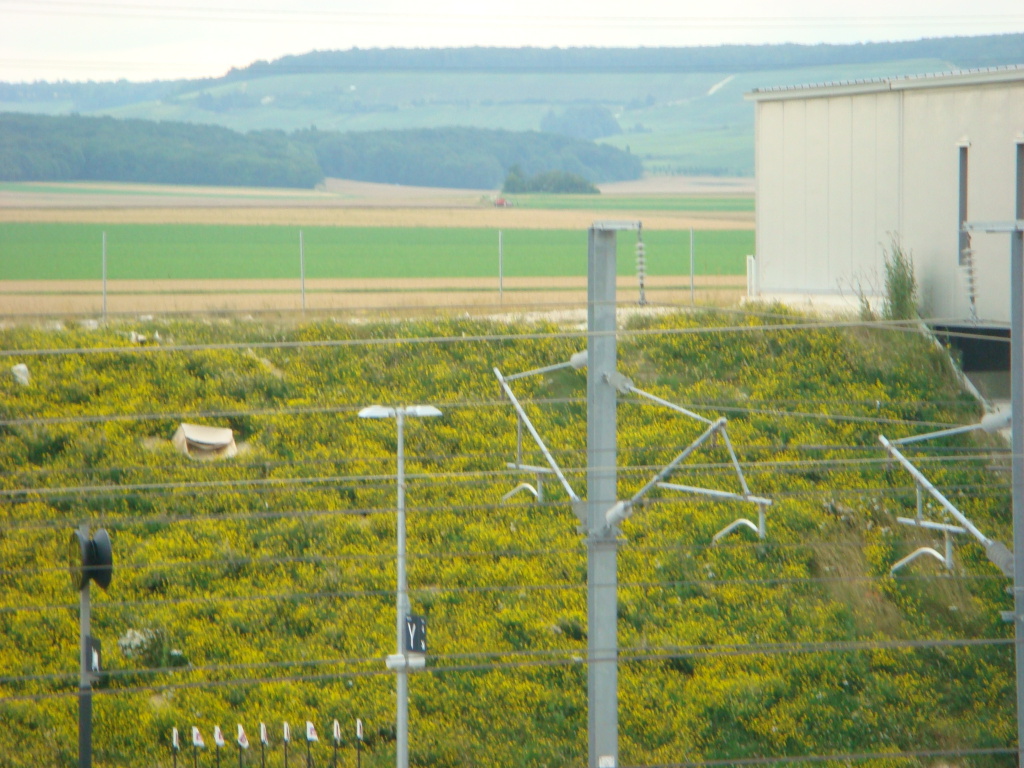

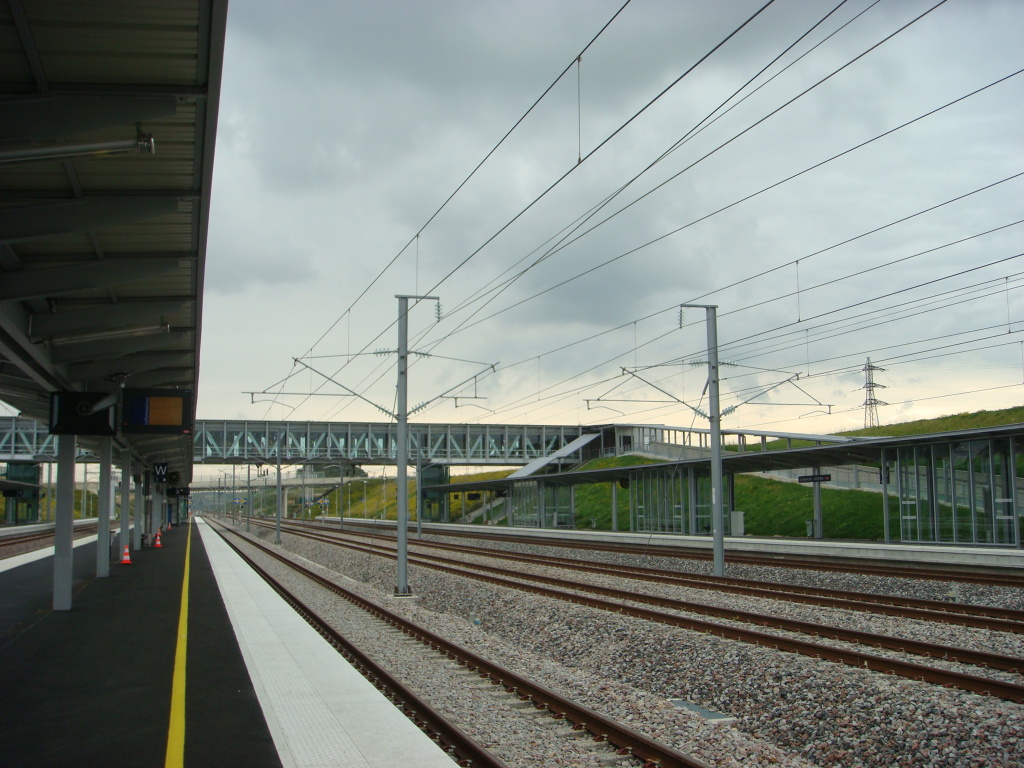

프랑스 동부선 전차선로 현황에 대하여 조사 하였습니다. 1.전차선 조가방식 :  심플 커티너리 방식 2.조가선: BZ116mm² ,장력:20KN 3.전차선: Cu-Sn 150mm² 원형, 장력:26KN 4.운행속도: 320km/h 5.드로퍼: 균압용드로퍼(본선),측선은 일반드로퍼 사용 6.기타설비는 경부 고속전철과 동일합니다.   1.가동브래킷 <img src="https://t1.daumcdn.net/cafefile/pds99/11_cafe_2008_11_20_10_04_4924b6eb996e4" border="0" hspace="1" vspace="1" class="tx-daum-image" style="CLEAR: none; FLOAT: none" actualwidth="1024" width="1024" />   2.구내 가선 시스템  <img src="https://t1.daumcdn.net/cafefile/pds99/12_cafe_2008_11_20_10_04_4924b6f6d7aed" border="0" hspace="1" vspace="1" class="tx-daum-image" style="CLEAR: none; FLOAT: none" actualwidth="1024" width="1024" />   3.인류장치  <img src="https://t1.daumcdn.net/cafefile/pds99/2_cafe_2008_11_20_10_04_4924b71739b62" border="0" hspace="1" vspace="1" class="tx-daum-image" style="CLEAR: none; FLOAT: none" actualwidth="1024" width="1024" />   4.본선 균압용 드로퍼(순환 전류 방지용으로 개선)  <img src="https://t1.daumcdn.net/cafefile/pds99/11_cafe_2008_11_20_10_04_4924b72d187ff" border="0" hspace="1" vspace="1" class="tx-daum-image" style="CLEAR: none; FLOAT: none" actualwidth="1024" width="1024" />   5.역구내 전차선로  <img src="https://t1.daumcdn.net/cafefile/pds99/9_cafe_2008_11_20_10_04_4924b740bec04" border="0" hspace="1" vspace="1" class="tx-daum-image" style="CLEAR: none; FLOAT: none" actualwidth="1024" width="1024" />   6.구내 외팔빔  <img src="https://t1.daumcdn.net/cafefile/pds99/13_cafe_2008_11_20_10_04_4924b74fada78" border="0" hspace="1" vspace="1" class="tx-daum-image" style="CLEAR: none; FLOAT: none" actualwidth="1024" width="1024" />   7.구내 측선 드로퍼  <img src="https://t1.daumcdn.net/cafefile/pds99/9_cafe_2008_11_20_10_04_4924b75ed7646" border="0" hspace="1" vspace="1" class="tx-daum-image" style="CLEAR: none; FLOAT: none" actualwidth="1024" width="1024" />   8.역간 전차선로  <img src="https://t1.daumcdn.net/cafefile/pds99/15_cafe_2008_11_20_10_04_4924b7708c306" border="0" hspace="1" vspace="1" class="tx-daum-image" style="CLEAR: none; FLOAT: none" actualwidth="1024" width="1024" />   9.하수강에 설치된 가동브래킷  <img src="https://t1.daumcdn.net/cafefile/pds99/16_cafe_2008_11_20_10_04_4924b782a0342" border="0" hspace="1" vspace="1" class="tx-daum-image" style="CLEAR: none; FLOAT: none" actualwidth="1024" width="1024" /> 10.외팔빔에 설치된 전차선로  <img src="https://t1.daumcdn.net/cafefile/pds99/4_cafe_2008_11_20_10_04_4924b79020c0f" border="0" hspace="1" vspace="1" class="tx-daum-image" style="CLEAR: none; FLOAT: none" actualwidth="1024" width="1024" />   11.H형강주에 설치된 전차선로  <img src="https://t1.daumcdn.net/cafefile/pds99/10_cafe_2008_11_20_10_04_4924b79dd04a0" border="0" hspace="1" vspace="1" class="tx-daum-image" style="CLEAR: none; FLOAT: none" actualwidth="1024" width="1024" />   12. 가공 전차선로 <img src="https://t1.daumcdn.net/cafefile/pds99/1_cafe_2008_11_20_10_04_4924b7a618717" border="0" hspace="1" vspace="1" class="tx-daum-image" style="CLEAR: none; FLOAT: none" actualwidth="1024" width="1024" />
