The Brain

[마황]

The Brain
 Brains exist because the distribution of resources necessary for survival and the hazards that threaten survival vary in space and time. There would be little need for a nervous system in an immobile organism or an organism that lived in regular and predictable environment. Brains are informed by the senses about the presence of resources and hazards; they eval‎uate and store this input and generate adaptive responses executed by the muscles.

Some of the most basic features of brains can be found in bacteria because even the simplest motile organisms must solve the problem of locating resources and avoiding toxins. They sense their environment through a large number of receptors, which are protein molecules embedded in the cell wall. The action taken in response to the inputs usually depends on the gradient of the chemicals (see Figure 03a). Thus memory is required to compare the inputs from different locations. The strength of the signal is modulated by immediate past experience. This in turn regulates the strength of the signal sent by chemical messengers from


Figure 03a E. coli's Response to Chemical Gradient

the receptor to the flagellar motors. Thus even at the unicellular level, the bacteria have already possessed the ability to integrate numerous analog inputs and generate a binary (digital) output of stop or go.

In multicellur organism, cells specialized for receptor function are located on the surface. Other cells specialized for the transmission and analysis of information are located in the protected interior and are linked to effector cells, usually muscles, which produce adaptive responses. As do unicellular organisms, neurons integrate the diverse array of incoming information from the receptors, which in neurons may result in the firing of an action potential (when the summation is above a threshold level) rather than swimming toward a nutrient source as in the unicellular organisms. Once the threshold for generating an action potential is reached, the signal is always the same, both in amplitude and shape (a nerve consists of many neurons, it does not obey the all-or-none law).

 Action potentials and voltage-gated sodium channels are present in jellyfish, which are the simplest organisms to possess nervous systems. The development of this basic neuronal mechanism set the stage for the proliferation of animal life that occurred during the Cambrian period. Among these Cambrian animals were the early chordates, which possessed very simple brains. Some of these early fish developed a unique way to insulate their axons by wrapping them with a fatty material called myelin, which greatly facilitated axonal transmission and evolution of larger brains. Some of their descendants, which also were small predators, crawled up on the muddy shores and eventually took up permanent residence on dry land. Challenged by the severe temperature changes in the terrestrial environment, some experimented with becoming warm-blooded, and the most successful became the ancestors of birds and mammals. Changes in the brain and parental care were a crucial part of the set of mechanisms that enabled these animals to maintain a constant body temperature.

Animals with large brains are rare -- there are tremendous costs associated with large brains (the active human brain consumes about 20 watts). The brain must compete with other organs in the body for the limited amount of energy available, which is a powerful constraint on the evolution of large brains. Large brains also require a long time to mature, which greatly reduces the rate at which their possessors can reproduce. Because large-brained infants are slow to develop and are dependent on their parents for such a long time, the parents must invest a great deal of effort in raising their infants. Young reptiles function as


miniature versions of adults, but baby mammals and birds are dependent because of their poor capacity to thermo-regulate, the consequence of their need to devote most their energy to growth. Most mammals solve the problem with maternal care (Figure 03b), shelter, warmth, and milk. In most birds, both parents cooperate to provide food and shelter to their young. The expanded forebrain and parental care provide mechanisms for the extra-genetic transmission of information from one generation to the next. This transmission results from the close contact with parents during infancy, which provides the young with opportunity to observe and learn from their behavior; the expanded forebrain provides an enhanced capacity to store these memories. The expanded forebrain and the observation of parents


Figure 03b Maternal Care

are probably necessary for the establishment of successful care giving behavior itself, as the young mature into adults that will in their turn have to serve dependent young. During the period of infant dependency, baby mammals and birds play,

behavior that may be essential for the development of the forebrain. The baby's playful interaction with its environment may serve to provide the initial training of the forebrain networks that ultimately will enable the animal to localize, identify, and capture resources in its environment.

The human brain can be divided into three parts: the hindbrain, which has been inherited from the reptiles; the limbic system, which was first emerged in mammals; and the forebrain, which has its full development in human. Different views of the human brain are shown in Figure 03c, d, and e. Tables 01 lists the functions of the different parts of the human brain. The brain is separated into two hemispheres. Apart from a single little organ -- the pineal gland in the centre base of the brain -- every brain module is duplicated in each hemisphere. The left brain is calculating, communicative and capable of conceiving and executing complicated plans -- the reductionistic brain; while


Figure 03c Human Brain 1

Figure 03d Human Brain 2

the right one is considered as gentle, emotional and more at one with the natural world -- the holistic brain. The cerebral cortex is covered in a thin skin of deeply wrinkled grey tissue called the

grey matter (densely packed neurons for information processing). Each infold on the surface is known as a sulcus, and each bulge is know as a gyrus. While the white tissue inside are axons -- tentacles which reach out to other cells (to relay information). The cortex can be broken down into many functional regions, each containing thousands of cortical columns (oriented perpendicular to the cortical surface). Columns are typically about half a millimeter in diameter and contain about one hundred thousand neurons. They are the units of cognition (the mental process of acquiring knowledge by the use of reasoning, intuition or perception).


Figure 03e Human Brain 3

Table 02 below lists the location and functions of the major components in the human brain.


Structure	Location	Functions
Hindbrain (Reptilian Brain)
Medulla	at the top of the spinal cord	controls breathing, heart rate, and blood pressure.
Pons	above the medulla	regulates sensory information and facial expressions.
Cerebellum	at the lower rear	controls movement, coordination, balance, muscle tone, and learning motor skills.
Reticular Formation	a network of nerves extends from the medulla to the cerebrum	monitors the general level of activity in the hindbrain and maintains a state of arousal; essential for the regulation of sleep and wakefulness.
Midbrain (superior & inferior colliculus)	above the pons between the hindbrain and forebrain	relays sensory information from the spinal cord to the forebrain.
Pineal Gland	on top of the midbrain behind the thalamus (the third eye¤ for fishes, amphibians, reptiles, and some birds)	involves in circadian and circannual rhythms; possibly involves in maturation of sex organs.
Limbic System (Mammalian Brain)
Thalamus	in the middle of the limbic system	relays incoming information (except smell) to the appropriate part of the brain for further processing.
Hypothalamus, Pituitary Gland	beneath thalamus	regulates basic biological drives, hormonal levels, sexual behavior, and controls autonomic functions such as hunger, thirst, and body temperature.
Optic Chiasm	in front of the pituitary gland	left-right optic nerves cross-over point.
Septum	adjacent to hypothalamus	stimulates sexual pleasure
Hippocampus	within the temporal lobe	mediates learning and memory formation.
Amygdala	in front of the hippocampus	responsible for anxiety, emotion, and fear
Mammillary Body, Fornix	linked to the hippocampus	have a role in emotional behavior, learning, and motivation.
Basal Ganglia (Striatum): Caudate Nucleus, Putamen, Globus Pallidus	outside the thalamus	involves in movement, emotions, planning and in integrating sensory information
Ventricles and Central Canal	from tiny central canal within the spinal cord to the enlarged hollows within the skull called ventricles	fills with cerebrospinal fluid for mechanical protection.
Cingulate Gyrus	above corpus callosum	concentrates attention on adverse internal stimuli such as pain, contains the feeling of self.
Corpus Callosum	under the cingulate gyrus	is a bundle of nerve fibers linking the cerebral hemispheres, involve in language learning.
Forebrain (Human Brain)
Frontal Lobe (Conscious Brain)	in front of the head	controls voluntary movement, thinking, and feeling.
Prefrontal Cortex	in front of the frontal lobe	inhibits inappropriate actions, forms plans and concepts, helps focus attention, and bestows meaning to perceptions.
Parietal Lobe	in top rear of the head	contains the primary somatosensory area that manages skin sensation.
Occipital Lobe	in the back of the head	contains the visual cortex to manage vision.
Temporal Lobe	on each side of the head above the temples	contains the auditory cortex to manage hearing and speech.

Table 02 Human Brain

¤The parietal eye is not an eye in the traditional sense in that it does not see images, but rather is a photosensitive organ which only reacts to light and dark. The parietal eye is connected to the pineal body and is used to trigger hormone production and thermoregulation. It often shows up as either a dark spot or an opalescent spot. Opsin proteins sensitive to blue and green light has been identified in the cell.

 Throughout its lifetime, the human brain undergoes more changes than any other part of the body. They can be broadly divided into five stages. Table 03 summarizes the significant events within each stage, the "DO" and "DON'T" to keep a healthy mind.

Stage	Age	Event(s)	DO	DON'T
1	0 - 10 months Gestation	* Growing neurons and connections * Making sure each section of the brain grows properly and in the right place	Mother should: * be stress-free, eats well * take folic acid and vitamin B12 * stimulate the young brain with sounds and sensations	* Mother should stay away from cigarettes, alcohol and other toxins
2	Birth - 6 Childhood	* A sense of self develops as the parietal and frontal lobe circuits become more integrated. * Development of voluntary movement, reasoning, and perception * Frontal lobes become active leading to the development of emotions, attachments, planning, working memory and attention * Life experiences shape the emotional well-being in adulthood * At age 6, the brain is 95% of its adult weight and at its peak of energy consumption	* Parents should provide a nurturing environment and one-on-one interaction	* Parents should beware of the emotional consequence of neglect or harsh parenting
3	7 - 22 Adolescence	* Wiring of the brain is still in progress * Grey matter (neural connections) pruning * White matter (fatty tissue surrounding neurons) increase helps to speed up electrical impulses and stabilize connections * The prefrontal cortex (involving control of impulses, judgment and decision-making) is the last to mature	* Teenagers should learn to control reckless, irrational and irritable behaviors * Do learn a skill to support life in the future	* Teenagers should avoid alcohol abuse, smoking, drug and unprotected sex.
4	23 - 65 Adulthood	* The brain reaches the peak power at around age 22 and lasts for about 5 years; thereafter it's downhill all the way * The last to mature and first to go brain functions are those involve executive control in the prefrontal and temporal cortices * Episodic memory for recalling events also declines rapidly * Processing speed slows down * Working memory is able to store less information	* Stay active mentally and physically * Eat healthy diet	* Avoid cigarettes, booze, and mind-altering drugs.
5	> 65 Old Age	* Losing brain cells in critical areas such as the hippocampus where memories are processed	* Exercise to improve abstract reasoning and concentration * Learn new skill such as guitar playing to attain the same effect * Practice meditation can promote neutral emotions	* Avoid grumpiness by eating certain foods, such as yogurt, chocolate, and almonds to get a good dose of dopamine (for promoting positive emotions) * Don't stressed out as it is related to higher risk of developing dementia.

Table 03 The Five Stages of Human Brain

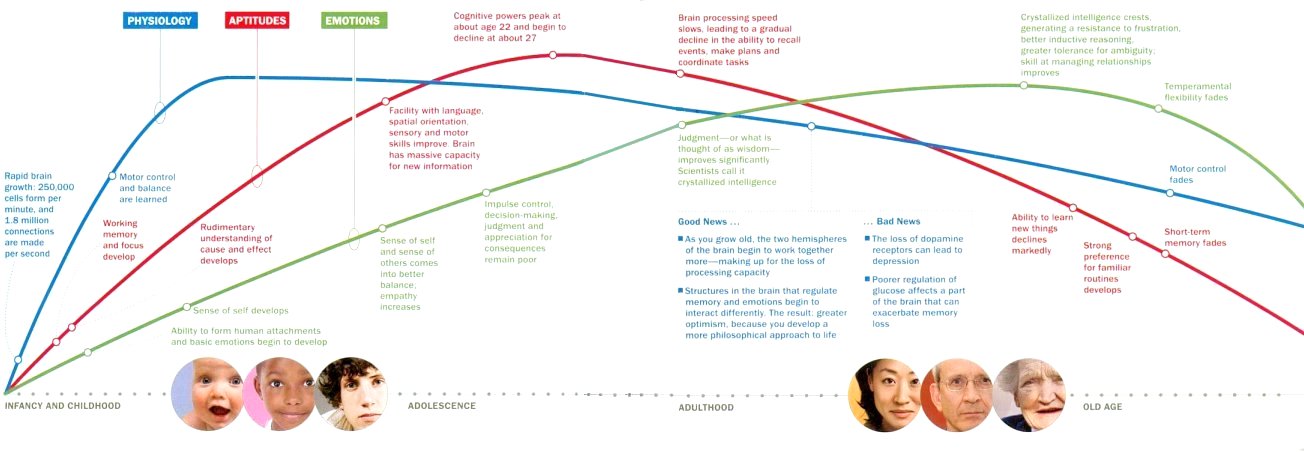

 Figure 03f below depicts pictorially the four stages of human brain after birth tracing the up and down of physiology, aptitudes, and emotions as we grow old.

Figure 03f The Four Stages of Human Brain

It is well known that the brain is an electrochemical organ; a fully functioning brain can generate as much as 20 watts of electrical power. Even though this electrical power is very limited, it does occur in very specific ways that are characteristic of the human brain. Electrical activity emanating from the brain can be displayed in the form of brainwaves. There are four categories of these brainwaves, ranging from the most active to the least active. Figure 03g is produced by an EEG (ElectroEncephaloGraph) chart recorder to show the different kind of brainwave according to the different state of the brain. These are all oscillating electrical voltages in the brain, but they are very tiny voltages, just a few millionths of a volt. Electrodes are placed on the outer surface of the head to detect electrical changes in the extracellular fluid of the brain in response to changes in potential among large groups of neurons. The resulting signals from the electrodes are amplified and recorded.

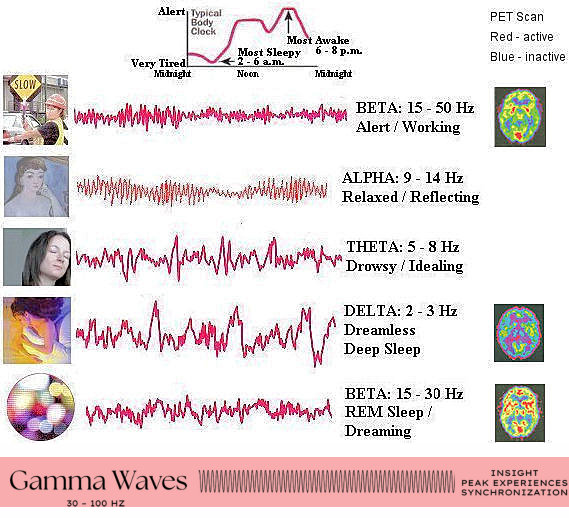

Figure 03g Brain Waves

 Brain waves originate from the cerebral cortex, but also reflect activities in other parts of the brain that influence the cortex, such as the reticular formation. Because the intensity of electrical changes is directly related to the degree of neuronal activity, brain waves vary markedly in amplitude and frequency between sleep and wakefulness. Beta wave rhythms appear to be involved in higher mental activity, including perception and consciousness. It seems to be associated with consciousness, e.g., it disappears with general anesthesia. Other waves that can be detected are Alpha, Theta, and Delta. When the hemispheres or regions of the brain are producing a wave synchronously, they are said to be coherent. Alpha waves are generated in the Thalamus (the brain within the brain), while Theta waves occur mainly in the parietal and temporal regions of the cerebrum. The Alpha and Theta waves seem to


be associated with creative, insightful thought. When an artist or scientist has the "aha" experience, there's a good chance he or she is in Alpha or Theta. These two kinds of brain waves are also associated with relaxation and, stronger immune systems. Therefore, many people try to train themselves to enter such states through various biofeedback7 techniques (with varying degree of success). Delta Waves occur during sleep. They originate from the cerebral cortex when it is not being activated by the reticular formation. In slow-wave sleep, the entire brain oscillates in a gentle rhythm quite unlike the fragmented oscillations of normal consciousness. The neocortical activity is often modulated by a rhythm of 40-80 Hz, called the Gamma wave (not shown in Figure 03g). When there are strong gamma oscillations in certain parts of the neocortex, human subjects do better on learning and memory tasks. A 2010 study indicates that brainwaves are for integrating various sensations to ensure all the relevant signals

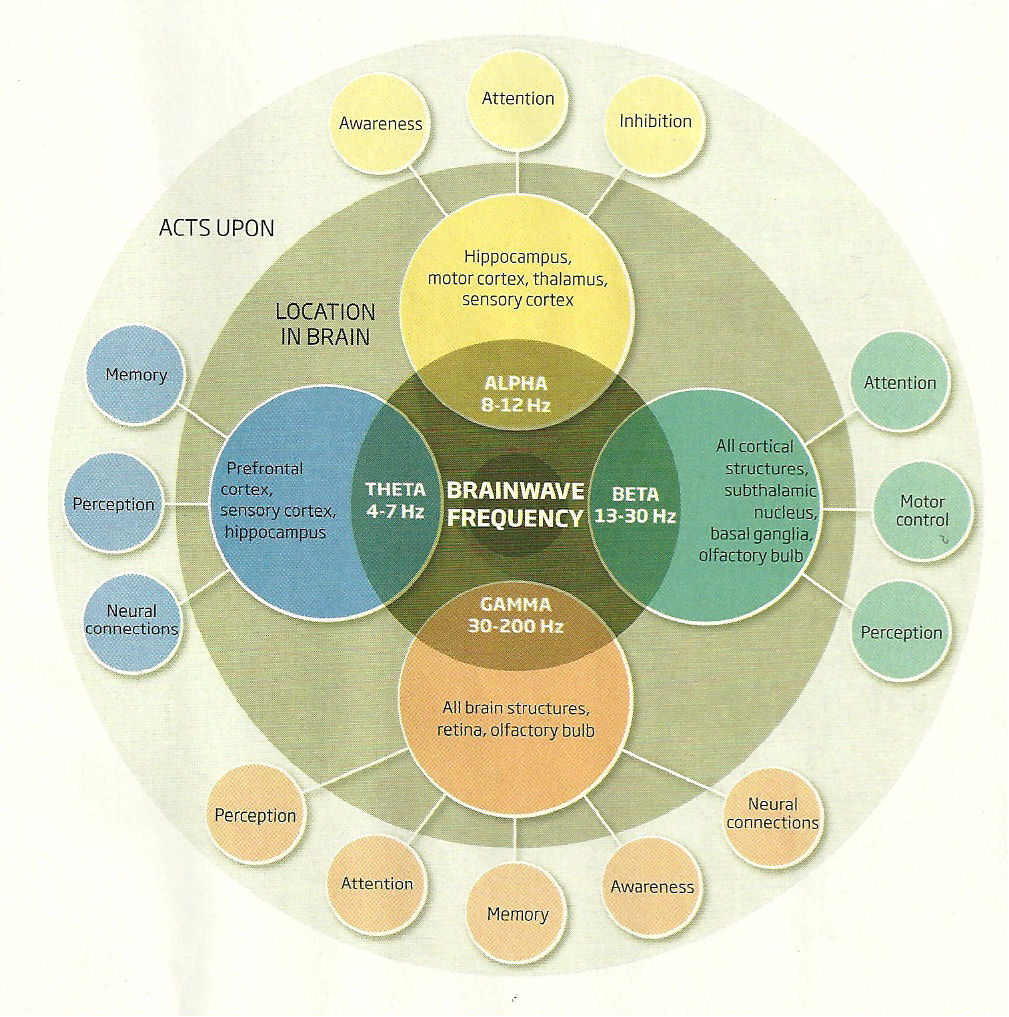

Figure 03h Integration of Brain Waves

for one event arrive at the binding site at exactly the same time. This allows the receiving neurons to process the signals together, recombining them into a single sensation. For example, we see an apple as red and round, not one red thing and another round thing although red and

round are processed by different neuron cells. Figure 03h shows the brain experiences simultaneously many types of brainwaves within its various regions, each performing different functions.

 Disorder like schizophrenia can be explained by irregularity in brainwaves. They either don't spread far enough in the brain, or aren't tightly synchronized with one another. For reduced synchronization, a person with schizophrenia would fail to recognize the words they have uttered as being their own, leading them to attribute the voice to someone else instead. Faulty gamma waves in the hippocampus, might lead to the inability to clearly distinguish thoughts formed within from outside sensory events. That is, they often ascribe too much importance to random environmental stimuli, misattribute the cause of something, or have confused memories for something that they didn't do. Reliefs include drugs to boost up the neurotransmitter GABA (related to gamma oscillations), magnetic stimulation to correct neural rhythms, or re-tune the brainwaves by training.

With all these delicate components inside the brain, it will not work properly without a critical modification of the capillaries. This is the blood brain barrier (BBB), which prevents harmful substances getting into the brain from the blood. Usually, the capillaries provide a small gap between the endothelial cells (the inner-most layer of cells) to let nutrients and oxygen going into the organs. The gap is large enough for bacteria, and large hydrophilic molecules to escape from the blood vessel causing diseases and other kind of damages to the brain.

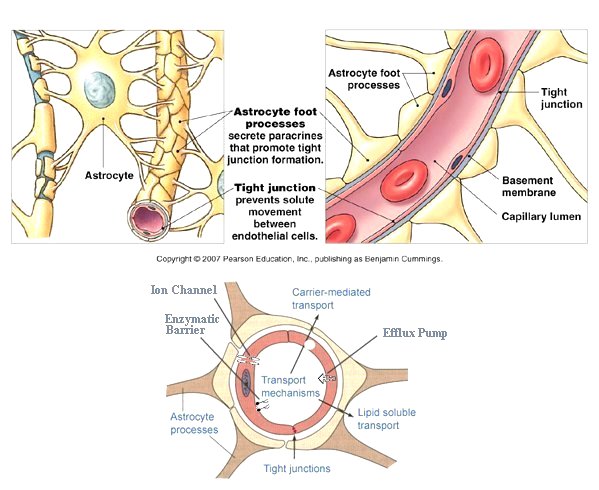

Figure 03i Blood Brain Barrier

The special functions provided by the blood brain barrier is summarized below (Figure 03i):

1.The feet of the astrocytes (a type of glial cells) form a supportive layer around the capillaries.
2.It is suggested that the astrocytes may promote the formation of the tight junctions between the endothelial cells. The tight junction is the key component to seal the pathway for water-soluble substances from getting through.
 3.Fat-soluble molecules such as CO2, O2, hormones, and alcohol (that's why we get drunk), etc. can pass through the membrane freely.
 4.Nutrients such as sugar , amino acid etc. manage to come out by carriers and ion channels.
 5.Additional enzymatic barrier bound to the wall is used to remove harmful molecules from the blood.
 6.There is also the efflux pump to extrude un-wanted fat-soluble molecules back into the blood.
 However, the barrier is not perfect. Harmful substances such as some viruses and bacteria can cross the barrier causing meningitis. The barrier may break down (by radiation, infection, hypertension, etc.) resulting in epilepsy, multiple sclerosis, and Alzheimer etc. The BBB also provide another important function by preventing excessive water and salts into the brain. Since the brain is contained within a rigid, bony skull, the raise in intracranial pressure by leaky blood vessel can be fatal (as in the cases of trauma or infection). Thus, the successful evolution of a complex brain depends on the development of the BBB. It exists in all vertebrates, and also in insects and cephalopod. In human the BBB is fully formed by the third month of gestation, and error in this process lead to defects such as spina bifida (incomplete closure of the embryonic neural tube).
