 1. 제품 설명 :: Cobra GT-e 1/8 EP 3.0 (#600048)

 2. 가격 :: 850,000원

 3. 쇼핑몰 주소 및 연락처 ::  (수입사 주소및 연락처)  www.serpent.co.kr   www.serpentkorea.co.kr

 4. 제품 상세 사진. :: (제품에 관한 주소 링크를 허용하지 않습니다!! 직접 찍어서 올려주시기 바랍니다,,)

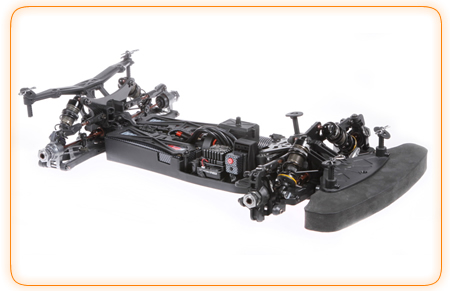

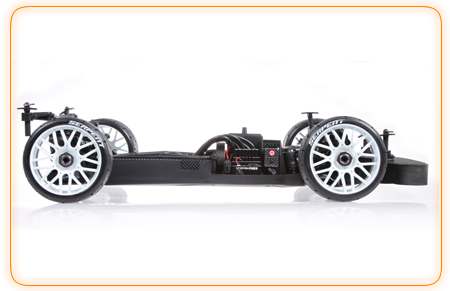

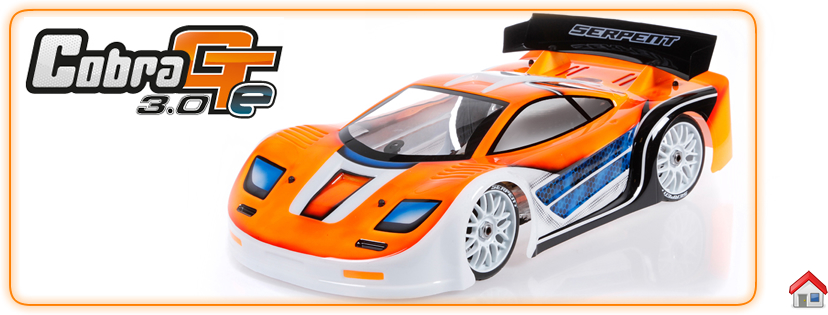

Serpent Cobra GTE  3.0 1/8 4wd Electric Powered
	Main new features New front front and front rear aluminium suspension holders New Alu c-hubs in 6 degree version New aluminium, uprights for new rear geometry New alu shockabsorber risers front and rear New 4.5mm carbon shocktowers front and rear

EXPLAINING THE NEW FEATURES: New front front and front rear aluminium suspension holders These are designed to change the piviot pin angle, so the lower wishbones will be more straight, which geomery suits onroad racing better. New Alu c-hubs in 6 degree version The new alu c-hubs are needed to make maximum use of the new pivit pin / wishbone angle.  CNC-machined from 7075 T6 alumnium, laser engraved  and black anodised units. New aluminium, uprights for new rear geometry To allow a better onorad geometry we desigend these new CNC machined aluminium uprights, black anodised and laser engraved. New alu shockabsorber risers front and rear  The durable machined alu shock-risers front and rear allow for a more onroad aimed angle of the shockabsorber creating more overall grip and more predictable cornering.  New carbon shocktowers front and rear The new 4.5mm lower carbon fibre shocktowers also accomodate the new shock angles, with a choice of 5 holes for further fine-tuning.

INTRODUCTION: The Serpent Cobra GT is the most popular brand in GT racing and its performance  is proven by many big racewins in the highly competitive race scene for GT’s in America.  The Cobra GT 3.0 is the latest development stage of the Cobra GT platform, which is running successfully for over 5 year with very small changes only.  Below we show the key updates to the GT to continue its strong performance  and famous durability.  The Cobra GTE is a combined design effort by Billy Easton and Michael Salven, in cooperation with our USA team-drivers Desoto and Morganti.

CHASSISPLATE: Chassisplate in  3mm  7075 T6 aluminium , with machined pockets to create flex and or make lighter. Kick-up angle on front as need due to the race-rules. Countersunk holes. Slots to locate the  front and rear suspension mounts precisely.  Angled sides to increase stiffness  Laser engraved Cobra GT logo.

BUMPER: Captured foam bumper set, with wide foam bumper and strong upper and lower bumper-plate

CHASSIS STIFFNERS:                                 Composite  stiffner front and rear, to give extra stiffness, but still allow some flex as needed.

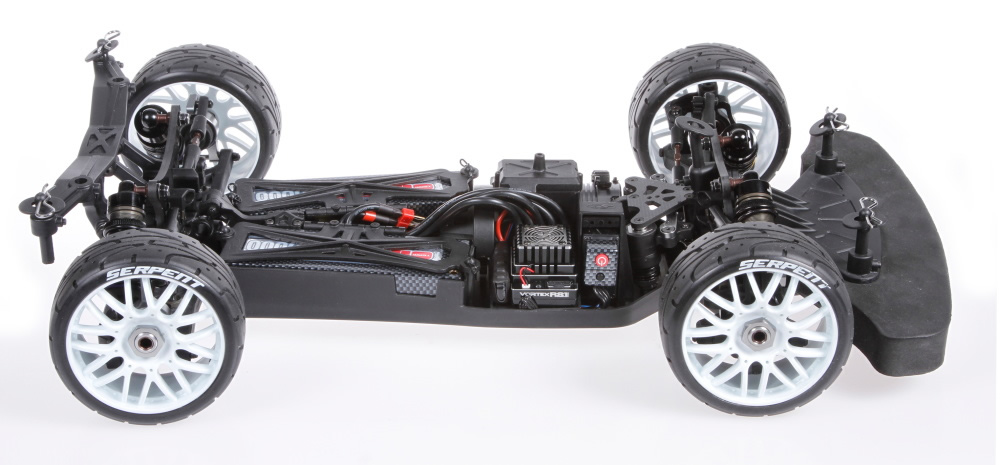

RADIO BOX:

Composite radiobox which offers space for the up-right steering-servo, the receiver and  sufficient space for the speed-controller.  The whole assembly including linkages can be taken off easily and fast in one go, when cleaning the car, or doing maintenance.

The main eyecatchers are the extremely low laydown longtudinal placed battery-packs at each side of the car, being part of the side-guards, securely fastened with a flip-lid, for easy and fast battery changes. The weight low in the car and in the right position, well balanced. The Lipo holders comply with ROAR legal packs / dimensions.

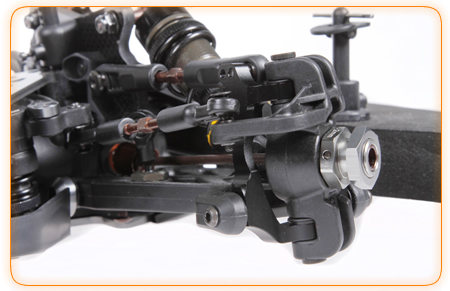

STEERING BLOCK ASSEMBLY: Composite steeringblocks combined with 10 dgr C-hubs  for precise steering. Spring steel wheel-axles with large size bearings 8x18x5 and 15x21x4 with precision threaded aluminum wheel-hubs with +3 offset. Flanged wheel nuts to guarantee that you will not lose a wheel nut in a race.

		SERVO ARMS AND LINKAGES: The servo arms have a splined insert to have the right fit per brand. The linkages run very clean and tight and are easy to access to modify settings.
SUSPENSION BRACKETS: Beautifully machined  7075 T6  suspension brackets in anodized, laser angraved. Precision fit for the nylon roll center inserts  and pivot balls / pins.  The GT 3.0 front suspension brackets make the pivot-pin and lower arm more horizontal, which improves handling and steering.

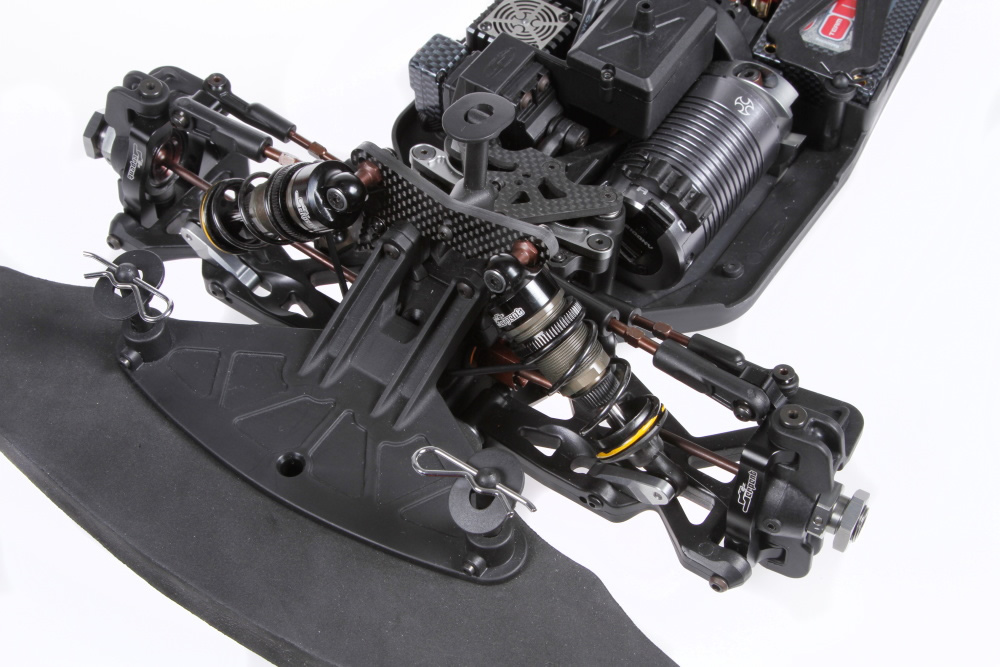

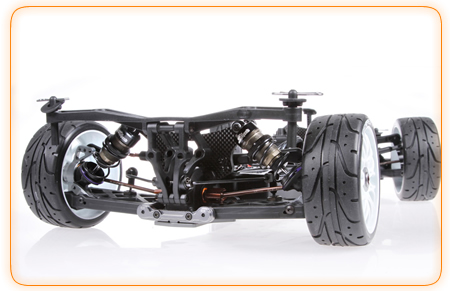

FRONT SUSPENSION:

Durable oversized  lower suspension arms in strong composite nylon. On the lower side the special downstops screws are mounted. The lower shock-mounting pins are secured with a small grubscrew from the bottom.

FRONT ANTI-ROLL BAR:

The ballraced front anti-roll bar  system, consist of a spring steel bend wire, which is guided through the diff-cases and run in ballraced steel adaptors.  The wire is linked to the lower suspension arm, with a captured adjustable threaded pivotball, for very precise and low friction  operation.

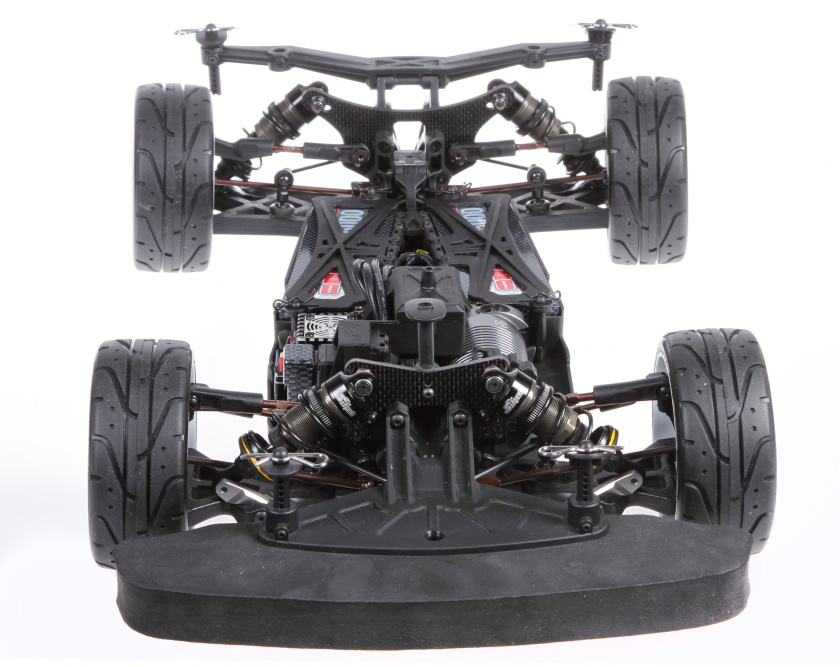

SHOCKTOWER AND BODYMOUNTS FRONT / ALU SHOCK RISERS:

new 4.5mm thick carbon shocktower with 5 upper positioning holes for the shocks and and 6 holes for roll-center positions. 1 centrally located adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops. The durable machined alu shock-risers in front allow for a more onroad aimed angle of the shockabsorber creating more overall grip and more predictable cornering.

ANGLED STEERING SYSTEM / SERVO SAVER:

The bell cranks are angled to reduce the angle of difference between the total caster and steering plane. Therefore you will have less bump steer and a truer steering Ackerman through the entire range of suspension

ACKERMANN PLATES:

With the design of the steering bell cranks when changing the Ackermann you will not need to adjust your steering tie rods. You simply will only need to adjust your end points on your radio.

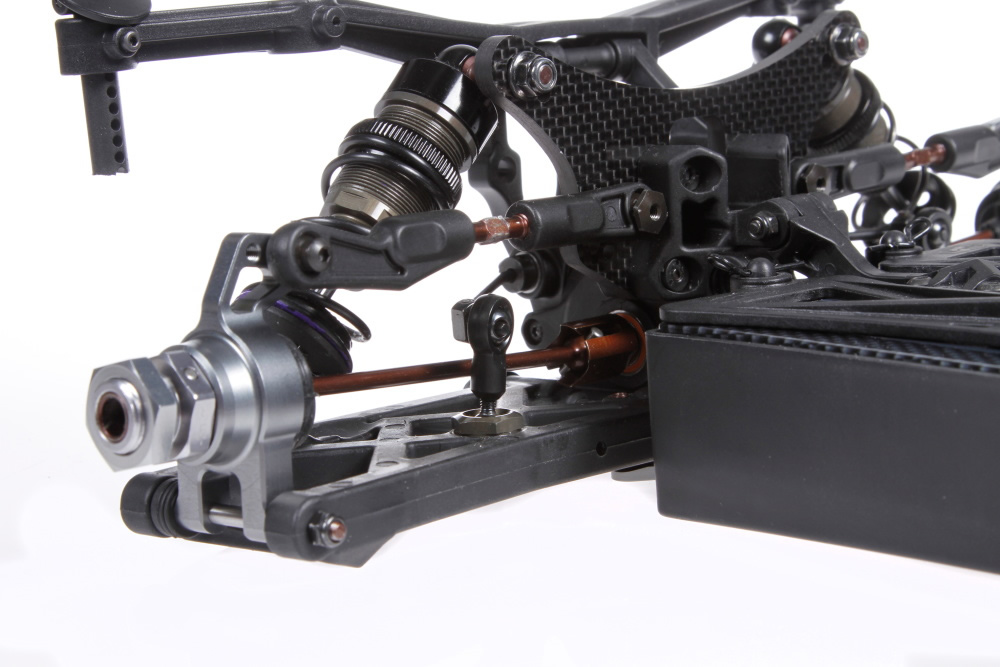

REAR UPRIGHTS ASSEMBLY:

New aluminium, grey anodised and laser engraved uprights with 3 upper roll-center positions. Strong steel track-rods with L/R threading and strong balljoints  to pre-set camber. Spring steel wheel-axles with large size bearings 8x16x5 and 13x19x4  with precision threaded aluminium wheel-hubs with +3 offset  . Rubber dustcovers in the rear to protect the cvd system and keep the lubrication inside. Flanged wheel nuts to guarantee that you will not loose a wheel nut in a race.

REAR ANTI-ROLL BAR: The ballraced front anti-roll bar  system, consist of a spring steel bend wire, which is guided through the diff-cases and runs in ballraced steel adaptors.  The wire is linked to the lower suspension arm, with a captured adjustable threaded pivotball, for very precise and low friction  operation.    REAR SUSPENSION ARMS: Durable oversized  lower suspension arms in strong composite nylon. On the lower side the special downstops screws are mounted. The lower shock-mounting pins are secured with a small grubscrew from the bottom.
		CAPTURED PIVOT PINS, BALLS AND BOLTED HINGE PINS: All spring-steel hinge pins are either captured or bolted in place and made in spring-steel quality. This insures your chances to finish an hour long main event, while battling for the lead.  This relieves stress on the hinge pin when adjusting the kick up, or anti squat. Your pin is free to rotate to any angle without binding.
SHOCK ABSORBERS RCM BIG-BORE 16MM: Hard Teflon coated threaded shockbodies with 4mm shock-rods. Black anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings inside.  Shocks use  large diameter membrames and large diameter o-rings  and bushings to create a  supersmooth  and leak-proof package.  Large diameter pistons are held in place by a nut on the polished shock-rods tops. Open type spring retainer to let dirt out easy.      RCM SHOCK SPRINGS: Short type colorcoded shock springs are supplied for the 1st standard set-up  Springs are grinded flat top and bottom, and checked individually for tension and length.

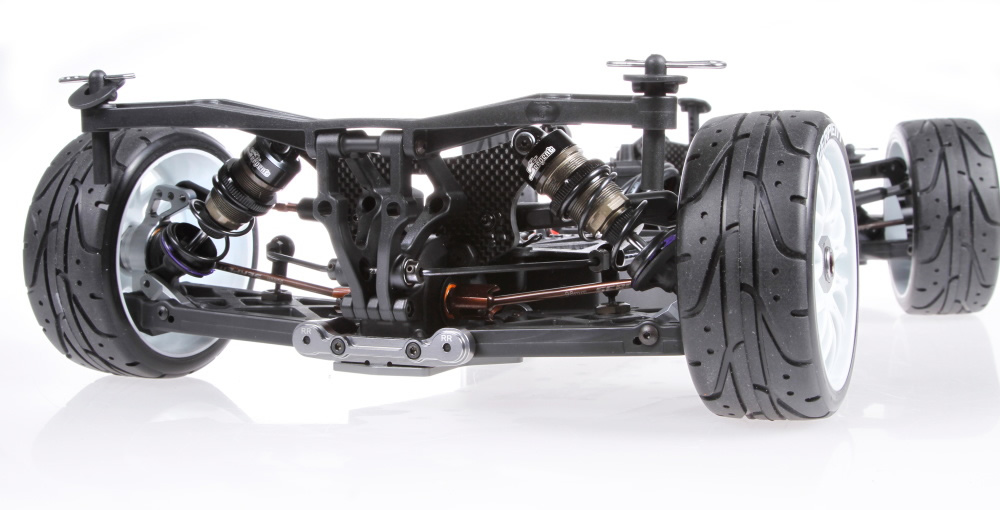

REAR SHOCK TOWER AND ALU SHOCK-RISERS:

New 4.5mm thick carbon shocktower, integrated into the rear section for extra stiffness,  with 5 upper positioning holes for the shocks and 6 holes for roll-center positions. The durable machined alu shock-risers in the rear allow for a more onroad aimed angle of the shockabsorber creating more overall grip and more predictable cornering.

WINGMOUNT AND BODYMOUNTS REAR:

Composite rear wing, with strong nylon adjustable rear bodymounts on wide body-support bridge located far enough to the rear, to support the bodies in best way.

FRONT AND REAR CVD-SETS: Both front and rear captured  driveshafts are being used with CVD system.  Durable yet light  spring steel engraved driveshafts with hard steel pins.

MOTOR MOUNT: Machined 7075 T6 aluminium  motor-mount with one-screw fixation and easy slider system.  Flex-free and very strong motormount. The space for the motor allows a maximum motor-length of 68mm, which covers most widely used motors.

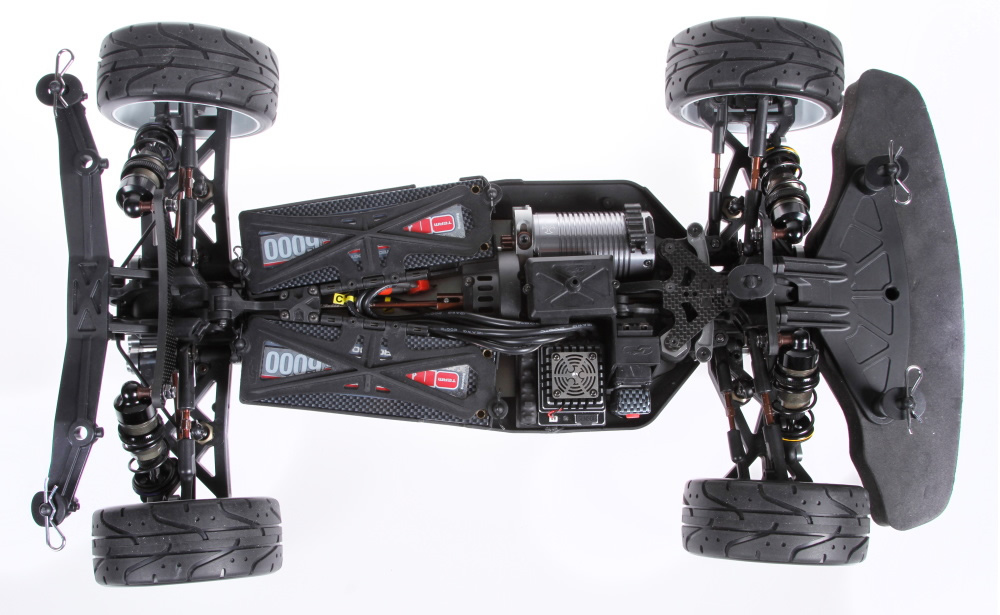

COMPACT GEAR DIFFERENTIALS:

Very compact gear differentials with very smooth metal sintered gears, and steel shaft. Perfect sealing case with special gasket and o-rings. Very light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector running in 2 oversized bearings 8x19x6 and ballbearing-13x19x4.

SPRING STEEL TRANSMISSION PARTS:

The front and rear thin but strong spring steel cardan shafts connect the differentials with the gearbox section.

OILS AND GREASE:

The shock-oil, diff oil and some grease is supplied to meet the standard set-up.

MANUAL AND SETUP:

Full color online manual and USB stick version with easy to follow assembly steps, exploded views for easy spares ordering, a blank and standard set-up sheet for a good start set-up.

DECALS:

Black and white promo body-decals ; Serpent generic and Cobra GT ones.

PACKING:

Parts are packed according to the  steps explained in the manual.

SERVICE AND SUPPORT:

The Serpent distributor, dealer or agent is your source for more info, but also the Serpent website, Facebook-sites and the Youtube channel provides lots of information.

NEEDED TO COMPLETE THE CAR:

-   radio and receiver
-   electric motor
-   speedcontroller
-   Lipo battery packs x 2
-   wheels and tyres
-   body and wing
-   paint

OPTION PARTS:
Wheel-nut 17mm flanged/light	Steeringblock Alu 0-Deg L+R	Steeringblock L+R V2 alu	Spring Fr/Rr Black 811GT 37lbs
Servo saver alu coated	Track rod M5x53 titanium	Servo lever steering	Ackermann set Cobra S811

Serpent Cobra GTE  3.0 1/8 4wd Electric Powered
	Main new features New front front and front rear aluminium suspension holders New Alu c-hubs in 6 degree version New aluminium, uprights for new rear geometry New alu shockabsorber risers front and rear New 4.5mm carbon shocktowers front and rear

EXPLAINING THE NEW FEATURES: New front front and front rear aluminium suspension holders These are designed to change the piviot pin angle, so the lower wishbones will be more straight, which geomery suits onroad racing better. New Alu c-hubs in 6 degree version The new alu c-hubs are needed to make maximum use of the new pivit pin / wishbone angle.  CNC-machined from 7075 T6 alumnium, laser engraved  and black anodised units. New aluminium, uprights for new rear geometry To allow a better onorad geometry we desigend these new CNC machined aluminium uprights, black anodised and laser engraved. New alu shockabsorber risers front and rear  The durable machined alu shock-risers front and rear allow for a more onroad aimed angle of the shockabsorber creating more overall grip and more predictable cornering.  New carbon shocktowers front and rear The new 4.5mm lower carbon fibre shocktowers also accomodate the new shock angles, with a choice of 5 holes for further fine-tuning.

INTRODUCTION: The Serpent Cobra GT is the most popular brand in GT racing and its performance  is proven by many big racewins in the highly competitive race scene for GT’s in America.  The Cobra GT 3.0 is the latest development stage of the Cobra GT platform, which is running successfully for over 5 year with very small changes only.  Below we show the key updates to the GT to continue its strong performance  and famous durability.  The Cobra GTE is a combined design effort by Billy Easton and Michael Salven, in cooperation with our USA team-drivers Desoto and Morganti.

CHASSISPLATE: Chassisplate in  3mm  7075 T6 aluminium , with machined pockets to create flex and or make lighter. Kick-up angle on front as need due to the race-rules. Countersunk holes. Slots to locate the  front and rear suspension mounts precisely.  Angled sides to increase stiffness  Laser engraved Cobra GT logo.

BUMPER: Captured foam bumper set, with wide foam bumper and strong upper and lower bumper-plate

CHASSIS STIFFNERS:                                 Composite  stiffner front and rear, to give extra stiffness, but still allow some flex as needed.

RADIO BOX:

Composite radiobox which offers space for the up-right steering-servo, the receiver and  sufficient space for the speed-controller.  The whole assembly including linkages can be taken off easily and fast in one go, when cleaning the car, or doing maintenance.

The main eyecatchers are the extremely low laydown longtudinal placed battery-packs at each side of the car, being part of the side-guards, securely fastened with a flip-lid, for easy and fast battery changes. The weight low in the car and in the right position, well balanced. The Lipo holders comply with ROAR legal packs / dimensions.

STEERING BLOCK ASSEMBLY: Composite steeringblocks combined with 10 dgr C-hubs  for precise steering. Spring steel wheel-axles with large size bearings 8x18x5 and 15x21x4 with precision threaded aluminum wheel-hubs with +3 offset. Flanged wheel nuts to guarantee that you will not lose a wheel nut in a race.

		SERVO ARMS AND LINKAGES: The servo arms have a splined insert to have the right fit per brand. The linkages run very clean and tight and are easy to access to modify settings.
SUSPENSION BRACKETS: Beautifully machined  7075 T6  suspension brackets in anodized, laser angraved. Precision fit for the nylon roll center inserts  and pivot balls / pins.  The GT 3.0 front suspension brackets make the pivot-pin and lower arm more horizontal, which improves handling and steering.

FRONT SUSPENSION:

Durable oversized  lower suspension arms in strong composite nylon. On the lower side the special downstops screws are mounted. The lower shock-mounting pins are secured with a small grubscrew from the bottom.

FRONT ANTI-ROLL BAR:

The ballraced front anti-roll bar  system, consist of a spring steel bend wire, which is guided through the diff-cases and run in ballraced steel adaptors.  The wire is linked to the lower suspension arm, with a captured adjustable threaded pivotball, for very precise and low friction  operation.

SHOCKTOWER AND BODYMOUNTS FRONT / ALU SHOCK RISERS:

new 4.5mm thick carbon shocktower with 5 upper positioning holes for the shocks and and 6 holes for roll-center positions. 1 centrally located adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops. The durable machined alu shock-risers in front allow for a more onroad aimed angle of the shockabsorber creating more overall grip and more predictable cornering.

ANGLED STEERING SYSTEM / SERVO SAVER:

The bell cranks are angled to reduce the angle of difference between the total caster and steering plane. Therefore you will have less bump steer and a truer steering Ackerman through the entire range of suspension

ACKERMANN PLATES:

With the design of the steering bell cranks when changing the Ackermann you will not need to adjust your steering tie rods. You simply will only need to adjust your end points on your radio.

REAR UPRIGHTS ASSEMBLY:

New aluminium, grey anodised and laser engraved uprights with 3 upper roll-center positions. Strong steel track-rods with L/R threading and strong balljoints  to pre-set camber. Spring steel wheel-axles with large size bearings 8x16x5 and 13x19x4  with precision threaded aluminium wheel-hubs with +3 offset  . Rubber dustcovers in the rear to protect the cvd system and keep the lubrication inside. Flanged wheel nuts to guarantee that you will not loose a wheel nut in a race.

REAR ANTI-ROLL BAR: The ballraced front anti-roll bar  system, consist of a spring steel bend wire, which is guided through the diff-cases and runs in ballraced steel adaptors.  The wire is linked to the lower suspension arm, with a captured adjustable threaded pivotball, for very precise and low friction  operation.    REAR SUSPENSION ARMS: Durable oversized  lower suspension arms in strong composite nylon. On the lower side the special downstops screws are mounted. The lower shock-mounting pins are secured with a small grubscrew from the bottom.
		CAPTURED PIVOT PINS, BALLS AND BOLTED HINGE PINS: All spring-steel hinge pins are either captured or bolted in place and made in spring-steel quality. This insures your chances to finish an hour long main event, while battling for the lead.  This relieves stress on the hinge pin when adjusting the kick up, or anti squat. Your pin is free to rotate to any angle without binding.
SHOCK ABSORBERS RCM BIG-BORE 16MM: Hard Teflon coated threaded shockbodies with 4mm shock-rods. Black anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings inside.  Shocks use  large diameter membrames and large diameter o-rings  and bushings to create a  supersmooth  and leak-proof package.  Large diameter pistons are held in place by a nut on the polished shock-rods tops. Open type spring retainer to let dirt out easy.      RCM SHOCK SPRINGS: Short type colorcoded shock springs are supplied for the 1st standard set-up  Springs are grinded flat top and bottom, and checked individually for tension and length.

REAR SHOCK TOWER AND ALU SHOCK-RISERS:

New 4.5mm thick carbon shocktower, integrated into the rear section for extra stiffness,  with 5 upper positioning holes for the shocks and 6 holes for roll-center positions. The durable machined alu shock-risers in the rear allow for a more onroad aimed angle of the shockabsorber creating more overall grip and more predictable cornering.

WINGMOUNT AND BODYMOUNTS REAR:

Composite rear wing, with strong nylon adjustable rear bodymounts on wide body-support bridge located far enough to the rear, to support the bodies in best way.

FRONT AND REAR CVD-SETS: Both front and rear captured  driveshafts are being used with CVD system.  Durable yet light  spring steel engraved driveshafts with hard steel pins.

MOTOR MOUNT: Machined 7075 T6 aluminium  motor-mount with one-screw fixation and easy slider system.  Flex-free and very strong motormount. The space for the motor allows a maximum motor-length of 68mm, which covers most widely used motors.

COMPACT GEAR DIFFERENTIALS:

Very compact gear differentials with very smooth metal sintered gears, and steel shaft. Perfect sealing case with special gasket and o-rings. Very light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector running in 2 oversized bearings 8x19x6 and ballbearing-13x19x4.

SPRING STEEL TRANSMISSION PARTS:

The front and rear thin but strong spring steel cardan shafts connect the differentials with the gearbox section.

OILS AND GREASE:

The shock-oil, diff oil and some grease is supplied to meet the standard set-up.

MANUAL AND SETUP:

Full color online manual and USB stick version with easy to follow assembly steps, exploded views for easy spares ordering, a blank and standard set-up sheet for a good start set-up.

DECALS:

Black and white promo body-decals ; Serpent generic and Cobra GT ones.

PACKING:

Parts are packed according to the  steps explained in the manual.

SERVICE AND SUPPORT:

The Serpent distributor, dealer or agent is your source for more info, but also the Serpent website, Facebook-sites and the Youtube channel provides lots of information.

NEEDED TO COMPLETE THE CAR:

-   radio and receiver
-   electric motor
-   speedcontroller
-   Lipo battery packs x 2
-   wheels and tyres
-   body and wing
-   paint

OPTION PARTS:
Wheel-nut 17mm flanged/light	Steeringblock Alu 0-Deg L+R	Steeringblock L+R V2 alu	Spring Fr/Rr Black 811GT 37lbs
Servo saver alu coated	Track rod M5x53 titanium	Servo lever steering	Ackermann set Cobra S811
