GstarCAD | GstarCAD - 이미 작성된 치수문자 크기 변경하기

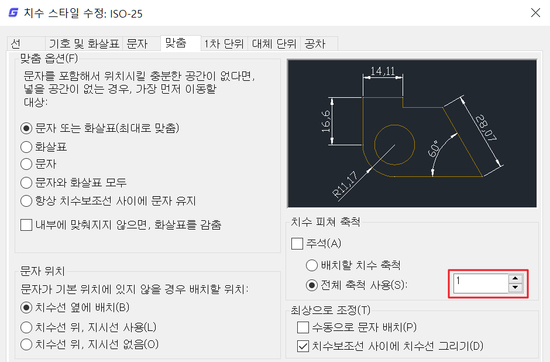

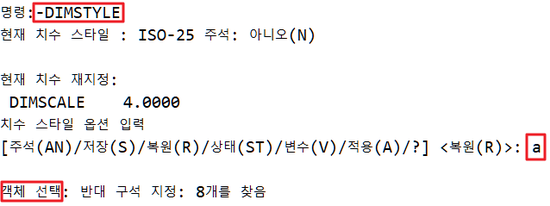

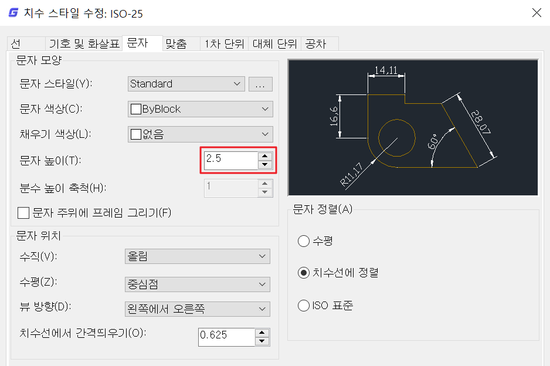

도면 스케일 변경 등의 이유로 이미 기입되어 있는 치수 문자 크기를 변경하고 싶을 때, 두 가지 경우로 나누어 각 방법을 이용할 수 있습니다. 측정된 길이, 좌표 및 각도는 영향을 받지 않습니다. 먼저 치수스타일 관리자(DIMSTY)를 실행하여 스타일 목록을 확인합니다. 단일항목으로 이루어짐 : 치수스타일을 수정하여 바로 문자 크기를 변경할 수 있습니다. ☞ 1번 방법하위 항목인 <스타일 재지정>이 생성됨 : DIMTXT나 DIMSCALE 등의 명령으로 치수 스타일을 변경하면 <스타일 재지정>이라는 하위 항목이 생성되며, 치수 객에 변경한 변수 값이 고정됩니다.  ☞ 2번 방법 <table border="0" cellpadding="0" cellspacing="0" class="__se_tbl" style="border-width: 1px 1px 0px 0px; border-top-style: solid; border-right-style: solid; border-top-color: rgb(204, 204, 204); border-right-color: rgb(204, 204, 204); border-image: initial; border-left-style: initial; border-left-color: initial; border-bottom-style: initial; border-bottom-color: initial;"><tbody><tr><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 369px; height: 18px;">1번에 해당하는 경우</td><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 369px; height: 18px;">2번에 해당하는 경우</td></tr><tr><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 369px; height: 18px;"> <img id="se_object_1581904882132" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMjY5%2FMDAxNTgxODczMTg2MDQ2.LYzeFtGt_s9T2ZoV5lgF28wFInc0Emy6CoPvExLuh4Eg.6s2gqzf9tlA54thvmA_Doj45wq4F0rNhgvI37WVGASsg.PNG.mdsol%2F1.png" class="__se_object" s_type="attachment" s_subtype="photo" width="350" height="227" imgqe="true" jsonvalue="%7B%7D" rwidth="350px" rheight="227px" style="width: 350px; height: 227.5px; border-color: rgb(0, 0, 0);"> </td><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 369px; height: 18px;"><img id="se_object_1581904919994" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMjU4%2FMDAxNTgxODczMjEzMDA2.jLlXSwlOKTPKwABS0lvXeIYxToBd2_HDcqZ9ovyQt2wg.5E8-CSL8_zNYGgegoiSFY-F2HjP89sK1RJlrmsXMr54g.PNG.mdsol%2F2.png" class="__se_object" s_type="attachment" s_subtype="photo" width="350" height="230" imgqe="true" jsonvalue="%7B%7D" rwidth="350px" rheight="230px" style="width: 350px; height: 230.781px; border-color: rgb(0, 0, 0);"></td></tr></tbody></table> ※주의: 반드시 문자스타일(ST)의 높이가 0으로 설정되어 있어야 합니다. <img id="se_object_1581904922109" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMTEx%2FMDAxNTgxODczNDA4MjEy.14hy5Tfy0b5A5ewmJgroAl9NhJU6FNnuLgWrUW6gRgog.wrJjcAEYruV48g5D5CcFTlkiGH4FjdfG5yPQh10bISIg.PNG.mdsol%2F4.png" class="__se_object" s_type="attachment" s_subtype="photo" width="550" height="362" border="1" imgqe="true" jsonvalue="%7B%7D" rwidth="550px" rheight="362px" style="width: 550px; height: 362.083px; border-color: rgb(0, 0, 0); border-width: 1px; border-style: solid;"> ↓ 치수스타일 수정에서 연결되는 문자스타일 <img id="se_object_1581904935386" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMTI0%2FMDAxNTgxODczMzA5MjQ1.bH1mLR_Ypr7pxuz_oR4B97QV62ZDnnrmbeP7rRYgdnkg.btbkrraGBbYkGMmrxoXKVUn0yxZVCMSmiR3Kne6zpiMg.PNG.mdsol%2F3.png" class="__se_object" s_type="attachment" s_subtype="photo" width="550" height="306" border="1" imgqe="true" jsonvalue="%7B%7D" rwidth="550px" rheight="306px" style="width: 550px; height: 306px; border-color: rgb(0, 0, 0); border-width: 1px; border-style: solid;">  문자스타일에 0외의 값이 지정될 경우 해당 값으로 고정되며, 아래와 같이 치수스타일 창에서 문자 높이가 비활성화됩니다. 이 경우 모든 방법을 사용할 수 없습니다. <img id="se_object_1581904952257" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMjM0%2FMDAxNTgxODczNjU5NTQw.3vna2HRcNdYswA_nTMQTdg7ZP7dWHy7TbHc2aOsOdRog.LeroJH6Fe6EveTRuMQaZBmxv_fe5pyKAitv49YlxypUg.PNG.mdsol%2F5.png" class="__se_object" s_type="attachment" s_subtype="photo" width="550" height="363" border="1" imgqe="true" jsonvalue="%7B%7D" rwidth="550px" rheight="363px" style="width: 550px; height: 363px; border-color: rgb(0, 0, 0); border-width: 1px; border-style: solid;">  ----------------------------------------------------------------------------------------1. 스타일 목록이 단일항목일 때 1) 치수스타일 관리자(DIMSTY)를 실행합니다.<img id="se_object_1581904911155" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMjA0%2FMDAxNTgxODc0MTA2Mzg3.Oa9w7ZDg1jUxrmpb_1Bx6Xj0s22QB4ljI86P2wdWQPMg.25-KIHx_YQebLXBqpZQfKkWxHsqmfVLgui4NcRdnn2kg.PNG.mdsol%2F6.png" class="__se_object" s_type="attachment" s_subtype="photo" width="245" height="28" imgqe="true" jsonvalue="%7B%7D" rwidth="245px" rheight="28px" style="width: 245px; height: 28px;">  2) 목록에서 수정하려는 스타일을 선택하고 수정을 누릅니다. <img id="se_object_1581904896664" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMTc4%2FMDAxNTgxODc0MTA2NzY1.Bh5H5cdChkfEqR_V9NrQUlkMQ3s8i0mntgILbcJ781og.W3Hep7pmtZcWStAyWsXaAv84Zcd918_4xiNc2INVcEsg.PNG.mdsol%2F7.png" class="__se_object" s_type="attachment" s_subtype="photo" width="550" height="354" border="1" imgqe="true" jsonvalue="%7B%7D" rwidth="550px" rheight="354px" style="font-family: 돋움, Dotum; font-size: 14.6667px; width: 550px; height: 354px; border-color: rgb(0, 0, 0); border-width: 1px; border-style: solid;"> 3) 문자 탭에서 문자 높이를 변경하거나, 맞춤 탭에서 축척 비율을 변경합니다. <img id="se_object_1581904915606" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMTAz%2FMDAxNTgxODc0MTA3MjA4.A-r7knWR08DoYkfhY3ZrihIxtEygeiWKLHZvGbT94Xsg.spR8965Rq3WWJPcjXR-yqwEew7L3P6OiSjBP8HAgG2Mg.PNG.mdsol%2F8.png" class="__se_object" s_type="attachment" s_subtype="photo" width="550" height="366" border="1" imgqe="true" jsonvalue="%7B%7D" rwidth="550px" rheight="366px" style="font-family: 돋움, Dotum; font-size: 14.6667px; width: 550px; height: 366px; border-color: rgb(0, 0, 0); border-width: 1px; border-style: solid;"> <img id="se_object_1581904975337" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMjMg%2FMDAxNTgxODc0MTA4MjE2.jVXhPRJ3oaAUs1pptDHi1uzK-0pcs3FHBJuk6z7GiPsg.Okr0a9j3TPJfl6ntZJcQg9gIyeGIOJgR1tIkgoeWP_kg.PNG.mdsol%2F8-2.png" class="__se_object" s_type="attachment" s_subtype="photo" width="550" height="362" border="1" imgqe="true" jsonvalue="%7B%7D" rwidth="550px" rheight="362px" style="font-family: 돋움, Dotum; font-size: 14.6667px; width: 550px; height: 362px; border-color: rgb(0, 0, 0); border-width: 1px; border-style: solid;"> 4) 확인 → 닫기를 누르면 수정한 치수스타일이 도면 전체에 일괄적으로 적용됩니다. <table border="0" cellpadding="0" cellspacing="0" class="__se_tbl" style="border-width: 1px 1px 0px 0px; border-top-style: solid; border-right-style: solid; border-top-color: rgb(204, 204, 204); border-right-color: rgb(204, 204, 204); border-image: initial; border-left-style: initial; border-left-color: initial; border-bottom-style: initial; border-bottom-color: initial;"><tbody><tr><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 560px; height: 331px;"> <img id="se_object_1581904949494" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMTgg%2FMDAxNTgxODc0MTA4NTQ0.7X5srZKCoxzoLwnVRzIOj1lyy2LJGaUbtn-NzoNs3kwg.66r553kz99iMD-dMr_NfotXm5ji8LkEFWjQjz_dtypgg.PNG.mdsol%2F9-1.png" class="__se_object" s_type="attachment" s_subtype="photo" width="500" height="312" imgqe="true" jsonvalue="%7B%7D" rwidth="500px" rheight="312px" style="font-family: 돋움, Dotum; font-size: 14.6667px; width: 500px; height: 312.727px; border-color: rgb(0, 0, 0);"></td><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 468px; height: 331px;"> 원본</td></tr><tr><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 560px; height: 328px;"> <img id="se_object_1581904886229" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMTYz%2FMDAxNTgxODc0MTA4OTI0.V7tL5ESGHVlVQtG8PMj9EwaMqO353LLJtlf_a53cJ0Ug.4tWRZicm6o71ChegdXBs2qA4byFmvsH3KlFevOclHewg.PNG.mdsol%2F9-2.png" class="__se_object" s_type="attachment" s_subtype="photo" width="500" height="310" imgqe="true" jsonvalue="%7B%7D" rwidth="500px" rheight="310px" style="font-family: 돋움, Dotum; font-size: 14.6667px; width: 500px; height: 310px; border-color: rgb(0, 0, 0);"></td><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 468px; height: 328px;"> DIMTXT 변경시</td></tr><tr><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 560px; height: 328px;"> <img id="se_object_1581904962739" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMzIg%2FMDAxNTgxODc0MTA5Mjg1.-1abyyCT3U1xfWl0S0MW48XBR0Rhhjs2ZsmVjCtxBYAg.qFgcttl8fyVq1a_0YX0dxFZ1TroL8zZEe7V06Won2l4g.PNG.mdsol%2F9-3.png" class="__se_object" s_type="attachment" s_subtype="photo" width="500" height="310" imgqe="true" jsonvalue="%7B%7D" rwidth="500px" rheight="310px" style="font-family: 돋움, Dotum; font-size: 14.6667px; width: 500px; height: 310px; border-color: rgb(0, 0, 0);"></td><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 468px; height: 328px;">  DIMSCALE 변경시(화살표 축척까지 변경됨)</td></tr></tbody></table> 자세한 내용은 아래 동영상을 참고해주십시오. <iframe src="https://www.youtube.com/embed/rfdKMeSgDU4" width="640" height="360" frameborder="0" allowfullscreen=""></iframe> 2. 스타일 목록에 <스타일 재지정>이 생성되어 있을 때 이때 원래 스타일을 선택하여 수정하면 변수 값이 입력된 치수는 변경되지 않고, <스타일 재지정>을 선택하여 수정하면 기존 치수에는 아무 변화가 없으며 이후 작성될 치수부터 적용됩니다. 즉, 치수스타일 관리자에서 한번에 변경하기 힘듭니다. 따라서 아래 방법들을 사용하여야 합니다.    <ul><li>간단하게 작성되어 치수 객체 선택이 가능할 때 </li></ul>① 치수스타일 관리자에서 수정하거나 DIMTXT 및 DIMSCALE로 문자 크기를 변경합니다. <img id="se_object_1581904946188" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMjM2%2FMDAxNTgxODc1Njg1NjYy.PveBxCsnIc49842nXOG-yqrRVxP2FJH-IzKN1Vknwoog.Nxckddv8jLZ7Zu3G7MLMcUP3UT2ygPE8PTuqE7xL69kg.PNG.mdsol%2F1.png" class="__se_object" s_type="attachment" s_subtype="photo" width="374" height="48" border="1" imgqe="true" jsonvalue="%7B%7D" rwidth="374px" rheight="48px" style="width: 374px; height: 48px; border-color: rgb(0, 0, 0); border-width: 1px; border-style: solid;">  ② 치수 업데이트 기능을 실행합니다. 치수 업데이트는 아이콘은 존재하나 정의된 명령어가 없습니다.    ◆ 메뉴 및 툴바의 아이콘을 클릭 후 치수 선택<img id="se_object_1581904889981" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfNTAg%2FMDAxNTgxODc1Njg1OTgz.SKU72NqOrdN1cUp12a9URP6oVdvOWWUvgJAviqxvimcg.tFAwYKDgMd72wOHJ1n89GLwDg0hi_8Gw18anuZ3scCMg.PNG.mdsol%2F2.png" class="__se_object" s_type="attachment" s_subtype="photo" width="200" height="706" border="1" imgqe="true" jsonvalue="%7B%7D" rwidth="200px" rheight="706px" style="font-family: 돋움, Dotum; font-size: 14.6667px; width: 200px; height: 706.723px; border-color: rgb(0, 0, 0); border-width: 1px; border-style: solid; clear: both;"> <img id="se_object_1581904905035" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfNjYg%2FMDAxNTgxODc1Njg2NDUx.6gUvMZH33BIdFmngCIJMdhY1RQrcIBbe1xRKwDKmKZMg.R8zraf7Di5yAIrRB3Hwy3925P1pZG9_5TJtwwZbFi1Mg.PNG.mdsol%2F3.png" class="__se_object" s_type="attachment" s_subtype="photo" width="400" height="191" border="1" imgqe="true" jsonvalue="%7B%7D" rwidth="400px" rheight="191px" style="font-family: 돋움, Dotum; font-size: 14.6667px; width: 400px; height: 191.144px; border-color: rgb(0, 0, 0); border-width: 1px; border-style: solid;">         ◆ 명령어 입력) '-dimstyle' →'a' → 치수 선택 <img id="se_object_1581904963018" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfNTAg%2FMDAxNTgxODc1Njg2ODM0.wAGuVx0ZeOwMwBgOOP6JSwPIXlEJMjWT5LVk1behdfgg.WiPCzbZpSSEdSYGIGsp_oC_3p5NwQwO3ZtuiPmScnyMg.PNG.mdsol%2F5.png" class="__se_object" s_type="attachment" s_subtype="photo" width="550" height="206" border="1" imgqe="true" jsonvalue="%7B%7D" rwidth="550px" rheight="206px" style="font-family: 돋움, Dotum; font-size: 14.6667px; width: 550px; height: 206px; border-color: rgb(0, 0, 0); border-width: 1px; border-style: solid;"> <table border="0" cellpadding="0" cellspacing="0" class="__se_tbl" style="border-width: 1px 1px 0px 0px; border-top-style: solid; border-right-style: solid; border-top-color: rgb(204, 204, 204); border-right-color: rgb(204, 204, 204); border-image: initial; border-left-style: initial; border-left-color: initial; border-bottom-style: initial; border-bottom-color: initial;"><tbody><tr><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 173px; height: 242px;"> 치수 업데이트 전</td><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 565px; height: 242px;"> <img id="se_object_1581904879074" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMTIz%2FMDAxNTgxODc2MDUzMzUy.20lE071n0mM5U7VLL5QEA636WoXXbmLQ-5ie1pdwA-cg.QbudVXOmwpWBZaFzoE_KIXNfagkvQIMW6DAzvKf9macg.PNG.mdsol%2F0.png" class="__se_object" s_type="attachment" s_subtype="photo" width="550" height="224" imgqe="true" jsonvalue="%7B%7D" rwidth="550px" rheight="224px" style="width: 550px; height: 224.4px; border-color: rgb(0, 0, 0);"></td></tr><tr><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 173px; height: 253px;"> 치수 업데이트 후</td><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 565px; height: 253px;"> <img id="se_object_1581904915491" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMTIx%2FMDAxNTgxODc2MDUzNjg3.GdF9A5HE9VNt_B7Am_aoI3T-hsd8z6yy0ZwDSFbhguYg.YFIejErqh02eaI-WTw-mc7CE-tCAzFow0WuVqGKdbJQg.PNG.mdsol%2F4.png" class="__se_object" s_type="attachment" s_subtype="photo" width="550" height="235" imgqe="true" jsonvalue="%7B%7D" rwidth="550px" rheight="235px" style="width: 550px; height: 235.4px; border-color: rgb(0, 0, 0);"></td></tr></tbody></table> 자세한 내용은 아래 동영상을 참고해주십시오. <iframe src="https://www.youtube.com/embed/WrnvOlgkGgw" width="640" height="360" frameborder="0" allowfullscreen=""></iframe> <ul><li>도면이 여러 치수스타일로 복잡하게 이루어져 있을 때 </li></ul>치수 업데이트는 무조건 현재 치수 스타일이 기준이므로 도면이 복잡한 경우, 다른 치수스타일까지 현재 치수 스타일로 대체되는 문제가 발생할 수 있습니다. 따라서 원하는 치수만 선택하여 변경합니다.  ① 명령어 QSELECT를 입력합니다. <img id="se_object_1581904963858" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMjIx%2FMDAxNTgxODc3NzE5NDUz.sYObn7-7q59aj11hBGbVWHWJI6oqFCo98fJtsjXTRIYg.PWENNssTaUNPrAqm5DLu-GuUySYMbfyDthCfNeARVNwg.PNG.mdsol%2F1.png" class="__se_object" s_type="attachment" s_subtype="photo" width="138" height="30" imgqe="true" jsonvalue="%7B%7D" rwidth="138px" rheight="30px" style="width: 138px; height: 30px; border-color: rgb(0, 0, 0);"> ② 회전된 치수 - 치수스타일을 선택합니다. 만약 <스타일 재지정>으로 여러 번의 치수를 변경했을 때는 구별되는 항목을 선택합니다. 예시는 문자색상으로 구별되는 경우입니다. <img id="se_object_1581904938659" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfNTAg%2FMDAxNTgxODc3NzE5OTM4._x7cIt_Oc57YKBecSmW6D9crPa40I1LKfDW1I0b-wSEg.4xx6UbfDH8Zj0GdjofRRyXpFTI5Rx8RdwXY-kaA6lRcg.PNG.mdsol%2F2.png" class="__se_object" s_type="attachment" s_subtype="photo" width="400" height="480" border="1" imgqe="true" jsonvalue="%7B%7D" rwidth="400px" rheight="480px" style="width: 400px; height: 480.727px; border-color: rgb(0, 0, 0); border-width: 1px; border-style: solid;"> ③ 치수가 선택된 상태에서 특성 창(Ctrl+1)을 띄우고, 선택된 치수 문자 크기를 일괄 변경합니다. <img id="se_object_1581904916302" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMzkg%2FMDAxNTgxODc3NzIwNTQz.3KOBf9dtqACcWui5_WoQ1QrG7fo6luDPKhDgta2tf1wg.XUkF3Hzc4fwiPg6u_MGgrLhSgOHSo2mLgZ2bhm6Zv4Ug.PNG.mdsol%2F3.png" class="__se_object" s_type="attachment" s_subtype="photo" width="300" height="634" border="1" imgqe="true" jsonvalue="%7B%7D" rwidth="300px" rheight="634px" style="width: 300px; height: 634.884px; border-color: rgb(0, 0, 0); border-width: 1px; border-style: solid;">  <table border="0" cellpadding="0" cellspacing="0" class="__se_tbl" style="border-width: 1px 1px 0px 0px; border-top-style: solid; border-right-style: solid; border-top-color: rgb(204, 204, 204); border-right-color: rgb(204, 204, 204); border-image: initial; border-left-style: initial; border-left-color: initial; border-bottom-style: initial; border-bottom-color: initial;"><tbody><tr><td style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 369px; height: 18px;"> <img id="se_object_1581904953805" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMjUy%2FMDAxNTgxODc3NzIwOTEw.FBrWvwHKyPDHS4ZR8ZiMSLLmK61xMM3DrorM0pz4k7Ug.MB5Vt9LqOA2gvPdqbpVZzuSgpSxXIQJv0Yvq7jMzn04g.PNG.mdsol%2F4.png" class="__se_object" s_type="attachment" s_subtype="photo" width="550" height="228" imgqe="true" jsonvalue="%7B%7D" rwidth="550px" rheight="228px" style="width: 550px; height: 228px; border-color: rgb(0, 0, 0);"></td><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 369px; height: 18px;"> 원본</td></tr><tr><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 369px; height: 18px;"> <img id="se_object_1581904887641" src="https://img1.daumcdn.net/relay/cafe/original/?fname=https%3A%2F%2Fblogfiles.pstatic.net%2FMjAyMDAyMTdfMzAg%2FMDAxNTgxODc3NzIzMzU5.inm5vWXmJD6u6EJpKYrSNojS-LPg1uKSbZm6xNHhYLYg.VHVjMSsG1FcKinDgpA7yJqdLlMnXBJdzeyVy-krNuxMg.PNG.mdsol%2F6.png" class="__se_object" s_type="attachment" s_subtype="photo" width="550" height="220" imgqe="true" jsonvalue="%7B%7D" rwidth="550px" rheight="220px" style="width: 550px; height: 220px;"></td><td class="" style="word-break: break-all; border-width: 0px 0px 1px 1px; border-bottom-style: solid; border-left-style: solid; border-bottom-color: rgb(204, 204, 204); border-left-color: rgb(204, 204, 204); border-image: initial; border-top-style: initial; border-top-color: initial; border-right-style: initial; border-right-color: initial; width: 369px; height: 18px;"> 노란색 치수 문자의 축척 변경</td></tr></tbody></table> 자세한 내용은 아래 동영상을 참고해주십시오. <iframe src="https://www.youtube.com/embed/2KOdl3dVpHo" width="640" height="360" frameborder="0" allowfullscreen=""></iframe>기타 문의하실 사항이 있다면 (주)모두솔루션 기술지원부로 연락 주시기 바랍니다.<p class="se-text-paragraph se-text-paragraph-align-left " id="SE-bc9cf09b-71a6-481e-9f80-9604e7c34158" style="border: 0px; font-variant-numeric: inherit; font-variant-east-asian: inherit; font-stretch: inherit; font-size: 0px; line-height: 1.5; font-family: se-nanumgothic, sans-serif; vertical-align: baseline; word-break: break-word; overflow-wrap: break-word; white-space: pre-wrap; color: rgb(102, 102, 102);"><span class="se-fs-fs16 se-ff-system se-style-unset " id="SE-f6c3ef4a-7761-45af-a773-c9606488a584" style="margin: 0px; padding: 0px; border: 0px; font-variant: inherit; font-weight: inherit; font-stretch: inherit; font-size: 11pt; font-family: 돋움, Dotum; vertical-align: baseline; color: rgb(0, 0, 0);">Tel : 02-857-0976 / Mail : support@modoosol.com<p class="se-text-paragraph se-text-paragraph-align-left " id="SE-e5145347-372d-4bb4-a311-a9d689ab7cf1" style="border: 0px; font-variant-numeric: inherit; font-variant-east-asian: inherit; font-stretch: inherit; font-size: 0px; line-height: 1.5; font-family: se-nanumgothic, sans-serif; vertical-align: baseline; word-break: break-word; overflow-wrap: break-word; white-space: pre-wrap; color: rgb(102, 102, 102);"><span class="se-fs-fs16 se-ff-system se-style-unset " id="SE-1f434920-1991-4adf-bbe8-a60a49d1f903" style="margin: 0px; padding: 0px; border: 0px; font-variant: inherit; font-weight: inherit; font-stretch: inherit; font-size: 11pt; font-family: 돋움, Dotum; vertical-align: baseline; color: rgb(0, 0, 0);">감사합니다.
