Senses


Senses organs receive external and internal stimuli; therefore, they are called receptors. Each type of receptor is sensitive to only one type of stimulus as listed Table 06, while Figure 09 shows many types of receptors. When a receptor is stimulated, it generated nerve impulses that are transmitted to the spinal cord and/or the brain, but we are conscious of a sensation only if the impulses reach the cerebrum.


Figure 09 Senses

Figure 10 Cerebrum Mapping

Receptor	Type	Sense	Stimulus
General
Ruffini's endings, Krause end bulbs	Radioreceptor	Hot-cold	Heat flow
Merkel's and Meissner's endings	Mechanoreceptor	Touch	Mechanical displacement of tissue
Pacinian corpuscles	Mechanoreceptor	Pressure	Mechanical displacement of tissue
Free nerve endings	Chemoreceptor	Pain	Tissue damage
Proprioceptors	Mechanoreceptor	Limb placement	Mechanical displacement
Special
Eye	Radioreceptor	Sight	Light
Ear	Mechanoreceptor	Hearing	Sound wave
Olfactory cells	Chemoreceptor	Smell	Chemicals
Taste buds	Chemoreceptor	Taste	Chemicals


Table 06 Receptors

 The general receptors distribute all over the skin. They are usually grouped together as sensation. The special receptors locate only at certain part of the body in the head. Altogether, they are referred to as the five senses. The followings present a further break down into components, and functions.

Sight (see location of the various components in Figure 09):

•Sclera - This is the white of the eye. It is a tough whitish sheath covering most of the eye (see Figure 11). The inter-cellular space contains a kind of loose proteins composed of collagen and elastic fibers, which make the wall of the eyeball more pliant.
 •Cornea - It is almost perfectly transparent at the front of the sclera for the protection of the eye. Light rays is refracted through this dome-shaped structure.
 •Choroid - The soft layer inside the sclera. It has many blood vessels that nourish the eye. It also absorbs stray light.


Figure 11 Human Eye

•Ciliary body - The choroid becomes suspensory ligaments near the opening. It holds the lens in place, and controls the shape of the lens for near and far vision.
•Iris - Further toward the opening, the choroid becomes a thin, circular, muscular diaphragm known as the iris, which regulates the size of a center hole (the pupil) and thus controls the amount of light entering into the eye. The pupil gets larger in dim light and smaller in bright light.
 •Aqueous humor - This is the anterior cavity between the cornea and the lens. It is filled with an alkaline, watery solution secreted by the ciliary body. Normally, the solution leaves the anterior cavity by way of tiny ducts that are located where the iris meets the cornea. When a person has glaucoma, these drainage ducts are blocked, and aqueous humor builds up. The resulting pressure compresses arteries that serve the nerve fibers of the retina. The nerve fibers begin to die due to lack of nutrients, and the person becomes partially blind.
 •Lens - It is a fat disk that completes the focusing of light rays into a clear, sharp image on the retina. Actually, the cornea provides about 80% of the focusing power. The lens is stretched by the ciliary muscles to fine-tune the focus by changing the shape, so it becomes fat for near objects, thin for far ones.
 •Vitreous humor - The posterior cavity behind the lens contains a viscous, gelatinous material. It forms the bulk inside the eyeball and, with the outer sclera, gives it firmness. It also helps to refract light rays toward the retina.

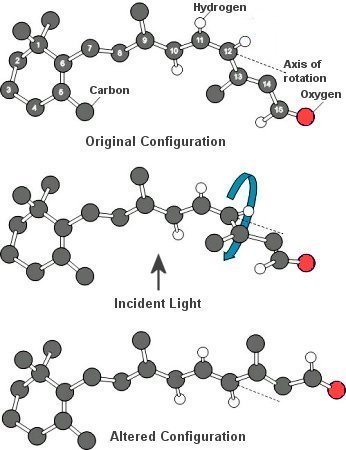

•Retina - Inside each light-sensitive cell (rod or cone) in the retina are up to 100 million molecules of photopigment, each of which contains a smaller molecule known as retinal (Figure 12a). When retinal receives light energy, it changes shape by twisting around its backbone. The altered retinal sets off a chain of chemical reactions inside the cell, which triggers an electro-chemical change in the cell membrane creating a nerve impulse. The retinal returns to its original configuration when the signal jumps across a synapse to a bipolar cell. Curiously, in order to


Figure 12a Retinal

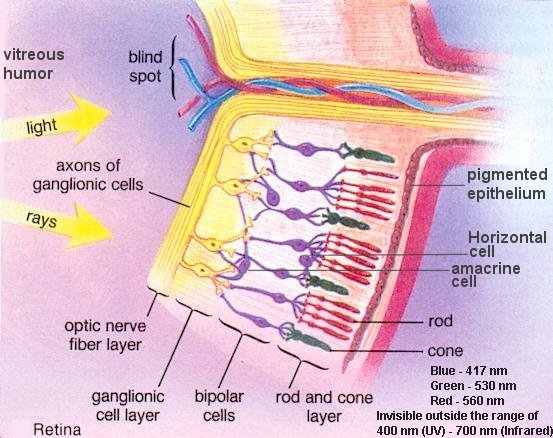

Figure 12b Retina

reach the photoreceptors, incoming light must first pass through all the other layers of cells in the retina. There are five layers altogether (see Figure 12b). Starting from the outermost layer:

 1.Pigment epithelium - Epithelial cells are the guards and protectors of the organ. They cover the surface and determine which substances are allowed to enter.
 2.Rods and cones - These are the photoreceptors. The rods are responsible for night vision, and the cones for color vision. The retina has as many as 150 million rods but only 1 million ganglionic cells and optic nerve fibers. This means that there is considerable mixing of messages and a certain amount of integration before nerve impulses are sent to its final destination. The photoreceptors achieve the remarkable sensitivity (of a millionfold difference in luminance) with adjustment relative to the average background. But if the overall background level of illumination were to change drastically, as it does when we enter a dark room, we are effectively blind for a few minutes until the rod photoreceptors have adapted to this level of reduced intensity. Vision is most acute in the fovea centralis (see Figure 09), where there are only cone cells. Clear vision is possible only when the fovea inspects a scene. This provides a very restricted window of clarity. Thus in order to obtain a clear picture, the eyes have to dart about frenetically and automatically under the direction of the brain.
 3.Bipolar cells - Nerve signals from the rods and cones pass inward to this layer. The bipolar cells together with the horizontal and amacrine cells form the network of pre-processing nerve cells. The network helps to simplify, and code information before it reaches the optic nerve.
 4.Ganglionic cell layer - It receives input from the pre-processing network, and send output to the brain via the axons of the ganglion cells.
 5.Optic nerve - It is made up of nerve fibers, which come from across the whole retina. They pass in front of the retina, forming the optic nerve, which turns to pierce the layers of the eye. The signals eventually end up in the occipital lobe to form an image.


•Optic Pathway - As shown in Figure 13, information about the left visual world is transmitted to the right side of the brain and vice versa. As the visual fields of the eyes overlap in the front, this division is achieved by sorting retinal ganglion cell axons according to whether they look at the left (dotted line) or the right (solid line) visual field. So some axons from the right eye go to the right side of the brain and others to the left. The sorting occurs in the optic chiasm. The retinal axons proceed to the lateral geniculate nuclei where the first synapses are fromed with the visual neurons in the brains.


Figure 13 Optic Pathway

Hearing (see location of the various components in Figure 09):

 •Outer Ear - ◦Pinna - This is the external flap for collecting sound wave.
 ◦Auditory canal - The opening of the auditory canal is lined with fine hairs and sweat glands. The modified sweat glands secrete earwax to guard the ear against the entrance of foreign materials, such as air pollutants.

•Middle Ear - ◦Tympanic membrane (ear drum) - It pushes a set of three small bone (the ossicles) against an inner membrane.
 ◦Ossicles - The three parts in this structure are: hammer, anvil, and stirrup. These components multiply the sight vibration of the sound by about 20 times. When the stirrup strikes the oval window, the pressure is passed to the fluid within the inner ear.
 ◦Eustachian tube - It extends from each middle ear to the nasopharynx and permit equalization of air pressure. Chewing gum, yawning, and swallowing in elevators and airplanes help to move air through the eustachian tubes upon ascent and descent.

•Inner Ear - Whereas the outer ear and the middle contain air, the inner ear is filled with fluid. Anatomically speaking, it has three areas: the first two, the semicircular canals and a vestibule, are concerned with balance; only the third, the cochlea, is concerned with hearing. It is a very delicate and sophisticated organ about 1 cm3 in size. ◦Scala vestibuli - The incoming vibration (red arrows in Figure 14) spirals along this structure toward the apex of the cochlea. At the apex, a small gap allows the wave to pass into the scala tympani.
 ◦Scala tympani - The wave travel down (blue arrows) in this spiraling tube toward the round window.
 ◦Round window - It acts as a pressure relief membrane dissipating the vibrational energy.
 ◦Organ of Corti - This structure is set onto the basilar membrane which forms one of the arms of the Y inside the cochlea (see Figure 14). Pressure changes in the fluid outside the scala media create vibrations in the basilar membrane and in the Reissner's membrane, which forms the other arm of the Y. The vibrations in the scala media and the tectorial membrane shake the hair cells, which convert the vibrational energy into electrical nerve impulses. The signals are channeled by nerve fibers along the organ of Corti to the main cochlear nerve, and then to the temporal lob of the brain for processing into the sounds that we perceive.


According to the frequency of the sound wave, different parts of the basilar membrane along the organ of Corti are set into motion. In general, low-pitch sounds make the apex of the cochlea vibrate while high-pitched ones cause most vibrations near the base of the cochlea. Figure 15 shows such frequency distribution along the length of the cochlea for both the incoming and outgoing waves. The strength of nerve signals also depends on the volume of the sound. This is interpreted by the brain as loudness. It is believed that tone is an interpretation of the brain based on the distribution of hair cells stimulated.

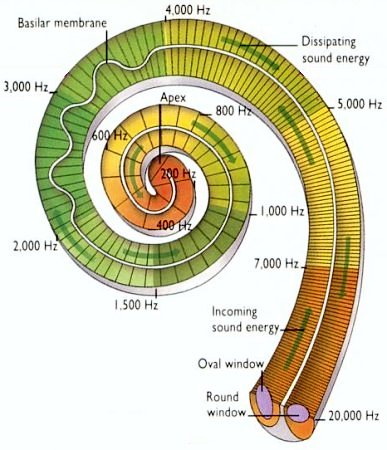

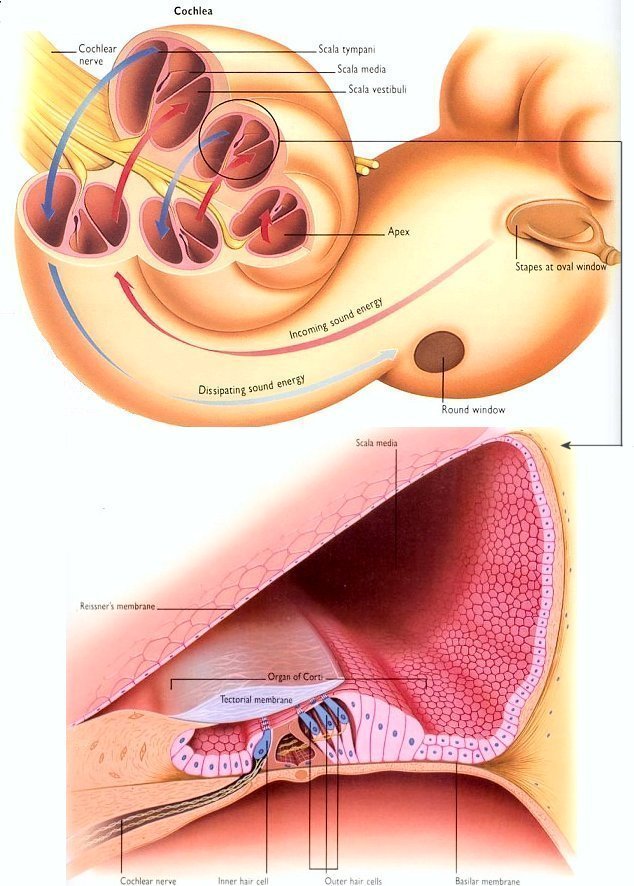

Figure 14 Cochlea

[view large image]

Figure 15 Sound Wave

Smell (see location of the various components in Figure 09):

◦Nasal cavity - This a large air space above and behind the nostril. Three shelf-like ridges of bone (nasal conchae) are there to deflect air. In normal breathing, air flows through the lower part of the cavity, past the rear of the soft palate and into the throat (Figure 16). A good sniff sends the odor eddying up into the roof of the nasal cavity, where it comes into contact with the olfactory apparatus.
 ◦Mucus layer - Only those odor molecules that can be dissolved in the mucus, become the stimulants to the receptor sites on the cilia.

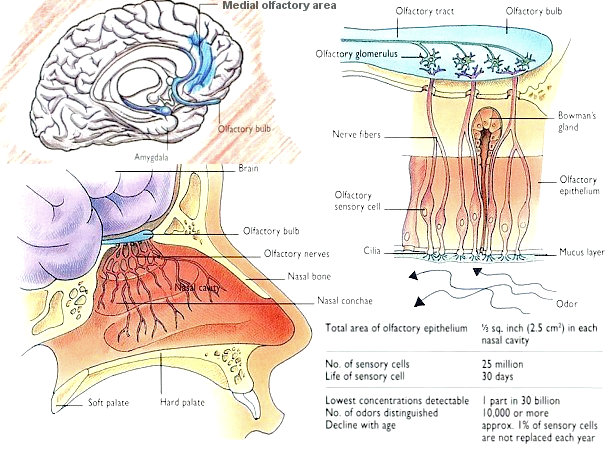

Figure 16 Sense of Smell


◦Cilia - These are the hairlike projections from the olfactory sensory cells, and trigger the sensory cells to generate nerve signals if the receptors recognize the shape of the odor molecules. It is estimated that the human nose contains about 1000 different types of olfactory neurons, each type able to detect a particular set of chemicals.


•Bowman's gland - This gland makes the mucus.
 •Olfactory sensory cell - It is embedded in the olfactory epithelium. Nerve signals pass upward along the cell body, which narrows into a wire-shaped nerve fiber, or axon. The axons from thousands of sensory cells group into bundles and convey their nerve signals to the olfactory bulb.
 •Olfactory bulb - In this structure, the axons form complicated ball-shaped sets of connections with the mitral cells. These connection area are olfactory glomeruli, and there are hundreds in each olfactory bulb (see Figure 17). Each glomerulus receives signals from more than 25000 sensory cells and has tens of thousands of connections from the mitral cells in the bulb itself. Much sorting and processing of the signals takes place in the glomeruli. The resulting nerve messages are sent along the olfactory tract to the olfactory area in the brain.

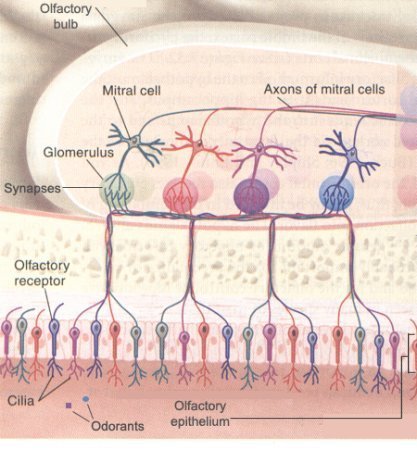

Figure 17 Olfactory Bulb

•Olfactory area - Nerve signals representing smells are routed to two regions of the brain: the medial (inner) olfactory area and the lateral (side) olfactory area in the amygdala. Figure 18 shows the pathway of the odorants in the air, which initiates impulses moving along the nerve pathway to the brain. Since the nerve pathway is in part of the brain's limbic system, which also deals with memories and emotions, smell can evoke strong emotion from past experience about a certain odor. Smell is the sense in which habituation occurs most quickly. Habituation is the process in which a sense becomes accustomed to what it detects so that it is no longer perceived. Most odors can hardly be perceived just 30 seconds after they are first detected.


Figure 18 Pathways


The sense of taste and the sense of smell supplement each other, creating a combined effect when interpreted by the cerebral cortex. For example, some of the molecules may move from the nose down into the mouth region and stimulate the taste buds there. Therefore, part of what we refer to as smell actually may be taste.

 Taste (see location of the various components in Figure 09):


•Tongue - Embedded within the surface of the tongue are four types of taste receptors localized in specific regions on the tongue (see Figure 19, also a 2010 version). Each detects a different class of chemical: sweet (sugars), sour (acids), bitter (complex organics), and salty (salts). The "hot" sensation of foods such as chili peppers is detected by pain receptors, not chemical receptors. But a report in 2006 reveals that contrary to popular belief, there is no tongue map. Responsiveness to the five basic modalities - bitter, sour, sweet salty and umami (a Japanese word meaning the savory or meaty taste of

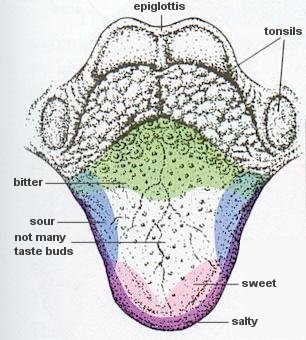

Figure 19 Tongue

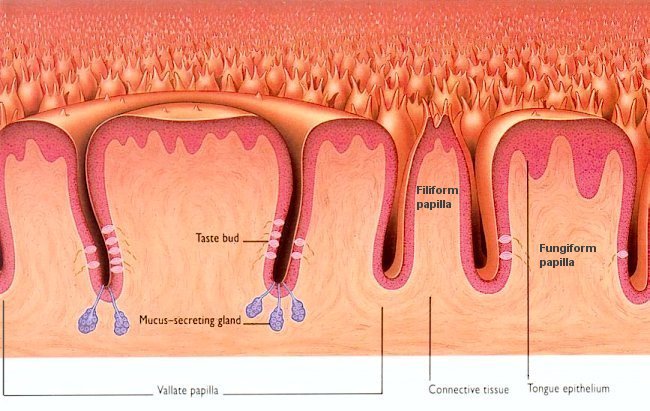

Figure 20 Papillae


amino acids) is present in all areas of the tongue.

 •Papillae - The papillae are those small elevations visible to the naked eyes. There are three types of papillae located from the back of the tongue toward the tip. Filiform papillae are generally conical or pointed; fungiform papillae are flat-toped; vallate papillae are larger with an outer groove (see Figure 20). Many taste buds lie along the walls of the papillae. Isolated ones also are present on the palate, the pharynx, and the epiglottis.

•Taste buds - The tasting, or gustatory, cells in the buds have hairy tips which detect chemicals in solution (secreted by the gland at the bottom of papilla). When stimulated by flavor molecules, these cells generate nerve signals, which they send to the taste center on the brain's cortex, and also to the hypothalamus, which is concerned with appetite and the salivating reflex.
•Taste nerve pathway - The nerve signals are carried by three nerves in each side of the tongue (cranial nerves) to a small part of the medulla (brain stem). The signals then travel to parts of the brain, such as the hypothalamus, the thalamus, and the gustatory part of the sensory cortex - the "taste center", where the signals are interpreted (Figure 21). The thalamus acts like a relay station, shunting the data onto appropriate cortical areas for processing. The sense of taste tells us what is good to eat. It evolved to pick out sweet, ripe fruits and energy-packed sugars

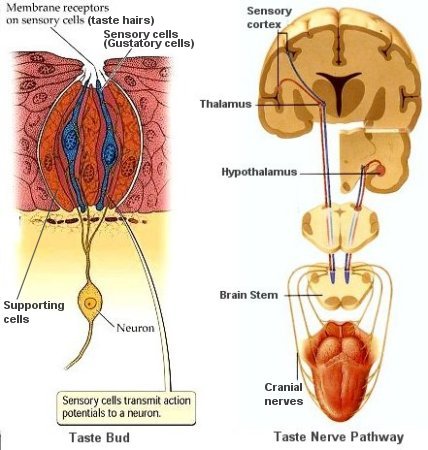

Figure 21 Sense of Taste

and starches. Likewise, taste is is extremely sensitive to bitter flavors, because many poisonous berries, fruits and fungi are bitter-tasting.

 Sensations (see location of the various components in Figure 09):

 •Skin - Skin has a thin epidermis, which is mainly for protection, and a thicker dermis below. In addition to small blood vessels and sweat glands, it has tiny nerve endings in the various type of touch receptors (see Figure 09).
 •Receptors - ◦Bulb of Krause - These are multi-layered capsules with many branched nerve endings. They are quick-change mechanoreceptors, triggered by rapid alterations in shap caused by pressure or vibrations, and may also help us to feel extreme cold.
 ◦Free nerve endings - They have a treelike branching system of naked nerve fibers. They are the most common sensory endings in the skin and detect just about anything - light touch, heavy pressure, heat, cold, and importantly, pain. Slight stimulation of these nerve endings may elicit the sensation that is known as itching.
 ◦Meissner's endings - They are found in the uppermost part of the dermis, especially on the hands, feet, lips, and inner surfaces of the eyelids. They are shaped like eggs and are both quick- and slow-change mechanoreceptors, detecting light touch and vibrations.
 ◦Merkel's endings - They are like tiny disks stuck in the underside of the epidermis, where they feel slight changes in its shape, thereby detecting light touch. They are both quick- and slow-change mechanoreceptors.
 ◦Pacinian endings - They have layers like an onion and are sited deep in the dermis. They pick up heavy pressure and also fast vibrations, such as those from a tuning fork.
 ◦Ruffini endings - They respond to sustained stress or gradually altering shape. This means that they are slow-change mechanoreceptors. They are found mainly in hairy skin and are sausage- or spindle-shaped. It is thought that they may also detect extreme heat.

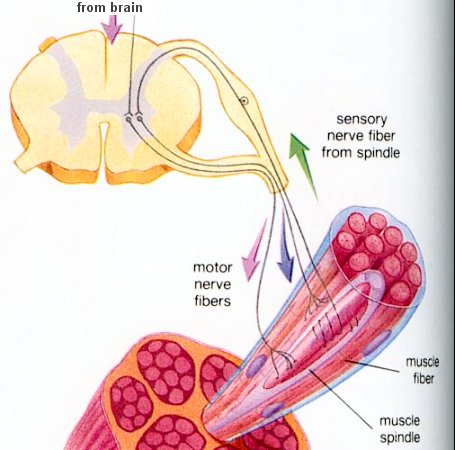

•Proprioceptors - The sense of position and movement of limbs is dependent upon receptors termed proprioceptors (Figure 22a). They are located in the joints and associated ligaments and tendons that respond to stretching, pressure, and pain. Nerve endings from these receptors are integrated with those received from other types of receptors so that we know the position of body parts.
 •Sensory nerves - Nerve impulses may reach the somatosensory cortex for analysis before a response is decided. These result in voluntary actions - a deliberate response. Sometimes the stimulus require immediate action (such as from the burning sensation), a reflex action is taken without the conscious control of the brain. These are the involuntary actions directed by the spinal cord. We only become aware of them when other impulses are sent to the brain to "inform" what has happened. The path which impulses travel along during a reflex action is called a reflex arc. Not all the body parts receive the same attention of the brain. The relative importance is often represented by mapping over the length of the sensory or motor cortex. These cortical maps (Figure 22b) are not drawn to scale; instead they are variously distorted to reflect the amount the neural processing power devoted to different regions. This accounts for the grotesque appearance of the human body in the homun-culus, which is a translation of the body's sensory map into the human form.


Figure 22a Propriocep-tors

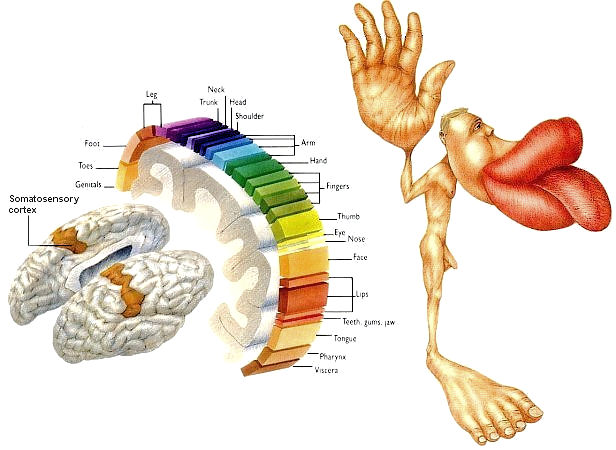

Figure 22b Homunculus

Balance

 Balance is an ongoing process that keeps our two-legged posture stable. Four main sets of sensory input are involved:

 1.Information from the skin is important, especially from the touch and pressure sensors on different parts of the feet, which tell the brain if you are leaning. This sense is not available in a free falling environment such as in a spacecraft.
 2.Eyesight is used to judge verticals and horizontals to which your body should be parallel and at right angle respectively.
 3.The body's proprioceptive sense of stretch in muscles, tendons, and joints tell the brain about the positions and angles of the arms, legs, torso, and neck.
 4.The sensory parts dedicated to balance is located deep inside each inner ear, next to the cochlea (see Figure 09). These parts are known collectively as the vestibular apparatus and are part of the same network of fluid-filled chambers as the cochlea. They consist of the utricle, the saccule, and the semicircular canals (Figure 23a). In certain parts of their linings are tinny hairs, whose roots are embedded in lumpy crystals or gels. The crystals or gels are attracted downward by gravity, and they are also pushed to and fro by the fluid in the chambers, which swirls as the head changes its position.


The functions of the these organs are shown in Figure 23a:
 •(a) The ampullae of the semicircular canals contain hair cells with cilia embedded in a gelationous material.
 •(b) When the head rotates, the material is displaced and the bending of the cilia initiates nerve impulses in sensory nerve fibers for maintaining dynamic equilibrium.
 •(c) The utricle and saccule are sacs that contain hair cell with cilia embedded in the gelationous material.
 •(d) When the head bends, otoliths are displaced, causing the gelationous material to sag and the cilia to bend. This initiates nerve impulses in sensory nerve fibers for maintaining static equilibrium.

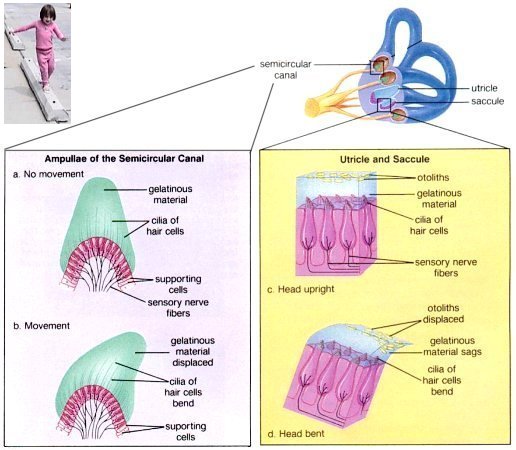

Figure 23a Balance

The vestibular nerve feeds its information chiefly to the cerebellum and to four structures in the medulla known as vestibular bodies. Using these data, as well as input from the other three sensory sources, the brain works out what to do, usually subconsciously.

It turns out that such structure of hair within gel to detect disturbance has been around hundred of million years in the shark and fish (Figure 23b). This is the neuromasts embedded in the skin of fish. They give the fish information about the flow of water. Amphibians and reptiles have a simple uncoiled inner ear. Jawless fish has only one semicircular canal instead of three in mammals (for detecting three dimensional movement). Ultimately, it is the Pax 2 gene that give rise to these structures. It is also known that the Pax 6 gene is responsible for the development of eye. The connection to ancient creatures goes even deeper when it is

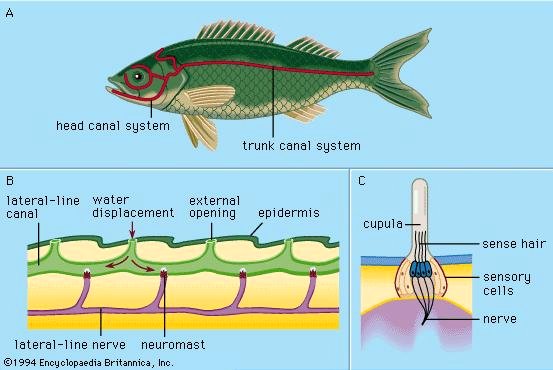

Figure 23b Neuromast

found that the box jellyfish carries a gene which is the combination of Pax 2 and Pax 6.
The box jellyfish is an amazing animal with more than 20 eye pits and many eyes very similar to ours. They seem to double for ears as well.
