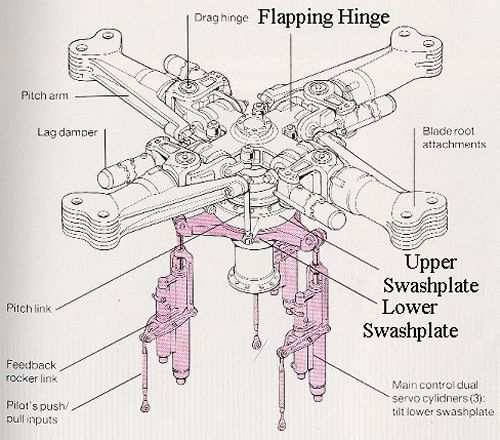

헬기 이론에 대해 설명한 사이트가 있어 퍼 왔습니다. 원문은 아래 링크에 있습니다. http://www.aerospaceweb.org/design/helicopter/main.shtml   Flapping Hinges

Introduction Early History Modern History Flapping Hinges Maximum Speed Cyclic Control Momentum Theory Blade Element Theory Rotor Wake Summary References Home

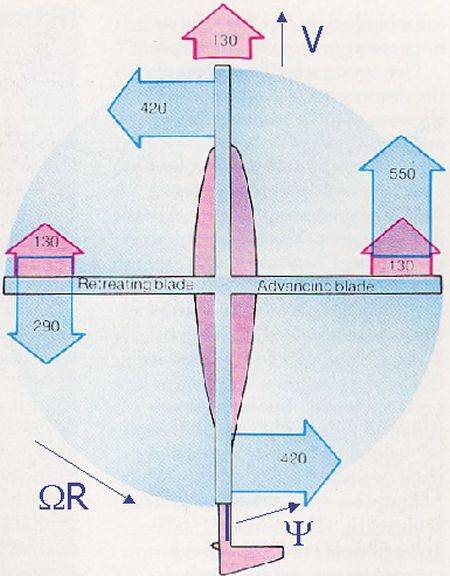

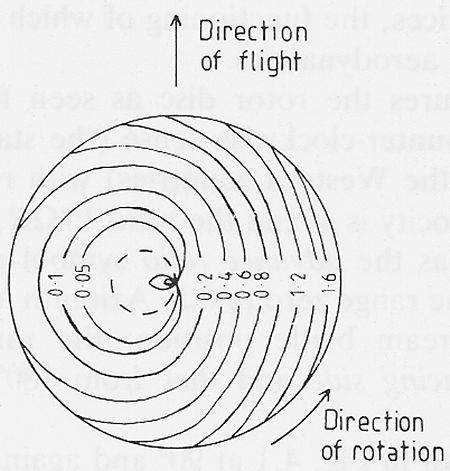

Non-Articulated Rotors: To begin a discussion of a helicopter rotor in forward flight, it is first necessary to consider a non-articulated rotor. A rotor disk viewed from above is depicted below. In this example figure, the helicopter is traveling at a forward velocity V of 130 mph (210 km/h), and the rotor has a rotational speed of W and a blade tip velocity of 420 mph (675 km/h). As is the convention in Western countries, the rotor is rotating in a counter-clockwise direction. Velocities of rotor in forward flight [from Gunston and Spick, 1986] The advance ratio, denoted as m, is equal to V/WR, and it usually has a value between 0 and 0.5. The azimuth angle of a blade is denoted as Y, where Y=0?at the downstream position. With this definition, advancing blades have Y=0?to 180? while retreating blades have Y=180?to 360? As can be seen in the above figure, the maximum and minimum velocities for the blades occur at Y=90?and Y=270? respectively. If the blades were to rotate at a fixed incidence, then this velocity differential would cause four-fifths of the total lift of the rotor to be created on the advancing side. The calculated pressure contours for a fixed incidence rotor with an advance ratio of m=0.3 are shown below. Calculated pressure contours for fixed blade incidence [from Seddon, 1990] Obviously, this large imbalance of force on the rotor would lead to large oscillatory stresses at the blade roots, along with a large rolling moment. This would make the helicopter very unflyable, both from a dynamics and structural viewpoint. Articulated Rotors: To reduce this large force differential, a cyclical variation of the blade incidence is needed. The most common way of reducing the blade incidence is with flapping hinges, which were first used by Cierva in 1923, as discussed in a previous section on historical developments. When using flapping hinges, the blade is hinged as close as possible to its root, allowing the entire blade to "flap" up and down as it rotates. An articulated rotor hub [from Gunston and Spick, 1986] When a blade is on the advancing side, its increased lift causes the blade to flap upwards, which effectively reduces its incidence. The opposite occurs on the retreating side. Due to the presence of the flapping hinges, none of the bending forces or rolling moments is transferred to the helicopter body. Centrifugal force is typically enough to prevent the blades from flapping to a large degree, but many helicopters also employ stops as an added preventative measure. The use of flapping hinges also creates a better force balance on the rotor, distributing the lift more evenly. Calculated pressure contours for a variable incidence rotor can be seen below. Calculated pressure contours for variable incidence [from Seddon, 1990]

Maximum Speed:

The previous section introduced the following figure that depicts pressure contours calcualated on a rotor in forward flight.

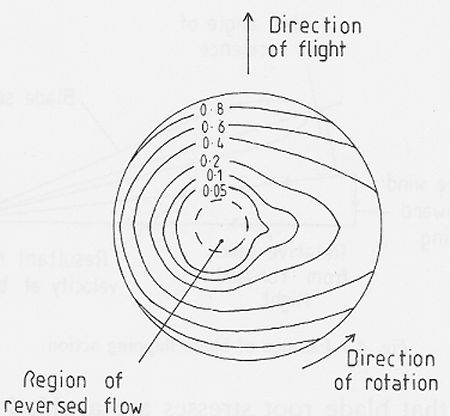

Calculated pressure contours for variable incidence [from Seddon, 1990]

This diagram also denotes a region of reversed flow on the rotor. As the forward speed of the helicopter increases, a region near the blade roots on the retreating side actually experiences a reversed flow. Combined with the large blade incidence on the retreating side, as forward speed increases, the blades approach a stalled condition. At the same time, regions near the tips on the advancing side experience a very high velocity flow, approaching the point where shock waves form, leading to shock induced flow separation. Due to these limiting factors, the maximum forward speed of a helicopter is limited to about 250 mph (402 km/h).

Drawing a very close comparison to the theory, the world speed record for a helicopter is 249.10 mph (400.80 km/h). This record was set in August 1986, with a Westland Lynx from the United Kingdom flying over a 15 km course, piloted by John Egginton.

Westland Lynx, world's fastest helicopter

Tip Path Plane:

The tip path plane, or TPP, is the plane connecting the rotor blade tips as they rotate. While hovering, the thrust vector of a helicopter is oriented upwards, perpendicular to the tip path plane. In order for the helicopter to travel forward, this thrust vector needs to be rotated slightly in the forward direction. To rotate the thrust vector, it is in turn necessary to rotate the TPP by the same amount, as illustrated below. The hovering TPP is drawn in purple, while the forward TPP is in orange.

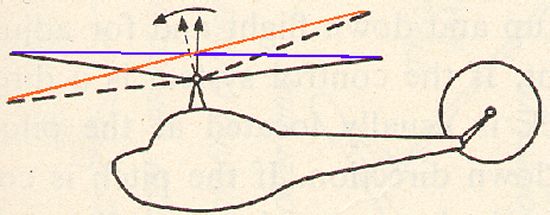

Tip path planes and thrust vectors for hovering and forward flight [from Gessow and Myers, 1952]



Cyclic Control:

Since tilting the rotor hub or rotor shaft is impractical, an alternative means of rotating the TPP is needed. Most modern helicopters use a system of swashplates. Seen in the following diagram, the swashplate system is composed of upper and lower swashplates.

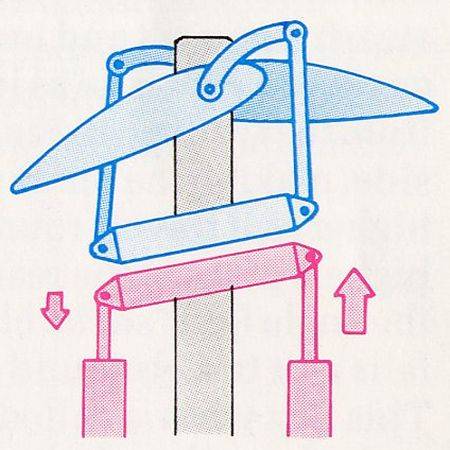

Cyclic control and swashplates [from Gunston and Spick, 1986]

The red portion of the diagram, including the lower swashplate, remains stationary relative to the helicopter. The upper swashplate (in blue) rotates with the rotor, while remaining parallel to the lower swashplate. By utilizing what is called cyclic control, the swashplates can be angled so as to vary the pitch of the blades depending on their azimuth angle. As the swashplates are tilted in the proper direction, there is an increased lift on the aft portion of the rotor, causing the blades to flap up, which in turn causes the TPP to rotate forwards. As the TPP rotates forwards, the thrust vector does as well, imparting a forward acceleration to the helicopter.

Momentum Theory in Forward Flight

Introduction Early History Modern History Flapping Hinges Maximum Speed Cyclic Control Momentum Theory Blade Element Theory Rotor Wake Summary References Home

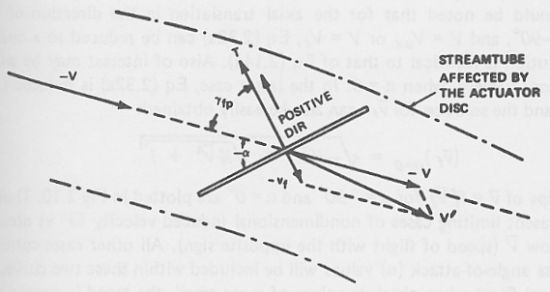

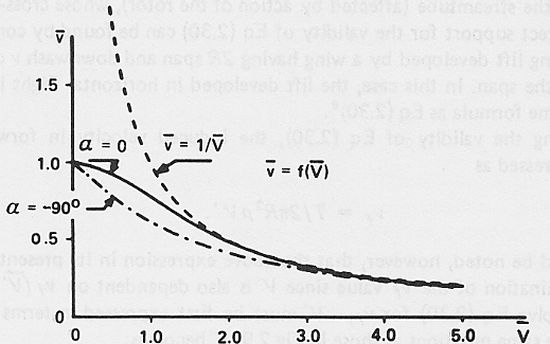

The first analytical theory to consider for a helicopter in forward (nonaxial) flight is the momentum theory. The analysis for vertical (axial) flight is very similar to that of a simple propeller, and will not be discussed here. One notable result of that analysis, however, is the induced velocity of the rotor in hover: where w is the disc loading, given by In the terms of basic momentum theory, the thrust of a rotor in nonaxial flight is very difficult to derive. In the context of this discussion, a relationship for the thrust that was proposed by Glauert in 1928 will be used. A simple diagram of an actuator disk in nonaxial flow is depicted below. Actuator disk in nonaxial flow [from Stepniewski, 1979] The thrust of the actuator disk can be given by: Far downstream from the disk, the downwash vf is doubled. Also, the term becomes the mass flow through the stream tube that is defined by the actuator disk. Some validity for these relationships can be inferred by comparing them to the formula for the lift of a wing having 2R span with a uniform downwash. The lift of such a wing is expressed by an equation similar to that shown above. After assuming that this equation is valid, determining the thrust requires that the induced velocity in forward flight be determined: Unfortunately, this equation does not allow a determination of vf, since V?is also dependent on vf. In order to solve for the induced velocity, V?must first be expressed in terms of V and vf: This value for V?can then be substituted back into the thrust equation, which can then be nondimensionalized by vh (overbars denote nondimensional values): The above equation can now be solved either graphically or with an iteration scheme. As a check of validity, if this equation is solved for an a of 0? the solution matches that of the axial case. The other extreme case, where a=-90? represents the other limiting case of helicopter forward flight. The nondimensional induced velocity versus the nondimensional flight velocity for both limiting cases are plotted below. Nondimensional induced velocity versus nondimensional flight velocity [from Stepniewski, 1979] While most cases of forward flight occur at small a, in which case the a=0?curve would be very representative, all other intermediate cases of flight are within the two curves. It is important to note that beyond a nondimensional flow velocity of about 3, the two curves are almost coincident, and can be approximated by 1/ .

Blade Element Theory in Forward Flight

Introduction Early History Modern History Flapping Hinges Maximum Speed Cyclic Control Momentum Theory Blade Element Theory Rotor Wake Summary References Home

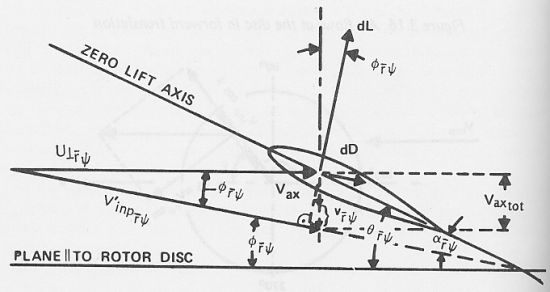

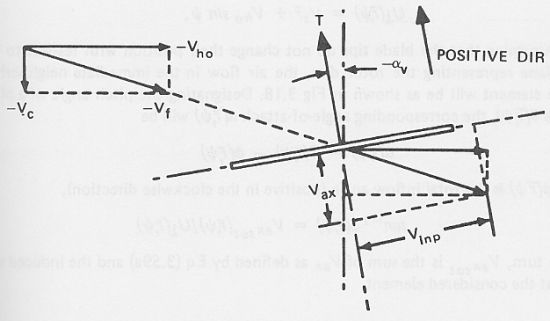

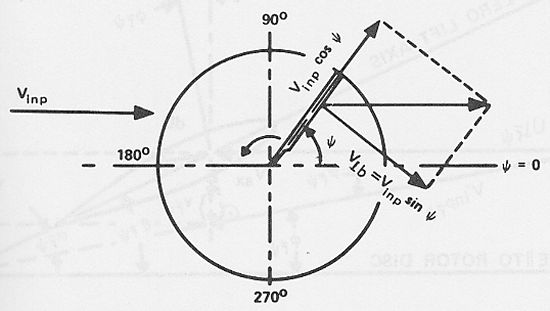

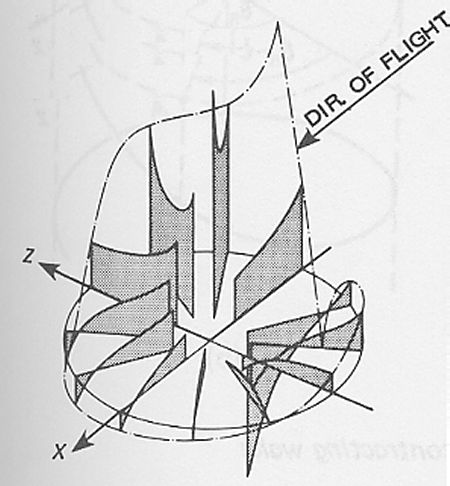

Blade element theory provides the necessary means to predict the aerodynamic forces and moments acting on a rotor blade in forward flight. Similar to momentum theory, it is necessary to determine the magnitude and direction of the airflow in the immediate vicinity of the blade element under consideration. Once these velocities are known, the calculation of the forces and moments can be performed using two-dimensional airfoil characteristics, taking care not to neglect such aspects as Reynolds and Mach number effects. Flow velocity components of a rotor in nonaxial flow [from Stepniewski, 1979] The flow velocity components of a rotor in nonaxial flow can be resolved into two components, the axial (Vax) and inplane (Vinp) components, both shown in the above figure. If a small tilt angle av is assumed, then these components can be expressed as follows: As a first approximation, only the component of Vinp that is perpendicular to the blade axis is important (i.e. Vinp sin y). Inplane velocity components [from Stepniewski, 1979] Also, in the case of forward flight when av is small, the inplane velocity Vinp may be considered the same as the forward horizontal speed Vho. Taking into account the speed induced by the rotor rotation (WR) and the blade azimuth angle, the total component of the inplane velocity perpendicular to the blade axis is (overbars denote nondimensional values): If we assume that the blade tips maintain their position with respect to the TPP, then the flow velocities at a blade element are the same as those shown below. Flow velocities at a blade element [from Stepniewski, 1979] The pitch angle of the blade is q, the angle of attack, a, and the total inflow angle is f, which gives the following equation: where Vax tot is the sum of Vax and the induced velocity v at the element. Assuming that the value of Vax tot is known, it is possible to calculate aerodynamic forces on a blade element. The three significant forces that can be calculated are thrust, dT, total drag, dD, and total torque, dQ. For a rotor with rectangular blades, these equations can be integrated as follows: As with momentum theory, these equations can be integrated either graphically or numerically. Each integration yields the thrust or torque for a selected azimuth angle, which then must be averaged for a complete revolution of the blade. These values must then be multiplied by the number of blades to determine values for the entire rotor.

Rotor Wake

Introduction Early History Modern History Flapping Hinges Maximum Speed Cyclic Control Momentum Theory Blade Element Theory Rotor Wake Summary References Home

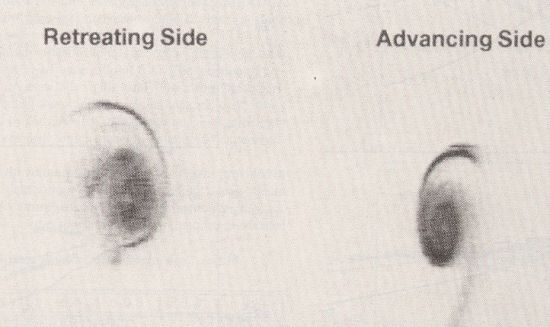

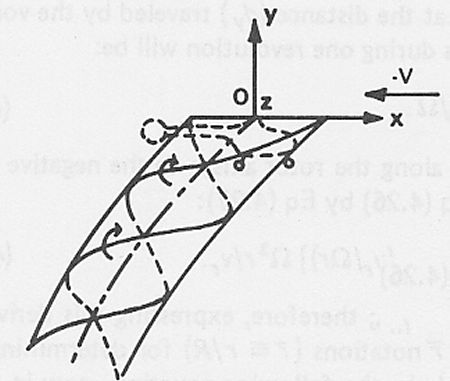

A final element of a helicopter rotor that needs to be examined is the wake it creates as it travels with a forward velocity. In the simplest case, where no vorticity is shed along the blade span, vortices would only be shed at the blade tips and roots. Immediately aft of the helicopter, the tip vortices form helical lines on the surface of the stream tube defined by the rotor. The root vortices will coalesce, forming a single vortex along the axis of the stream tube. Rotor vortices at low flight speed [from Stepniewski, 1979] Soon after the vortices leave the rotor, they begin to roll up in a two stage process. First, the individual tip vortices combine into concentrated lines as they are shed from the tips. Then, several rotor radii downstream of the rotor, the overlapping spiral vortices combine to form two trailing vortices very similar to those found trailing fixed wing aircraft. Trailing vortices viewed from downwind of rotor [from Ghee and Elliot, 1995] While the trailing vortices depicted above are very similar to those of a fixed wing aircraft, it is important to note the "tighter" vortex on the advancing side of the rotor. These vortices exhibit such a difference because of the variation of the downwash distribution between the advancing and retreating blades. As discussed in the section on flapping hinges, the advancing blades experience a higher velocity and thus a greater downwash at the tip, as demonstrated below. Downwash distribution on a rotor disk in forward flight [from Stepniewski, 1979]

References

Introduction Early History Modern History Flapping Hinges Maximum Speed Cyclic Control Momentum Theory Blade Element Theory Rotor Wake Summary References Home

Bhagwat, Mahendra J., et al. Flow Visualization and Measurements in the Wake of a Rotor with a Subwing Tip, Annual Forum Proceedings-American Helicopter Society, vol. 1, 1999, pp. 951-962. Bramwell, A. R. S. Helicopter Dynamics. New York: Halsted Press, 1976. Gessow, Alfred and Myers, Garry C., Jr. Aerodynamics of the Helicopter. New York: Macmillan Company, 1952. Ghee, Terence A. and Elliot, Joe W. The Wake of a Small-Scale Rotor in Forward Flight Using Flow Visualization, Journal of the American Helicopter Society, vol. 40, no. 3, July 1995, pp. 52-65. Gunston, Bill and Spick, Mike. Modern Fighting Helicopters. New York: Crescent Books, 1986. Johnson, Wayne. Helicopter Theory. Mineola, NY: Dover Publications, 1980. McCormick, Barnes W. Aerodynamics, Aeronautics and Flight Mechanics. New York: John Wiley & Sons, 1995. Newman, Simon. The Foundations of Helicopter Flight. New York: Halsted Press, 1994. Seddon, J. Basic Helicopter Aerodynamics. Reston, VA: American Institute of Aeronautics and Astronautics, 1990. Stepniewski, W. Z. and Keys, C. N. Rotary-Wing Aerodynamics. Mineola, NY: Dover Publications, 1979. _____. World and United States Aviation and Space Records. Arlington, VA: National Aeronautic Association of the USA, 1999. Young, Raymond A. Helicopter Engineering. New York: Ronald Press Company, 1949.
