T-Rex 500 G-Force 옵션

[조병호]

The G-Force Static Wick works on all size helis and is designed like the full size system to discharge static quickly, reducing static interference.

The following are videos showing how much static can be generated from a T-Rex 450 and T-Rex 500 tail blades, even spooled up manually at low speeds.

http://www.youtube.com/watch?v=zZg-_zU08TM

http://www.youtube.com/watch?v=MFQSzJEL_YE&feature=related

Details:

G-Force Releases Static Wick for helis to control unwanted static



Static wicks are not new but very common on airplanes for discharging excessive static into the atmosphere.  During flight, an aircraft can accumulate electrical charges from air friction and these charges will eventually discharge causing radio interference.  Static wicks allow static charges release quickly before it is built up to a dangerous level.



The G-Force Static Wick (Part #GFA7088) is designed for RC helis to control static generated by a belt driven tail system and the rotation of the tail blades.  Static is more noticeable in dry weather or winter conditions.  If you are using a FM system, you could glitch continuously from static, but with the new 2.4GHz systems, a lockout could result from enough static interference.



The G-Force Static Wick works on all size helis and is designed like the full size system to discharge static quickly, reducing static interference.

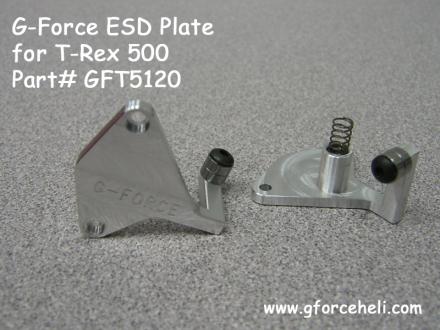

The G-Force ESD plate (Part #GFT5120) is a bolt-on upgrade that will electrically ground the tail boom and belt to a CF frame.  This will reduce the interference that is caused by static generated by the belt and tail blades.
The ESD plate is most effective when used with a CF frame.   When used on a GF frame, only the tail boom and belt is ground together.



It is highly recommended that the G-Force Static Wick (Part #GFA7088) to be used with the G-Force ESD Plate to discharge the static quickly into

[정성환]

무슨뜻인가요 ^^;; 동영상보기는 했는데 먼말인지 모르겠어요 ^^;;

[박철훈(VP_Killer)]

과연! G-force 애덜 답네요. 저도 이거 만들려고 고민하던 참이었는데...

[activeheart(신배근)]

헉! 손으로 돌리는 정도의 RPM에도 잡파가 생기네요...

[빡빠기(황기동)]

헉....아래 벨트 눌러주는 롤러는 필수옵션입니당...벨트가 붐마운트 안쪽에 살짝살짝 닿더군요....지금 제품 만드려고 한창 개발중이었는데...벌써 출시...ㅠ.ㅠ.....

[빵상아저씨(임옥수)]

벨트 장력조절 베어링마운트는 공구한번 하죠...???
