스크랩 [용산알씨]데저트버기 2.0 (LOSI 1:5 DBXL-E 2.0 4WD Brushless Desert Buggy)

[하비센터 관리자]

말머리 선택하지 않고  작성되는글은  삭제처리하겠습니다,

사이트 주소와 사진만 올려두고 사이트 들어와서 구매 하란식의 홍보는 제한합니다.

---

 1. 제품 설명 ::

 2.가격 ::1,450,000원

 3.쇼핑몰 주소 및 연락처 :: (수입사 주소및 연락처)

4.제품 상세 사진. :: (제품에 관한 주소 링크를 허용하지 않습니다!! 직접 찍어서 올려주시기 바랍니다,,)

 안녕하세요.용산알씨입니다.

드디여 1/5 초대형 사이즈 데저트버기 2.0 차량이 입고완료되였습니다.

전에 모터에 비해 더 파워풀해졌고 S906서보는 30kg이상 토크가 나옵니다.

변속기는 최신형 퍼마 160A 변속기로 장착되여있습니다.

샤시 블레이스,기어복스,아우트 드라이브컵 등은 최신 업그레이드된 옵션으로 되여있습니다.

이외 프론트,리어 벌크헤드,알류미늄 센터 디프 컵,쇽,쇽타워,타이어,드라이브 트레인.등 부품도 전부 업그레이드되여있습니다.

이번버전도 AVC자이로 기능이 내장되여있습니다.

최신형 데저트 버기 2.0 차량 현재 용산알씨 혹은 협력사에서 만나보세요~

감사합니다.

buyrc.co.kr/product/product_list.asp?ac_type=2&page_ea=25&ac_number=1&bc_number=1638&cc_number=10520&dc_number=3326

Spektrum™ Firma® 160 Amp Brushless Smart ESC

The ESC is waterproof, completely programmable, and comes pre-wired with a high-current IC5 connector. The ESC will work with most sensorless brushless motors and is Li-Po and Ni-MH compatible. The Smart technology provides information like battery voltage, RPM, RX pack Voltage, and Speed directly from the ESC when used with the Spektrum Dashboard app.

50+ MPH Spektrum Firma 4-Pole 780Kv Brushless Motor

The brushless ESC and motor provide wicked power with an 8s LiPo battery (not included) that will blaze speeds of 50+ MPH.

Spektrum S906 1/5th scale metal gear servo

New 30-kg HV rated Hi Torque Metal Gear Servo.

New Chassis Braces

In addition to the chassis stiffening plate, we have also added an additional electric specific rear chassis brace that goes all the way up to the center diff mount to increase the rigidity of the chassis.

Pinned Center Outdrive Cups

New Center Outdrive cups now have a retaining pin through the pinion gear to keep the out drive cup from coming off.

New Gearboxes

The new gearboxes improve drivetrain strength and stability.

Updated Front and Rear Bulkheads

The front and rear bulkheads have been updated to match the new gearboxes designed for the DBXL-E 2.0. Two additional mounting locations were added to the side of the bulkheads to keep the gearboxes from rocking up and down under acceleration and braking. This provides a more stable drivetrain, and increased overall durability.

Aluminum Center Diff Cup

Returning from the original DBXL-E is the aluminum diff cup used in the center differential. Today's brushless motors produce so much power, that you need to have the added strength and durability in the center diff that only an aluminum diff cup can provide.

New Shocks with Laser Etched FOX Logo Shock Caps

New shock bodies with a lower aluminum cap that allows for easier maintenance of the shock seals for improved performance. Sometimes, it is about the details. New upper shock caps with laser etched FOX logo set off that race inspired look.

MAXXIS Creepy Crawler Tires with Authentic Bead Lock Wheels

Genuine MAXXIS creepy crawler tread pattern tires provide added traction and offer extra control so you can stop, turn and swerve like a pro. Have confidence your tires will never come unglued and make tires changes a breeze with authentic bead lock wheels.

Aluminum Shock Towers

We couldn't just stop at the shocks. The DBXL-E 2.0 gets all new Aluminum Shock Towers Front and rear with revised camber mounting locations for improved stability and handling.

Heavy Duty Drivetrain

Increased the size of the out drives and drive shaft to support a larger 5mm drive pin for increased strength and durability.

New Radio Tray

All new radio tray with sealed receiver box. The new radio tray allows for multiple steering servo configurations. Can be run as a single servo, or updated to run dual steering servos for maximum steering performance.

New ESC Mount

To create space for the larger battery trays, we needed to find a new home for the ESC. The ESC has been relocated to a mounting plate off the center differential. This allows for optimal weight distribution within the car, while increasing the air flow over the top of the ESC for better running performance.

New Race Themed Livery

New Fox Shox race inspired Motorsports themed livery for that true off-road look, along with an awesome Losi flame design trim scheme.

Waterproof Electronics

The DBXL-E 2.0 is loaded with waterproof electronics including the receiver, servo and ESC. Everything is sealed against the elements allowing you to splash in the rain, spin in the mud and make tracks in the snow. It's full-throttle freedom to run anytime, rain or shine

LED Light Bar

The roof mounted LED Light bar from the original DBXL-E returns to continue lighting the way for endless adventures.

Spektrum™ DX2e Active™ Radio System

The Spektrum™ DX2e Active™ radio system offers advanced features like AVC control, a 3-position throttle limiting switch and travel adjust. It also includes a Bluetooth module to utilize the Spektrum Dashboard app.

Spektrum™ Smart Technology

Spektrum Smart technology is about offering a higher connection to your hobby. It's a connection that puts you in complete control, makes you more aware and more confident about the capability of your equipment—all while making vital components of your model easier to use than ever before. Click on the link below to find out how your Spektrum Smart ESC can feed telemetry directly to the optional Dash Board App and how Spektrum Smart batteries and charging can take you to the next level.

Spektrum Smart Technology

Spektrum™ Dashboard App

• Connect your mobile device wirelessly via Bluetooth to your DX2E ACTIVE transmitter *
• View top speed, battery voltage and more in real-time*
• Program select transmitter settings
• Optional phone mount offers the ability to mount your Android or IOS mobile device directly to the DX2E Active

* Requires optional Bluetooth Module (SPM6741) and optional cell phone mount (SPM6745)

The Full-Throttle Freedom of AVC® Technology

The receiver's built-in AVC® (Active Vehicle Control®) traction control system works behind the scenes, making hundreds of throttle and steering adjustments per second, so more of the motor's power is translated into ballistic speed and acceleration instead of just flying dirt. The patent-pending AVC system adds a level of performance that simply cannot be found with any vehicle from any manufacturer other than Horizon Hobby. Like traction control in your full-scale vehicle, you can activate or deactivate the system on the fly and adjust the level of stability based on driving conditions. Any RC vehicle can go fast and with AVC you can go faster while maintaining optimum stability in all driving conditions.

Approximate Assembly Time:	Less than 1 Hour
Ball Bearings:	Full set
Batteries:	Sold separately
Body:	Screen printed polycarbonate panels
Brakes:	Integrated with ESC
Charger:	Sold separately
Chassis:	0.16" (4mm) thick 6061-T6 alumininum w/stiffening plate
Completion Level:	Ready-To-Run
Differential:	Bevel gear, sealed, oil-filled
Drivetrain:	4WD Shaft Drive
Final Drive Ratio:	12.82:1
Gear Pitch:	1.5 Module
Ground Clearance:	2.75" (552mm)
Height:	12.5" (317mm)
Internal Gear Ratio:	3.33:1
Length:	33.25" (844mm)
Max Battery Dimensions:	L x W x H: 6.5 x 2 x 0.87" (165 x 52 x 22mm)
Motor Size:	56113 4-pole 780Kv
Motor Type:	Firma 780Kv non-sensored brushless
Pinion:	13T
Radio:	Spektrum DX2E Active
Servos:	Spektrum S906 1/5 scale metal gear, high-torque, high voltage waterproof steering servo
Shock Type:	Oil-filled, aluminum body
Size/Scale:	1/5
Speed Control:	Firma 160A w/IC5 Battery Connector
Spur Gear:	50T
Suspension:	Independent
Tire Diameter:	7.7" (196mm)
Tire Tread:	Maxxis Creepy Crawler LT
Vehicle Type:	Desert Buggy
Water-Resistant:	Yes
Weight:	28.3 lbs (12.8kg) w/o batteries, 30.5 lbs (13.8kg) w/batteries
Wheel Diameter:	4.5" (115mm) measured at center
Wheel Hex Size:	24mm Hex
Wheel Type:	Beadlock
Wheel Width:	3.0" (76mm)
Wheelbase:	21.75" (552mm)
Width:	19.5" (495mm)

Features

• Spektrum™ Firma® 160 Amp Brushless Smart ESC
• Spektrum Firma 4-Pole 780Kv Brushless Motor
• Spektrum DX2E Active™ radio system with AVC® and new SR6100AT Receiver
• Spektrum S906 1/5th scale metal gear servo
• Waterproof Components
• Aluminum Shock Towers
• Aluminum Center Diff Cup
• New Radio Tray designed for use with single or dual steering servos.
• New Heavy Duty Drivetrain with 5mm drive pins
• New Electric Chassis specific chassis braces for increased durability and strength

• New ESC Mount
• Pinned Center Outdrive Cups
• New Gearboxes for improved drivetrain strength and stability
• New Steering Rack with helical servo saver design
• Updated Front and Rear Bulkheads
• Maxxis Creepy Crawler LT Tires
• Losi and Fox Shox race-inspired Motorsports themed livery
• Laser Etched FOX Logo Shock Caps
• Roof-mounted LED bar

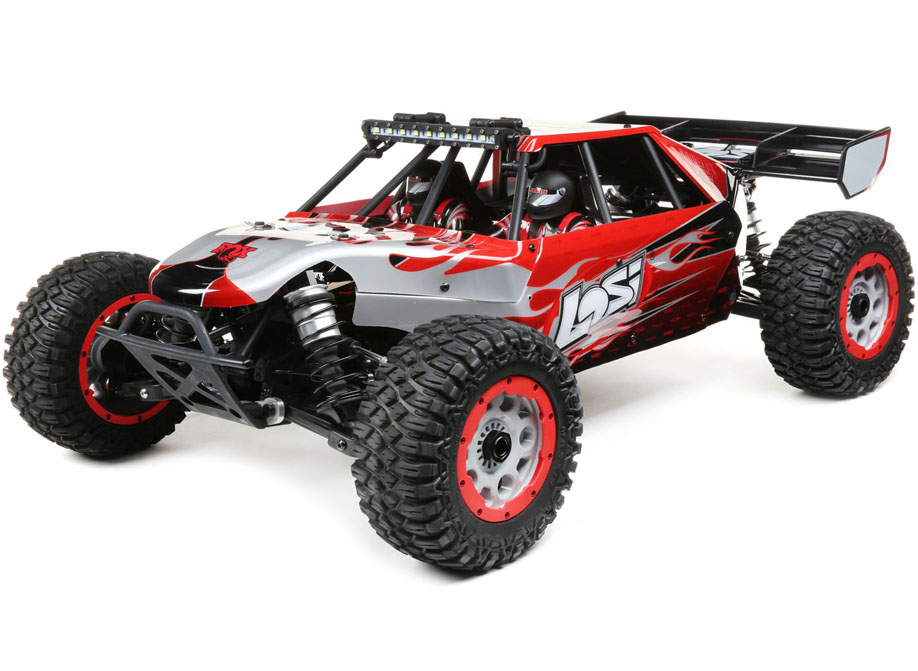

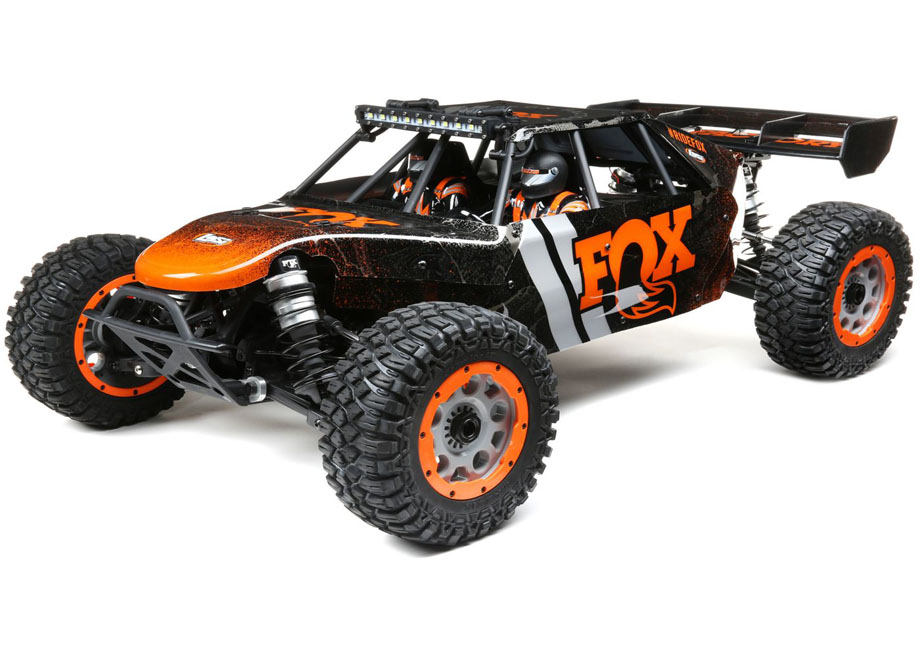

Overview

The original DBXL-E set the world on fire as the go-to vehicle for large scale bashers and enthusiasts alike. Its agile handling, out of the box speeds and durability make it a fan favorite. Now the Losi® DBXL-E 2.0 continues to build on the legendary status! Known worldwide for their dominance in the gas 1/5 market, especially with the 5IVE-T 2.0, Losi has built the DBXL-E 2.0 to be cleaner and easier to use, but with performance and speed that outruns the competition. At home in any environment from dirt to pavement, wet or dry, especially with its 4WD drivetrain with larger 5mm drive pins, the desert buggy makes sure all the power is put to the ground. Drivers stay in control with a DX2E Active™ transmitter, a Spektrum SR6100AT 6 Channel AVC® Telemetry Surface Receiver, and scale-to-size Maxxis Creepy Crawler LT tires. This desert buggy features all the technological advances drivers demand including the Spektrum Firma® 160 Amp Brushless Smart ESC and Spektrum Firma 4-Pole 780Kv Brushless Motor allowing you to hit 50+ MPH with an 8 cell LiPo battery. Finally, the DBXL-E 2.0 has a Losi and Fox Shox race-inspired motorsports themed livery for that true off-road look. You get all this and more from the brand that represents the pinnacle of performance.

Needed to Complete

• (2) Spektrum 14.8V 5000mAh 4S 100C Smart LiPo, Hardcase, IC5 (SPMX50004S100H5)
• (2) Spektrum 14.8v 5000 mAh 4s 50C Smart LiPo Hardcase IC5 (SPMC50004S50H5)
• Spektrum Smart S2100 AC Charger, 2x100W (SPMXC1010)

What's in the Box?

• (1) Losi® DBXL-E 2.0 Desert Buggy
• (1) Spektrum Firma® 160 Amp Brushless Smart ESC
• (1) Spektrum Firma 4-Pole 780Kv Brushless Motor
• (1) Spektrum DX2E Active Transmitter
• (1) User Manual
