Wide Area Augmentation System

From Wikipedia, the free encyclopedia

Jump to: navigation, search

"WAAS" redirects here. For other uses of the acronym "WAAS", see WAAS (disambiguation).

FAA WAAS logo

WAAS system overview

The Wide Area Augmentation System (WAAS) is an air navigation aid developed by the Federal Aviation Administration to augment the Global Positioning System (GPS), with the goal of improving its accuracy, integrity, and availability. Essentially, WAAS is intended to enable aircraft to rely on GPS for all phases of flight, including precision approaches to any airport within its coverage area.^[1] It may be further enhanced with the Local Area Augmentation System (LAAS) in critical areas.

WAAS uses a network of ground-based reference stations, in North America and Hawaii, to measure small variations in the GPS satellites' signals in the western hemisphere. Measurements from the reference stations are routed to master stations, which queue the received Deviation Correction (DC) and send the correction messages to geostationary WAAS satellites in a timely manner (every 5 seconds or better). Those satellites broadcast the correction messages back to Earth, where WAAS-enabled GPS receivers use the corrections while computing their positions to improve accuracy.

The International Civil Aviation Organization (ICAO) calls this type of system a satellite-based augmentation system (SBAS). Europe and Asia are developing their own SBASs, the Indian GPS Aided Geo Augmented Navigation (GAGAN), the European Geostationary Navigation Overlay Service (EGNOS) and the Japanese Multi-functional Satellite Augmentation System (MSAS), respectively. Commercial systems include StarFire and OmniSTAR.

Contents

 [hide]

• 1 WAAS objectives
  • 1.1 Accuracy
  • 1.2 Integrity
  • 1.3 Availability
• 2 Operation
  • 2.1 Ground segment
    • 2.1.1 Reference stations
  • 2.2 Space segment
  • 2.3 User segment
• 3 History and development
  • 3.1 Timeline
• 4 Comparison of accuracy
• 5 Benefits
• 6 Drawbacks and limitations
• 7 Future of WAAS
  • 7.1 Improvement to aviation operations
  • 7.2 Software improvements
  • 7.3 Space segment upgrades
• 8 See also
• 9 References
• 10 External links

WAAS objectives[edit]

Typical WAAS service area. Dark red indicates best WAAS coverage. The service contours change over time with satellite geometry and ionospheric conditions.

Accuracy[edit]

The WAAS specification requires it to provide a position accuracy of 7.6 metres (25 ft) or less (for both lateral and vertical measurements), at least 95% of the time.^[2] Actual performance measurements of the system at specific locations have shown it typically provides better than 1.0 metre (3 ft 3 in) laterally and 1.5 metres (4 ft 11 in) vertically throughout most of the contiguous United States and large parts of Canada and Alaska.^[3] With these results, WAAS is capable of achieving the required Category I precision approach accuracy of 16 metres (52 ft) laterally and 4.0 metres (13.1 ft) vertically.^[4]

Integrity[edit]

Integrity of a navigation system includes the ability to provide timely warnings when its signal is providing misleading data that could potentially create hazards. The WAAS specification requires the system detect errors in the GPS or WAAS network and notify users within 6.2 seconds.^[2] Certifying that WAAS is safe for instrument flight rules (IFR) (i.e. flying in the clouds) requires proving there is only an extremely small probability that an error exceeding the requirements for accuracy will go undetected. Specifically, the probability is stated as 1×10⁻⁷, and is equivalent to no more than 3 seconds of bad data per year. This provides integrity information equivalent to or better than Receiver Autonomous Integrity Monitoring (RAIM).^[5]

Availability[edit]

Availability is the probability that a navigation system meets the accuracy and integrity requirements. Before the advent of WAAS, GPS specifications allowed for system unavailability for as much as a total time of four days per year (99% availability).^{[citation needed]} The WAAS specification mandates availability as 99.999% (five nines) throughout the service area, equivalent to a downtime of just over 5 minutes per year.^[2][5]

Operation[edit]

WAAS reference station in Barrow, Alaska

As with GPS in general, WAAS is composed of three main segments: the ground segment, space segment, and user segment.

Ground segment[edit]

The ground segment is composed of multiple Wide-area Reference Stations (WRS). These precisely surveyed ground stations monitor and collect information on the GPS signals, then send their data to three Wide-area Master Stations (WMS) using a terrestrial communications network. The reference stations also monitor signals from WAAS geostationary satellites, providing integrity information regarding them as well. As of October 2007 there were 38 WRSs: twenty in the contiguous United States (CONUS), seven in Alaska, one in Hawaii, one in Puerto Rico, five in Mexico, and four in Canada.^[6][7]

Using the data from the WRS sites, the WMSs generate two different sets of corrections: fast and slow. The fast corrections are for errors which are changing rapidly and primarily concern the GPS satellites' instantaneous positions and clock errors. These corrections are considered user position-independent, which means they can be applied instantly by any receiver inside the WAAS broadcast footprint. The slow corrections include long-term ephemeric and clock error estimates, as well as ionospheric delay information. WAAS supplies delay corrections for a number of points (organized in a grid pattern) across the WAAS service area^[1] (see User Segment, below, to understand how these corrections are used).

Once these correction messages are generated, the WMSs send them to two pairs of Ground Uplink Stations (GUS), which then transmit to satellites in the Space segment for rebroadcast to the User segment.^[8]

Reference stations[edit]

Each FAA Air Route Traffic Control Center in the 50 states has a WAAS reference station, except for Indianapolis. There are also stations positioned in Canada, Mexico and Puerto Rico.^[1] See List of WAAS reference stations for the coordinates of the individual receiving antennas.^[9]

Space segment[edit]

The space segment consists of multiple communication satellites which broadcast the correction messages generated by the WAAS Master Stations for reception by the user segment. The satellites also broadcast the same type of range information as normal GPS satellites, effectively increasing the number of satellites available for a position fix. The space segment consists of three commercial satellites: Inmarsat-4 F3, Telesat's Anik F1R, and Intelsat's Galaxy 15.^[10]

The original two WAAS satellites, named Pacific Ocean Region (POR) and Atlantic Ocean Region-West (AOR-W), were leased space on Inmarsat III satellites. These satellites ceased WAAS transmissions on July 31, 2007. With the end of the Inmarsat lease approaching, two new satellites (Galaxy 15 and Anik F1R) were launched in late 2005. Galaxy 15 is a PanAmSat, and Anik F1R is a Telesat. As with the previous satellites, these are leased services under the FAA's Geostationary Satellite Communications Control Segment contract with Lockheed Martin for WAAS geostationary satellite leased services, who is contracted to provide up to three satellites through the year 2016.^[11] A third satellite was later added to the system. From March to November 2010, the FAA broadcast a WAAS test signal on a leased transponder on the Inmarsat-4 F3 satellite.^[12] The test signal was not usable for navigation, but could be received and was reported with the identification numbers PRN 133 (NMEA #46). In November 2010, the signal was certified as operational and made available for navigation.^[13]

Satellite Name & Details	PRN	NMEA	Location
Inmarsat-4 F3	133	46	98°W
Galaxy 15	135	48	133°W
Anik F1R	138	51	107.3°W
Pacific Ocean Region (POR) Ceased WAAS transmissions	134	47	178°E
Atlantic Ocean Region-West Ceased WAAS transmissions	122	35	54°W, later moved to 142°W[14]

In the table above, PRN is the satellite's actual Pseudo-Random Noise code. NMEA is the satellite number sent by some receivers when outputting satellite information. ( NMEA = PRN - 87 ).

EUTELSAT 117 West B, launched on 15 June 2016, also has a WAAS transmitter.

User segment[edit]

The user segment is the GPS and WAAS receiver, which uses the information broadcast from each GPS satellite to determine its location and the current time, and receives the WAAS corrections from the Space segment. The two types of correction messages received (fast and slow) are used in different ways.

The GPS receiver can immediately apply the fast type of correction data, which includes the corrected satellite position and clock data, and determines its current location using normal GPS calculations. Once an approximate position fix is obtained the receiver begins to use the slow corrections to improve its accuracy. Among the slow correction data is the ionospheric delay. As the GPS signal travels from the satellite to the receiver, it passes through the ionosphere. The receiver calculates the location where the signal pierced the ionosphere and, if it has received an ionospheric delay value for that location, corrects for the error the ionosphere created.

While the slow data can be updated every minute if necessary, ephemeris errors and ionosphere errors do not change this frequently, so they are only updated every two minutes and are considered valid for up to six minutes.^[15]

History and development[edit]

This section needs additional citations for verification. Please help improve this article by adding citations to reliable sources. Unsourced material may be challenged and removed. (December 2006) (Learn how and when to remove this template message)

The WAAS was jointly developed by the United States Department of Transportation (DOT) and the Federal Aviation Administration (FAA) as part of the Federal Radionavigation Program (DOT-VNTSC-RSPA-95-1/DOD-4650.5), beginning in 1994, to provide performance comparable to category 1 instrument landing system (ILS) for all aircraft possessing the appropriately certified equipment.^[1] Without WAAS, ionospheric disturbances, clock drift, and satellite orbit errors create too much error and uncertainty in the GPS signal to meet the requirements for a precision approach (see GPS sources of error). A precision approach includes altitude information and provides course guidance, distance from the runway, and elevation information at all points along the approach, usually down to lower altitudes and weather minimums than non-precision approaches.

Prior to the WAAS, the U.S. National Airspace System (NAS) did not have the ability to provide lateral and vertical navigation for precision approaches for all users at all locations. The traditional system for precision approaches is the instrument landing system (ILS), which used a series of radio transmitters each broadcasting a single signal to the aircraft. This complex series of radios needs to be installed at every runway end, some offsite, along a line extended from the runway centerline, making the implementation of a precision approach both difficult and very expensive. The ILS system is composed of 180 different transmitting antennas at each point built. The newer system is free of huge antenna systems at each airport.^{[according to whom?]}

For some time the FAA and NASA developed a much improved system, the microwave landing system (MLS). The entire MLS system for a particular approach was isolated in one or two boxes located beside the runway, dramatically reducing the cost of implementation. MLS also offered a number of practical advantages that eased traffic considerations, both for aircraft and radio channels. Unfortunately, MLS would also require every airport and aircraft to upgrade their equipment.

During the development of MLS, consumer GPS receivers of various quality started appearing. GPS offered a huge number of advantages to the pilot, combining all of an aircraft's long-distance navigation systems into a single easy-to-use system, often small enough to be hand held. Deploying an aircraft navigation system based on GPS was largely a problem of developing new techniques and standards, as opposed to new equipment. The FAA started planning to shut down their existing long-distance systems (VOR and NDBs) in favor of GPS. This left the problem of approaches, however. GPS is simply not accurate enough to replace ILS systems. Typical accuracy is about 15 metres (49 ft), whereas even a "CAT I" approach, the least demanding, requires a vertical accuracy of 4 metres (13 ft).

This inaccuracy in GPS is mostly due to large "billows" in the ionosphere, which slow the radio signal from the satellites by a random amount. Since GPS relies on timing the signals to measure distances, this slowing of the signal makes the satellite appear farther away. The billows move slowly, and can be characterized using a variety of methods from the ground, or by examining the GPS signals themselves. By broadcasting this information to GPS receivers every minute or so, this source of error can be significantly reduced. This led to the concept of Differential GPS, which used separate radio systems to broadcast the correction signal to receivers. Aircraft could then install a receiver which would be plugged into the GPS unit, the signal being broadcast on a variety of frequencies for different users (FM radio for cars, longwave for ships, etc.). Broadcasters of the required power generally cluster around larger cities, making such DGPS systems less useful for wide-area navigation. Additionally, most radio signals are either line-of-sight, or can be distorted by the ground, which made DGPS difficult to use as a precision approach system or when flying low for other reasons.

The FAA considered systems that could allow the same correction signals to be broadcast over a much wider area, such as from a satellite, leading directly to WAAS. Since a GPS unit already consists of a satellite receiver, it made much more sense to send out the correction signals on the same frequencies used by GPS units, than to use an entirely separate system and thereby double the probability of failure. In addition to lowering implementation costs by "piggybacking" on a planned satellite launch, this also allowed the signal to be broadcast from geostationary orbit, which meant a small number of satellites could cover all of North America.

On July 10, 2003, the WAAS signal was activated for general aviation, covering 95% of the United States, and portions of Alaska offering 350 feet (110 m) minimums.

On January 17, 2008, Alabama-based Hickok & Associates became the first designer of helicopter WAAS with Localizer Performance (LP) and Localizer Performance with Vertical guidance (LPV) approaches, and the only entity with FAA-approved criteria (which even FAA has yet to develop).^[16][17][18] This helicopter WAAS criteria offers as low as 250 foot minimums and decreased visibility requirements to enable missions previously not possible. On April 1, 2009, FAA AFS-400 approved the first three helicopter WAAS GPS approach procedures for Hickok & Associates' customer California Shock/Trauma Air Rescue (CALSTAR). Since then they have designed many approved WAAS helicopter approaches for various EMS hospitals and air providers, within the United States as well as in other countries and continents.

On December 30, 2009, Seattle-based Horizon Air flew the first scheduled-passenger service flight^[19] using WAAS with LPV on flight 2014, a Portland to Seattle flight operated by a Bombardier Q400 with a WAAS FMS from Universal Avionics. The airline, in partnership with the FAA, will outfit seven Q400-aircraft with WAAS and share flight data to better determine the suitability of WAAS in scheduled air service applications.

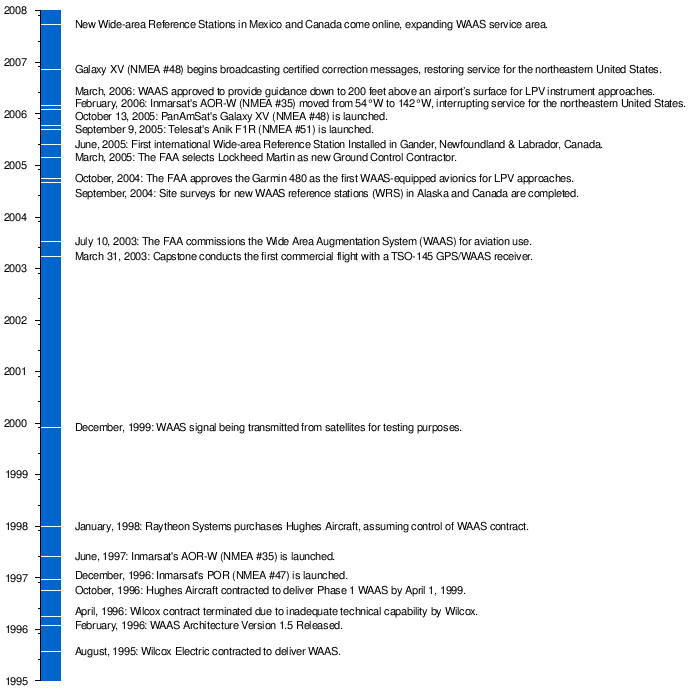

Timeline[edit]

Wide-Area Augmentation System (WAAS) Timeline[hide]

Comparison of accuracy[edit]

A comparison of various radionavigation system accuracies

System	95% Accuracy (Lateral / Vertical)	Details
LORAN-C Specification	460 m / 460 m	The specified absolute accuracy of the LORAN-C system.
Distance Measuring Equipment (DME) Specification	185 m (Linear)	DME is a radionavigation aid that can calculate the linear distance from an aircraft to ground equipment.
GPS Specification	100 m / 150 m	The specified accuracy of the GPS system with the Selective Availability (SA) option turned on. SA was employed by the U.S. Government until May 1, 2000.
LORAN-C Measured Repeatability	50 m / 50 m	The U.S. Coast Guard reports "return to position" accuracies of 50 meters in time difference mode.
eLORAN Repeatability		Modern LORAN-C receivers, which use all the available signals simultaneously and H-field antennas.
Differential GPS (DGPS)	10 m / 10 m	This is the Differential GPS (DGPS) worst-case accuracy. According to the 2001 Federal Radionavigation Systems (FRS) report published jointly by the U.S. DOT and Department of Defense (DoD), accuracy degrades with distance from the facility; it can be < 1 m but will normally be < 10 m.
Wide Area Augmentation System (WAAS) Specification	7.6 m / 7.6 m	The worst-case accuracy that the WAAS must provide to be used in precision approaches.
GPS Measured	2.5 m / 4.7 m	The actual measured accuracy of the system (excluding receiver errors), with SA turned off, based on the findings of the FAA's National Satellite Test Bed, or NSTB.
WAAS Measured	0.9 m / 1.3 m	The actual measured accuracy of the system (excluding receiver errors), based on the NSTB's findings.
Local Area Augmentation System (LAAS) Specification		The goal of the LAAS program is to provide Category IIIC ILS capability. This will allow aircraft to land with zero visibility utilizing 'autoland' systems and will indicate a very high accuracy of < 1 m.[20]

Benefits[edit]

WAAS ground uplink station (GUS) in Napa, California

WAAS addresses all of the "navigation problem", providing highly accurate positioning that is extremely easy to use, for the cost of a single receiver installed on the aircraft. Ground- and space-based infrastructure is relatively limited, and no on-airport system is needed. WAAS allows a precision approach to be published for any airport, for the cost of developing the procedures and publishing the new approach plates. This means that almost any airport can have a precision approach and the cost of implementation is dramatically reduced.

Additionally WAAS works just as well between airports. This allows the aircraft to fly directly from one airport to another, as opposed to following routes based on ground-based signals. This can cut route distances considerably in some cases, saving both time and fuel. In addition, because of its ability to provide information on the accuracy of each GPS satellite's information, aircraft equipped with WAAS are permitted to fly at lower en-route altitudes than was possible with ground-based systems, which were often blocked by terrain of varying elevation. This enables pilots to safely fly at lower altitudes, not having to rely on ground-based systems. For unpressurized aircraft, this conserves oxygen and enhances safety.

The above benefits create not only convenience, but also have the potential to generate significant cost savings. The cost to provide the WAAS signal, serving all 5,400 public use airports, is just under US$50 million per year. In comparison, the current ground based systems such as the Instrument Landing System (ILS), installed at only 600 airports, cost US$82 million in annual maintenance.^{[citation needed]} Without ground navigation hardware to purchase, the total cost of publishing a runway's WAAS approach is approximately US$50,000; compared to the $1,000,000 to $1,500,000 cost to install an ILS radio system.^[21]

Further savings can come from the nighttime closure of airport towers with a low volume of traffic. The FAA is reviewing 48 towers for such a potential reduction of services, which it estimates will save around US$100,000 per year at each tower, for a total annual savings of nearly US$5 million.^[22]

Drawbacks and limitations[edit]

For all its benefits, WAAS is not without drawbacks and critical limitations:

• Space weather. All man-made satellite systems are subject to space weather and space debris threats. For example, a solar super-storm event composed of an extremely large and fast earthbound Coronal Mass Ejection (CME) could disable the geosynchronous or GPS satellite elements of WAAS.
• The broadcasting satellites are geostationary, which causes them to be less than 10° above the horizon for locations north of 71.4° latitude. This means aircraft in areas of Alaska or northern Canada may have difficulty maintaining a lock on the WAAS signal.^[23]
• To calculate an ionospheric grid point's delay, that point must be located between a satellite and a reference station. The low number of satellites and ground stations limit the number of points which can be calculated.
• Aircraft conducting WAAS approaches must possess certified GPS receivers, which are much more expensive than non-certified units. In 2006, Garmin's least expensive certified receiver, the GNS 430W, had a suggested retail price of US$10,750.^[24]
• WAAS is not capable of the accuracies required for Category II or III ILS approaches. Thus, WAAS is not a sole-solution and either existing ILS equipment must be maintained or it must be replaced by new systems, such as the Local Area Augmentation System (LAAS).^[25]
• WAAS Localizer Performance with Vertical guidance (LPV) approaches with 200-foot minimums will not be published for airports without medium intensity lighting, precision runway markings and a parallel taxiway. Smaller airports, which currently may not have these features, would have to upgrade their facilities or require pilots to use higher minimums.^[21]
• As precision increases and error approaches zero, the navigation paradox states that there is an increased collision risk, as the likelihood of two craft occupying the same space on the shortest distance line between two navigational points has increased.

Future of WAAS[edit]

Improvement to aviation operations[edit]

In 2007, WAAS vertical guidance was projected to be available nearly all the time (greater than 99%), and its coverage encompasses the full continental U.S., most of Alaska, northern Mexico, and southern Canada.^[26] At that time, the accuracy of WAAS would meet or exceed the requirements for Category 1 ILS approaches, namely, three-dimensional position information down to 200 feet (60 m) above touchdown zone elevation.^[4]

Software improvements[edit]

Software improvements, to be implemented by September 2008, significantly improve signal availability of vertical guidance throughout the CONUS and Alaska. Area covered by the 95% available LPV solution in Alaska improves from 62% to 86%. And in the CONUS, the 100% availability LPV-200 coverage rises from 48% to 84%, with 100% coverage of the LPV solution.^[7]

Space segment upgrades[edit]

Both Galaxy XV (PRN #135) and Anik F1R (PRN #138) contain an L1 & L5 GPS payload. This means they will potentially be usable with the L5 modernized GPS signals when the new signals and receivers become available. With L5, avionics will be able to use a combination of signals to provide the most accurate service possible, thereby increasing availability of the service. These avionics systems will use ionospheric corrections broadcast by WAAS, or self-generated onboard dual frequency corrections, depending on which one is more accurate.^[27]

See also[edit]

• Satellite-based augmentation system (SBAS)
• EGNOS - the European operational SBAS
• Quasi-Zenith Satellite System (QZSS), the proposed Japanese SBAS
• GPS and Geo Augmented Navigation (GAGAN), the Indian SBAS, currently under implementation.
• CDGPS Canadian Differential GPS
• Local Area Augmentation System (LAAS)
• Joint Precision Approach and Landing System (JPALS)
• Distance measuring equipment (DME)
• Instrument flight rules (IFR)
• Instrument landing system (ILS)
• Long-range radio navigation (LORAN)
• Microwave landing system (MLS)
• Non-directional beacon (NDB)
• Tactical air navigation system (TACAN)
• Transponder landing system (TLS)
• VHF omnidirectional range (VOR)
• Localizer performance with vertical guidance (LPV)

References[edit]

• U.S. Department Of Transportation & Federal Aviation Administration, Specification for the Wide Area Augmentation System (WAAS)

1. ^ Jump up to: ^{a b c d} Federal Aviation Administration (FAA) FAQ for WAAS
2. ^ Jump up to: ^{a b c} FAA. Specification for the Wide Area Augmentation System(WAAS). FAA-E- 2892b. August 13, 2001.
3. Jump up ^ National Satellite Test Bed (NSTB), WAAS PAN Report (July 2006). Retrieved November 22nd, 2006.
4. ^ Jump up to: ^{a b} Federal Aviation Administration (FAA), Press Release FAA Announces Major Milestone for Wide Area Augmentation System (WAAS). March 24, 2006.
5. ^ Jump up to: ^{a b} US House of Representatives Committee on Transportation's Subcommittee on Aviation Hearing on Cost Overruns & Delays in the FAA's Wide Area Augmentation System (WAAS) & Related Radio Spectrum Issues. June 29, 2000
6. Jump up ^ News release from FAA announcing WAAS expansion into Mexico and Canada
7. ^ Jump up to: ^{a b} FAA presentation, WAAS and LAAS status at 47th meeting of the Civil Global Positioning System Service Interface Committee, September 25, 2007
8. Jump up ^ Federal Aviation Administration (FAA), National Airspace System Architecture, Ground Uplink Stations
9. Jump up ^ NSTB/WAAS T&E Team (October 2008). "Wide-Area Augmentation System Performance Analysis Report #26" (PDF). Atlantic City International Airport, New Jersey: FAA/William J. Hughes Technical Center. pp. 93–95. Retrieved 2009-01-17.
10. Jump up ^ WAAS PRN 135 Resumes Normal Operation. March 18, 2011. Accessed November 21, 2011.
11. Jump up ^ Federal Aviation Administration (FAA) Announcement March 2005
12. Jump up ^ FAA: New WAAS GEO to Begin Broadcasting in Test Mode in March (2010). January 19, 2010. Accessed November 21, 2011.
13. Jump up ^ WAAS Intelsat GEO Satellite Ceases Broadcast. December 16, 2010. Accessed November 21, 2011.
14. Jump up ^ The Satellite Encyclopedia - Inmarsat 3F4. Accessed October 28, 2013.
15. Jump up ^ "DGPS on Garmin Receivers". Retrieved 2007-04-13.
16. Jump up ^ http://www.ainonline.com/news/single-news-page/article/waas-approaches-coming-to-heliports/?no_cache=1&cHash=a7ee70cd1a
17. Jump up ^ http://www.flttechonline.com/Current/Hickok%20and%20Associates%20Developing%20WAAS%20Approaches%20for%20Helicopters.htm
18. Jump up ^ http://www.ainonline.com/ain-and-ainalerts/aviation-international-news/single-publication-story/browse/0/article/owners-responsible-for-private-helo-approaches/?no_cache=1&tx_ttnews[mode]=1
19. Jump up ^ "Horizon Makes Aviation History with First WAAS Flight".
20. Jump up ^ Aircraft Instrumentation and Systems. page 279 chapter "9. Aircraft Navigation Systems" section "2 Ground Based Augmentation Systems"
21. ^ Jump up to: ^{a b} Aircraft Owners and Pilots Association, AOPA welcomes improved WAAS minimums. March 7, 2006. Accessed January 6, 2008.
22. Jump up ^ Testimony to US House Aviation Subcommitte by Phil Boyer, dated May 4, 2005
23. Jump up ^ Department of Aeronautics and Astronautics, Stanford University. WAAS Performance in the 2001 Alaska Flight Trials of the High Speed Loran Data Channel. Accessed June 12, 2006.
24. Jump up ^ Garmin International Press Release dated November 9, 2006.
25. Jump up ^ Federal Aviation Administration. WAAS FAQ. Accessed June 12, 2006.
26. Jump up ^ Federal Aviation Administration. WAAS 200ft Minimum Related Questions and Answers. Accessed June 12, 2006.
27. Jump up ^ Federal Aviation Administration (FAA), GPS Modernization Page. Accessed 29 November 2006.
