RHEVM AD(Active Directory)/DNS 설치하기 - 작성중

[이누기]

현재 RHEV 2.2에서는 사용자 정보를 담고 있는 DB를 AD를 사용하고 있다.

그리고 보통 RHEV를 설치하면 기존의 AD(Active Directory)를 사용하지 않고 따로 구성하는 것이 일반적이다.

어쩌면 당연히도 RHEV 자체가 사용자 관리에 따른 권한 ROLE에 대한 관리 자체가 필요 없는 이유도 있다.

그러므로 기존에 사내에서 사용하던 AD와 연결할 이유가 그다지 없다는 의미일 것이다.

하여튼 아래는 RHEV에서 반드시 필요한 AD를 설치하는 방법이다. windows server에서 dcpromo 명령을 통해 설치가 가능하고 이중화 구성도 가능하다.

이에 대한 자세한 정보는 MS사이트 MSDN 사이트에서 좀더 많은 정보를 얻을 수 있다.

AD에 대해서 간단히 말하자면 우선 AD는 WINDOWS 2000 server 부터 나온 MS만의 LDAP 으로 다양하고 유연한 설계를 위해 만들어 놓은 제품이다. 사실 AD 라는 제품자체가 상당히 훌륭한 구조적 개념을 가지고 있다. 포레스트, 멤머, 도메인 ,카탈로그 등에 대한 개념을 이해하면 훨씬 AD에 대해 다가가는 것이 편할 것이다.  다만 RHEV에서는 그러한 AD에 대한 특별한 설계가 필요치는 않다.

다양한 곳에 Active Directory 설치에 대한 강좌가 있으니 참고하면 되겠다.

http://community.365managed.com/?vid=w_service&document_srl=25266

출처: http://rcritical.blogspot.com/2010/11/rhevm-addns-setup.html

RHEVM AD/DNS Setup

Setting up Active Directory and DNS for RHEV Manager

Active Directory acts as the domain controller for the Windows Server 2003 installation. Therefore, Active Directory must be installed and configured before joining RHEV Manager to the domain .

 We need to Create one Active Directory user to  use during the installation of RHEV Manager for administration purpose of  RHEV .

The RHEV Manager server must be configured with a fully qualified name that is resolvable throughout the system by the host and clients. So you need a proper working DNS in you set up  .

In our set up we are going to configure AD/DNS on the same box where we are going to install RHEVM . We also see how to join RHEVM to the existing domain server later in the section and the AD user creation for the RHEV Administration .

AD/DNS Set Up on the same RHEVM System

Computer Name : rhevm

Domain Name : test.example.internal

Full Computer Name: rhevm.test.example.internal

DNS Domain Name: test.example.internal

Reverse Look up Zone Network : 10.10.1.0

DNS Host 1 : rhevh1.test.example.internal(10.10.1.11)

DNS Host 2 : rhevh2.test.example.internal(10.10.1.12)

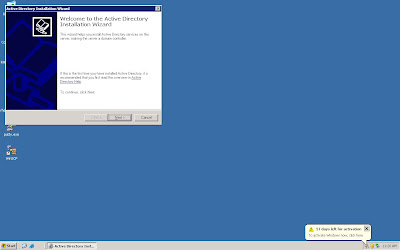

    Go to Start--> Run -->> dcpromo

           Click Next -->> Next

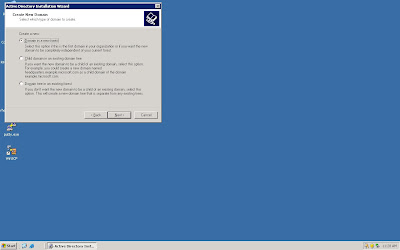

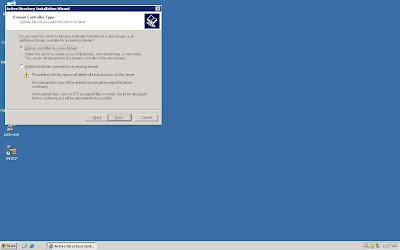

   Select Domain Controller for a New Domain and Click Next

 Select Domain in a New Forest and Click Next

Add the Domain DNS Name example test.example.internal

 Leave the Default NetBios Name as it is and Click Next

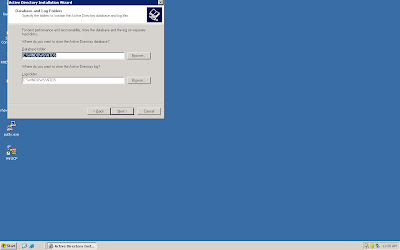

Leave the below valuse Default and Click Next --> Next

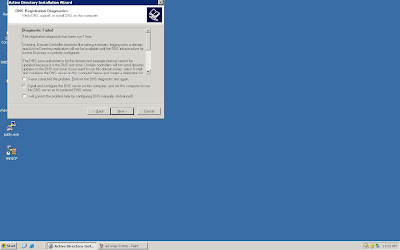

Select Install and configure DNS on this Computer and Click Next

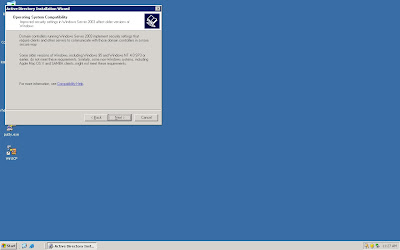

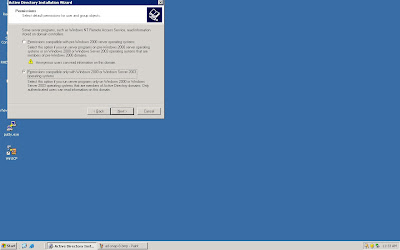

 Select Permission Compatible only with windows 2000 or 2003

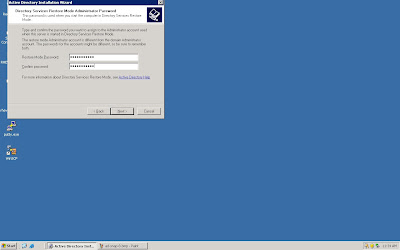

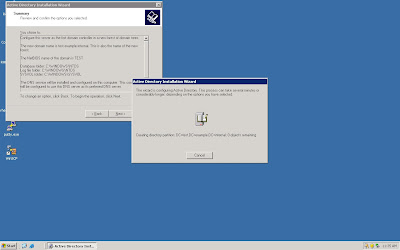

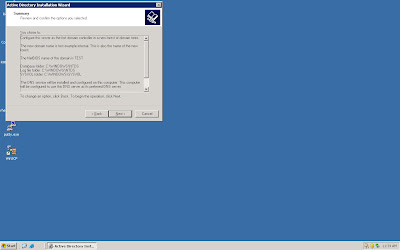

Feed the AD Restore Password and Click Next --> Next  --> Next

Once the Active DIrectory and DNS Service installed , Reboot the server to take effect.

DNS Forward and Reverse Lookup Zone Configuration

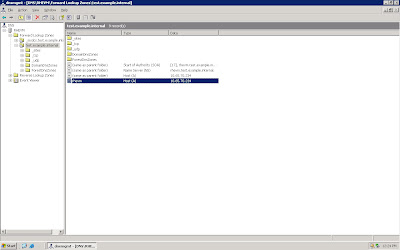

After the server reboot , you should configure the DNS , To do that Go To start -- >> Administrative tools -->> DNS . You will see the forward zone created for the domain test.example.internal with the rhevm pointer to the the rhevm ip .

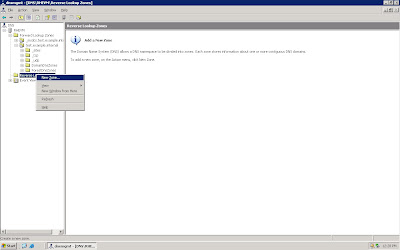

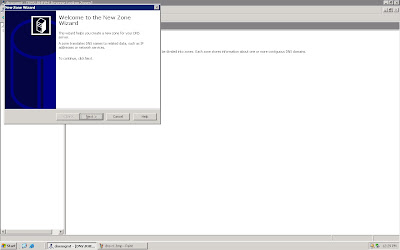

Now its the time to create a Reverse Lookup zone. Select Reverse Lookup Zone -- >> Right Click -->> New Zone --> Next

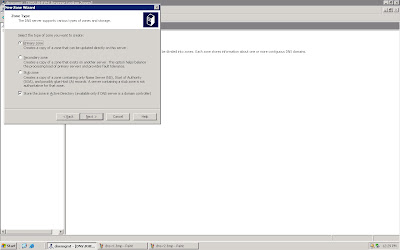

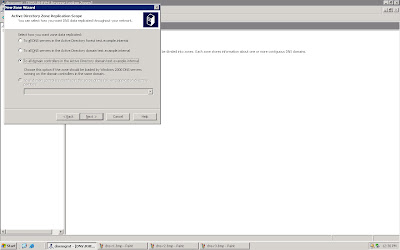

Select Primary Zone and To all Domain Controller on domain test.example.internal on the next screen and Click Next

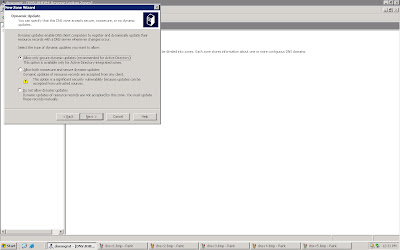

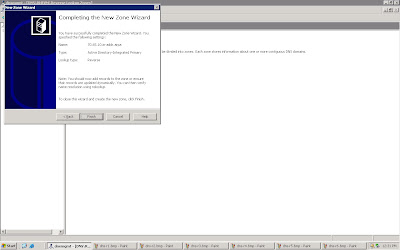

Select Allow only secure Dynamic Updates -->> Next --> Finish

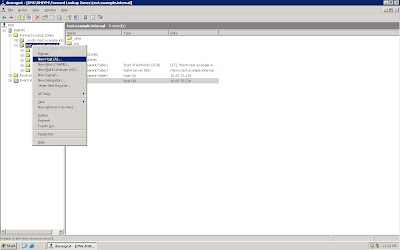

Now we will add new host named rhevh1 to the forward and reverse Look up Zone  Select test.example.internal from the forward lookup zone and Right Click and Select New Host (A)

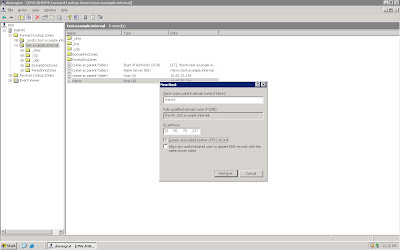

Enter the host name example  rhevh1 and give the appropriate ip to bind with the name we used  10.65.70.231 in our case  and Select Create Associate PTR Record for Revrese Lookup for the host

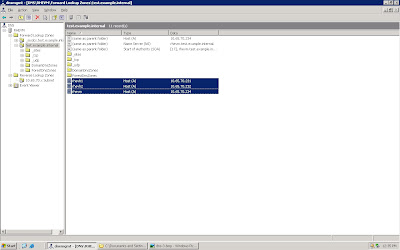

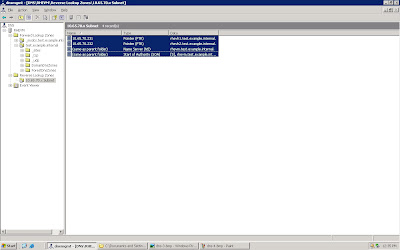

Similarly we added one more host name rhevh2 blinded to the 10.65.70.232 and rhevm own DNS Entry in the forward  and Reverse Lookup Zone of the DNS Server as below .

Finally Refresh the new entry you made by Right Click on Corresponding Forward and Reverse Zone and Refresh . Now you are having the working DNS and AD running on you server and you can verify the DNS you configured  using the nslookup command line from the linux host or from your windows command prompt  .

[paps@paps-standby jpg]$ nslookup
> server 10.65.70.234
Default server: 10.65.70.234
Address: 10.65.70.234#53
> rhevh1.test.example.internal
Server:        10.65.70.234
Address:    10.65.70.234#53

Name:    rhevh1.test.example.internal
Address: 10.65.70.231
> rhevh2.test.example.internal
Server:        10.65.70.234
Address:    10.65.70.234#53

Name:    rhevh2.test.example.internal
Address: 10.65.70.232
> rhevm.test.example.internal
Server:        10.65.70.234
Address:    10.65.70.234#53

Name:    rhevm.test.example.internal
Address: 10.65.70.234
> 10.65.70.234
Server:        10.65.70.234
Address:    10.65.70.234#53

** server can't find 234.70.65.10.in-addr.arpa.: NXDOMAIN
> 10.65.70.231
Server:        10.65.70.234
Address:    10.65.70.234#53

231.70.65.10.in-addr.arpa    name = rhevh1.test.example.internal.
> 10.65.70.232
Server:        10.65.70.234
Address:    10.65.70.234#53

232.70.65.10.in-addr.arpa    name = rhevh2.test.example.internal.

AD User Creation for RHEV Manager Administration

The RHEV admin user credentials are provided during the RHEV Manager installation. This account is used when logging into the RHEV admin portal to manage the system.

The RHEV admin user must have permission to:

1. Add an unlimited number of virtual machines to the domain.
2. Query Active Directory.

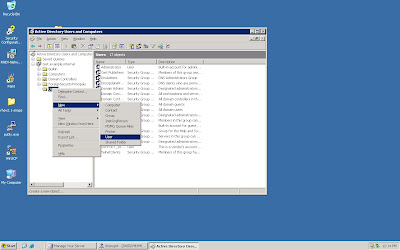

   Start -->> Administrative Tools -->> Active Directory Users and Computers -->>  Right Click On Users -->>New User -->> Feed the Login Credentials and Finish .In our example we used a user called rhevadmin to manage our rhevm infrastructure .

   In order to be able to add more than ten virtual machines to the domain, the user must be a member of either the Account Operators, Domain Admins, or Enterprise Admins group within Active directory. For further information, refer to http://technet.microsoft.com/en-us/library/cc781364(WS.10).aspx

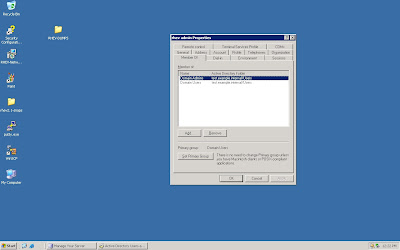

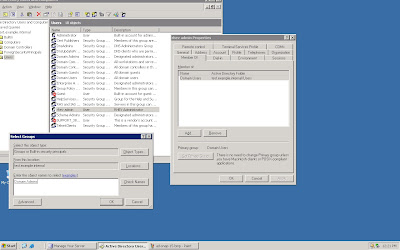

   Now we will give a domain admin rights to that user by selecting the User Properties -->> Member of -->> Add -->> Domain AdmiN Groups --> Select OK.





   Joining RHEVM to the exisitng Domain Controller
       To join an Active Directory domain from Windows Server 2003:
   1. Go to Start, right-click My Computer and select Properties.
   2. Select the Computer Name tab.
   3. Ensure that the Computer description field contains the fully qualified computer name. If not, enter it now.
   4. Click Change....
   5. Enter the domain information and click Ok.
   6. When prompted for the credentials of a user that can join machines to the domain, enter the RHEV administrator user credentials created as per the above AD User Creation for RHEV Steps  Then click Ok.
   7. If successful, a message will be displayed confirm‎ing that the computer has been joined to the domain. Click Ok to continue.
      If a confirmation message was not received, this is likely to be due to one of the following:
      • Domain specified is incorrect.
      • User credentials specified are incorrect.
      • User credentials provided do not have the necessary permissions to join a machine to the domain.
      Check your Active Directory configuration and credentials and try again.
   8. Reboot the machine to complete the process.



      Once it is done you are Ready to Install other RHEVM Components  by following this below URL
      http://rcritical.blogspot.com/2010/11/rhev-manager-21-installation-step-by.htm

[이누기]

MS에서는 AD를 개발할 때 필요한 언어를 제공하고 있는데 보통 ADSI라고 불리고 API형태로 언어들에 제공되고 있다.
