전주전북알씨판매점)1/8 대형트라이얼RC 트랙션하비 크랙스맨 Traction Hobby Cragsman 1:8 4WD 2SPEED DIFF. LOCK TRAIL CRAWLER

[김성준]

김프로RC세상


전북 완주군 삼례읍 과학로476


063-262-7009

테크노RC 취급점

크로스알씨,테크노 차량 파츠 재고 보유중.,,

MT410,ET48 ,SCT410,EB410

PG4L,Pg4a,Pg4s,Gc4m,hc6,Uc6,Mc8,sg4

판매가격:849,000원

조종기별도

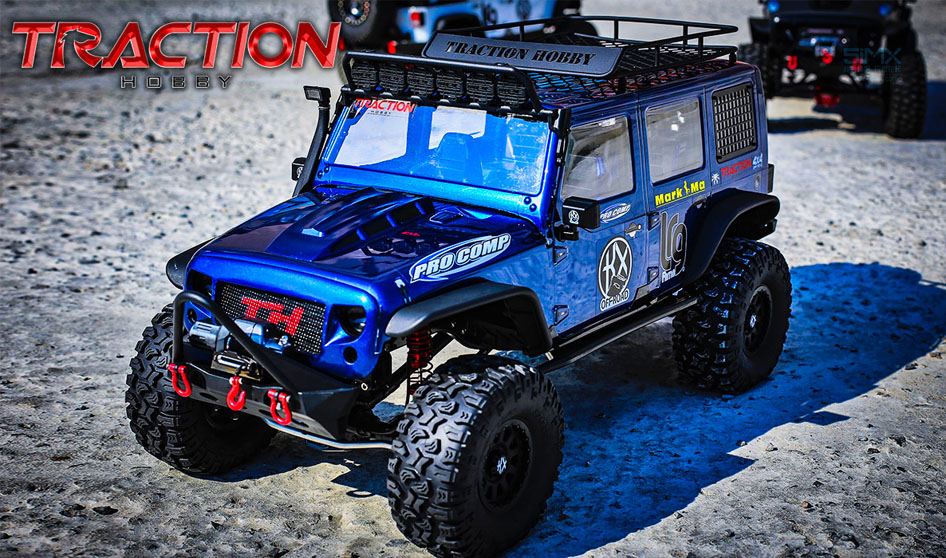

안녕하세요. 이번에 소개해드리는 차량은 1/8 육중한 사이즈의 트랙션하비 크랙스맨이라는 락클 차량입니다.

고퀄리티의 차량이며, 1단 2단 변속미션, 2륜 4륜 변경가능, 또한 디프락기능까지,

하나도 빠지는것 없는 전천후 락클 차량입니다.

현재 84만9천원에 송수신기를 제외한 버젼을 구매하실수있으며,

기능을 전부 쓰실려면 5~6채널 조종기가 필요합니다.

최고급형 락클차량 크랙스맨을 지금 바로 만나보세요!

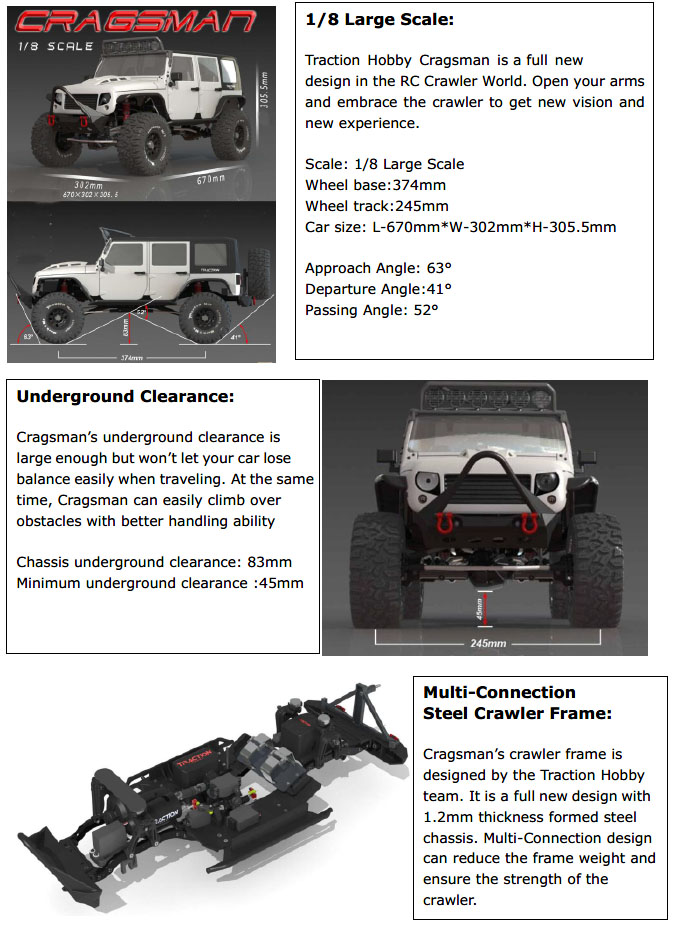

The new Cragsman uses a chassis mounted servo design (CMS) instead of axle mounted. It has a massive 83mm skid plate clearance with a wheelbase of 374mm and the axle clearance is 45mm.

Let's have a look at the highlight features of the 1/8 Cragsman.

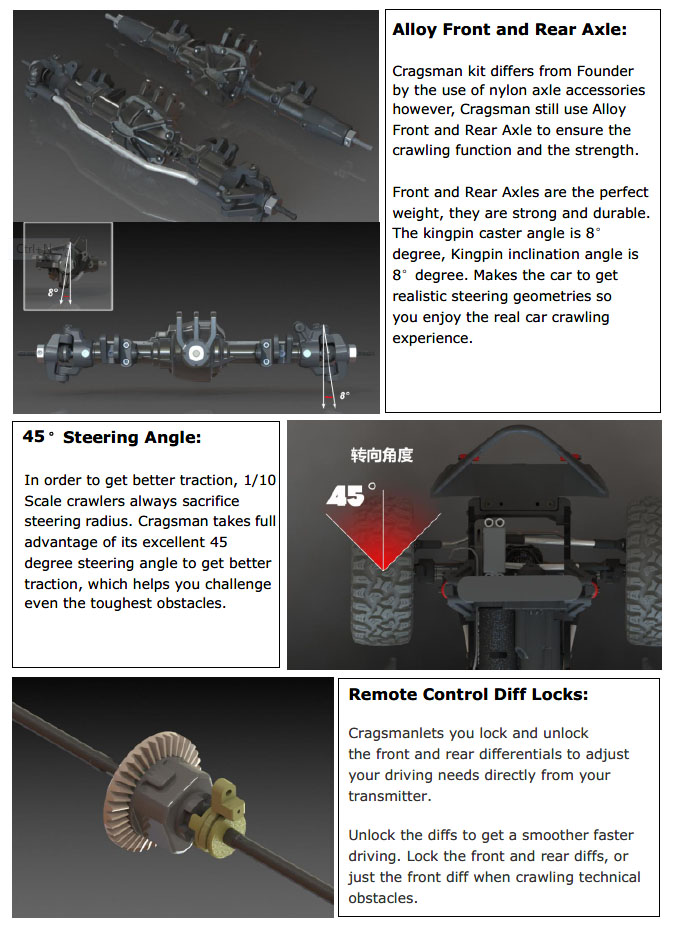

• Aluminum Axles

The axle housings come standard in aluminum. The front and rear axles come out of two separate molds (read on to see why). It has plastic lockouts, C-hubs and knuckles which also help reduce the weight of this beast. The C-hub and knuckle design have a 8 degree caster and an impressive 45 degree steering angle.

• Open/Lock Diffs

This new version comes standard with metal front and rear independent locking diffs, giving you the flexibility to choose which one to lock just by flicking an independent switch for each diff on the transmitter. This means that there is a switch for each lockable diff, not one switch for both diffs.

• Transmission Gear Box, Opposite Direction Output Drive

The transmission gearbox has also had an overhaul. The main transmission gearbox is no longer in the middle of the chassis as it is now moved to the front of the rig with the transfer box being a separate piece. The transfer case has a great feature already built: an opposite direction output drive to help reduce torque twist of this rig. This means the center drivelines now spin in opposite directions. This reduces torque twist to almost non-existence levels. This is the reason why for having two molds for the axles as the bevel gears are in reverse positions.

• 2-Speed Transmission, 2WD/4WD Selection (고속 저속 미션, 2륜4륜 변환가능, 디프락기능)

The main gearbox also features a two speed transmission for Hi or Low gear selected by turning a knob on the 6-channel transmitter (that is included... Wow! Right?) and on the transfer box it you can go 2WD or 4WD turning a button on the transmitter.

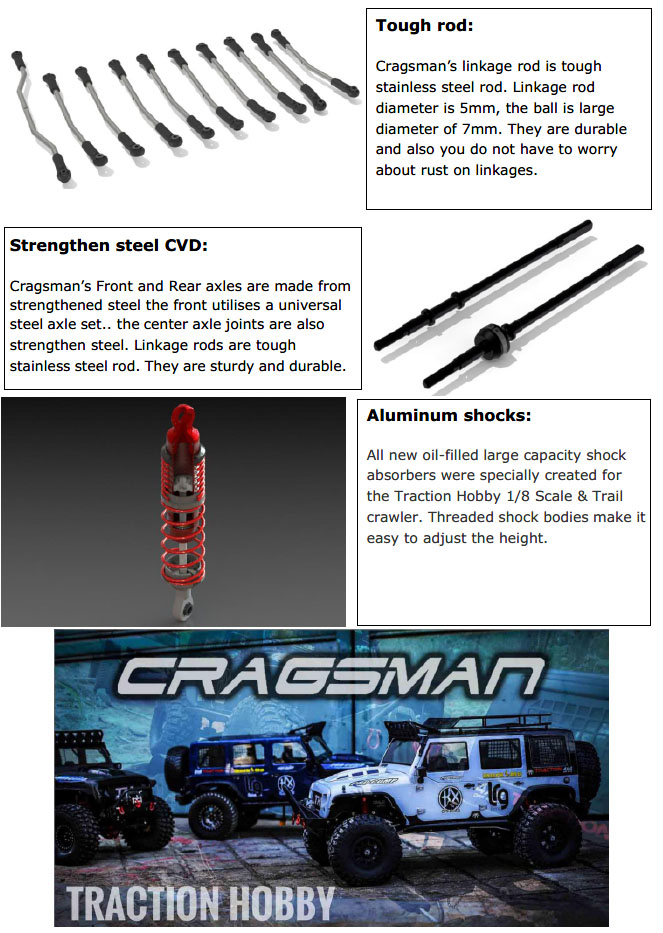

• Drivelines, Links and Shocks

The links are made out of 5mm stainless steel with an M4 thread for the ball ends for extra strength; the lower links are also high clearance links. The front drive shafts are CVD and the front and rear drive shafts are made out of hardened steel for extra strength and durability. To help with flexing its wheels it is fitted with some 110mm aluminum adjustable big bore 2 stage coils over shocks.

• Wheels & Tires

It comes with a licensed ProComp 2.2 wheel/rim that is molded plastic and is a glue on wheel. The ProComp wheel do not come glued to the tires which you can save the tires for optional beadlocks. The stock tires are soft, which should do well on many different terrains. The size is 135mm X 56mm 2.2, licensed Mark Ma tire with an aggressive tread pattern for better traction and performance.

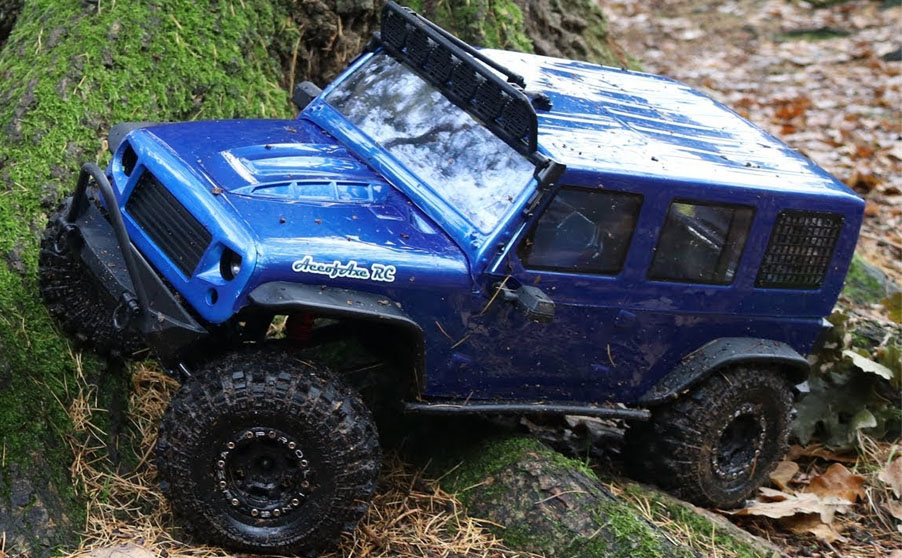

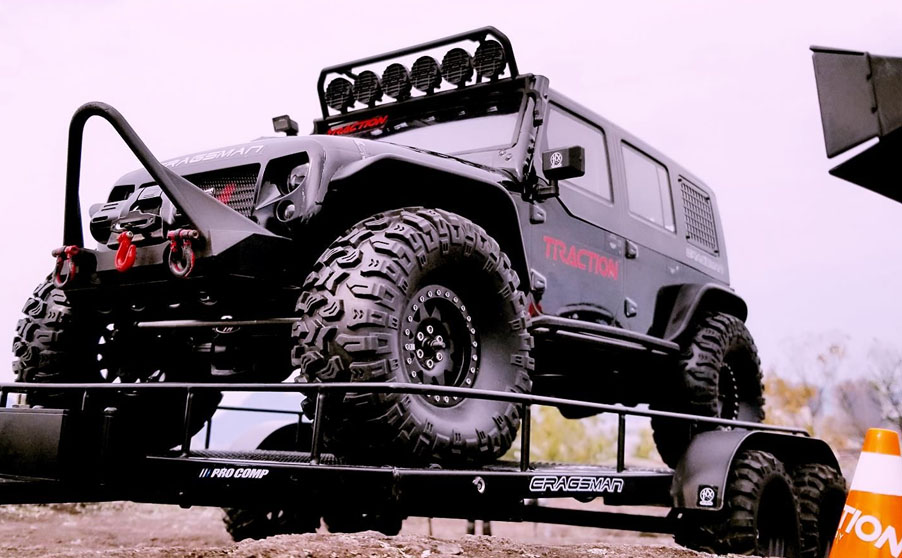

• Body & Accessories

The body is aggressive looking and the scale is superb. The body is made out of lexan and is lightweight. It includes a plastic roll cage and give you the open top option. The wide body fenders are plastic and comes with adjustable side mirrors. The body is also held on by some magnetic stealth mounts and Velcro so there is no need for body pins or screws to hold the pre-painted body in place. The body comes with all light buckets for the front and rear headlights and taillights. The roof lights also include light buckets. They do not come with LEDs so you will need to add your own set of lights.
