오늘 발표된 2008 혼다 모델중 600RR

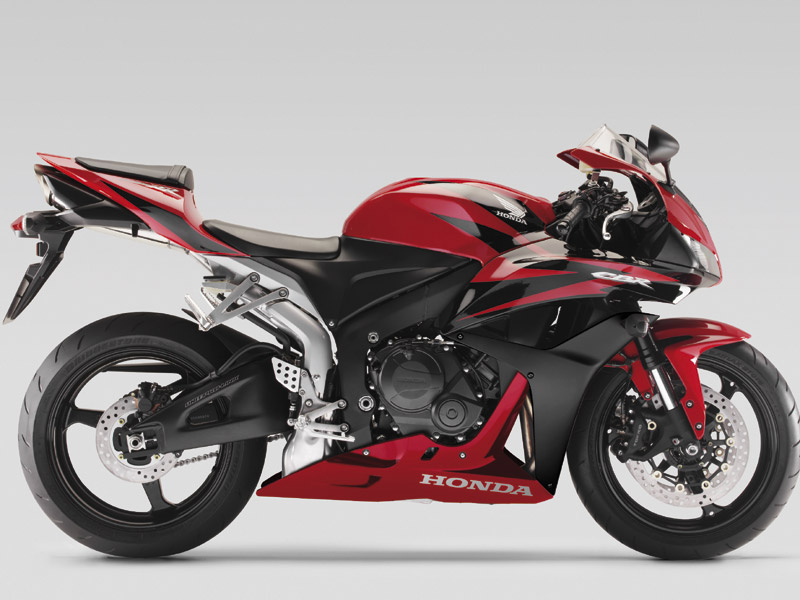

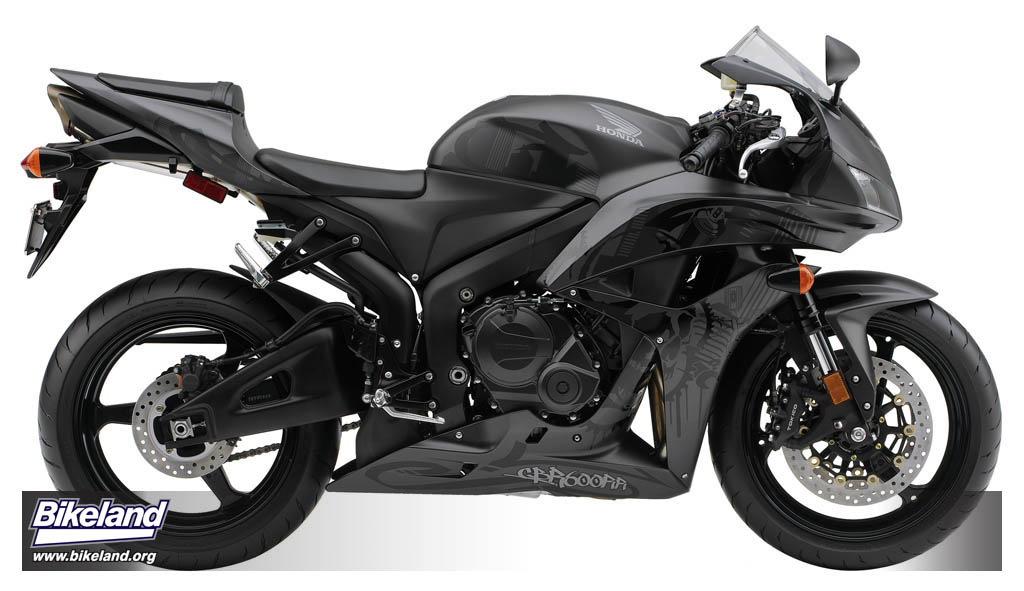

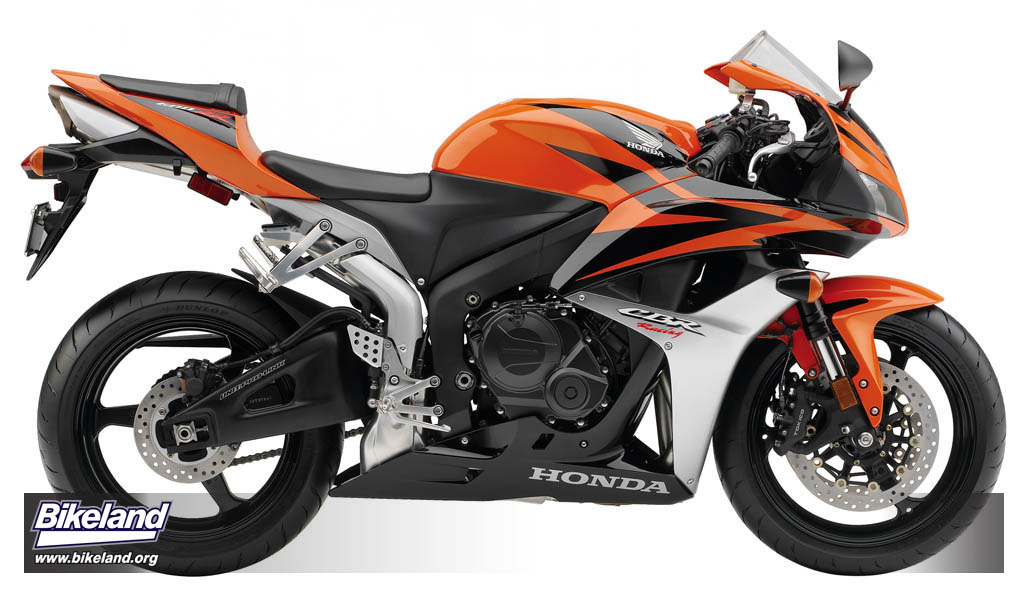

색상은.. Red/Black, Pearl Orange/Black, Metallic Silver, and Graffiti (북미 기준)가 있다고 하네요.
제일 첫 사진이 그래피티 색상입니다.

다음은 공개된 스펙입니다.

Specification

Engine/Drivetrain

* Liquid-cooled DOHC 16-valve 599cc four-stroke inline four-cylinder engine features oversquare bore and stroke of 67mm x 42.5mm.
* Idle-air control valve (IACV) minimizes torque reaction and smoothes response to small throttle changes through gradual reductions of air and fuel intake.
* Oil jets located beneath the pistons for extra friction reduction and cooling.
* Iridium-tip spark plugs improve fuel combustion and performance.
* Non-resonance knock sensor maintains optimum spark advance while constantly monitoring combustion performance during mid- to high-rpm operation.
* Nose-mounted, two-stage ram-air system provides high volume of cool air to the airbox for linear power delivery and incredible engine performance.
* Lightweight magnesium head cover.
* Cylinder head features angled valve insets to improve airflow.
* Cylinder head features two springs per intake valve and one spring per exhaust valve for optimum high-rpm valve operation and durability.
* Direct shim-under-bucket valve actuation ensures high-rpm performance and durability with 16,000-mile maintenance intervals.
* Lightweight, forged-aluminum pistons incorporate special shot peening for added strength.
* Nutless connecting rods contribute to quicker acceleration.
* Light neodymium magnet ACG.
* Lightweight stainless steel four-into-one exhaust features inline-exhaust valve to control exhaust pressure for maximum performance.
* Double-pivot tensioner for cam-chain durability.
* Smooth-shifting close-ratio six-speed transmission with ratios closely matched to the engine's powerband.

Chassis/Suspension

* Hollow Fine Die-Cast (DC) frame uses four large castings for ultra light weight (see Technology Section).
* 41mm inverted HMAS cartridge front fork features spring preload, rebound and compression damping adjustability for precise suspension tuning. (see Technology Section)
* Exclusive, MotoGP derived Unit Pro-Link Rear Suspension (see Technology Section).
* Braking system features twin four-piston radial-mounted front calipers, dual 310mm front discs and a single 220mm rear disc for optimum stopping power.
* Vertical-piston master-cylinder system produces superior leverage ratio at the front brake lever for higher braking efficiency, excellent feel, and controllability. This layout permits the use of a longer brake lever, which means more braking force with less effort from the rider.
* Light aluminum steering stem.

Additional Features

* Industry-leading ergonomic design features maximum rider comfort for minimum fatigue in all riding conditions.
* Centrally mounted 4.8-gallon fuel tank is positioned low in the frame, increasing mass centralization and allowing a more compact design.
* Plastic tank shell cover protects tank and airbox.
* Line-beam headlights feature three-piece multi-reflector design utilizing two H7 bulbs for optimum light distribution and a unique compact design.
* Instrumentation is very compact and features LCD panel with tachometer, odometer, twin tripmeters, speedometer, fuel gauge and clock.
* Attractive, hollow-spoke aluminum-alloy wheels feature race-spec 3.5 x 17.0-inch front and 5.5 x 17.0-inch rear dimensions.
* One-piece fan assembly for maximum cooling efficiency.
* Maintenance-free battery.
* Compact rear cowl storage compartment for U-type locking devices under the passenger seat. (lock not included)
* Integrated ignition-switch/fork lock for added security.
