AR 10ㅠ speaker,   ar10ㅠ(파이)스피커

 AR 10 파이는 신설계라고 할 수 있는 WEC(우퍼 보정 회로)를 채용.

방에 설치 할 때 벽과 바닥과의 상호 관계에 의해 생기는 저음역의 특성 변화를 3단 스위치로 보정을
       시켜 항상 적당한 벨런스를 얻어 최고의 성능을 발휘하도록 설계를 하였다

        무게는 24.9kg이다.ar 3a와 동일한 유니트를 사용했다고 한다.텔레다인사의 모델입니다.

        Victor Campos라는 신예 기술자의 작품인 AR-10파이, AR-11 등의 신제품을 1977년에 선보였다.

1977년 이후가 New AR(또는 Early Teledyne) 시기라 할 수 있다.

AR-10 pie 등에는  Unit(특히 고음 트위터)을 새로 설계하고,

 Roy가 연구했던 음의 방사에 대한 고려를 가변 네트?의 기술을 적용하는 등

좀 더 현대적인 음으로 고역이 잘 뻗어나가고 저역이 좀더 단단하게 된다.

10π과 11(ar-11의 우퍼는 ar-3a후기형 우퍼유닛을 사용) 두 모델은 고역 유니트와 중역 유니트를 소프트 돔 형식으로 설계하여  한차원 높은 소리를 들려준다

 Drive units: 300mm (12 in.) acoustic suspension woofer, 38mm (1 1/2 in.) hemispherical dome midrange and 19mm (3/4 in.) hemispherical dome highrange.

Crossover frequencies: 525 Hz, 5000Hz

Frequency range: 27 Hz-30kHz

Impedance: 4-8

Sensitivity: 9 watts

Controls: Three 3-position switches for woofer environmental control and for midrange and highrange level control

Impedance: 4 to 8 ohms nominal, depending on switch positions, highest impedance in pi and -6db switch positions, lowest in 4pi and 0db

Efficiency: 1 watt will produce 86db SPL on axis at 1 meter

Power handling ability: May be used with amplifiers capable of delivering up to 150 watts continuous power per channel being driven to clipping 10 % of the time, on normal music material source

Nominal power handing: 100 watts (max, 250)

Crossover network: Half-section LC network on each driver using air-core chokes and computer grade bi-polar electrolytic capacitors. acoustic output of midrange and highrange drivers as well as the normalizing of woofer output for the three basic environments accomplished via an autotransformer and individual switching networks

Driver resonance frequencies: Woofer 18 Hz (free air), midrange 400 Hz, highrange 400 Hz

System low frequency response: -3 db at 35 Hz

Effective System Q: .75

Flux density: Woofer 9800 gauss, midrange 13000 gauss, highrange 14000

Volume of enclose 41.9 liters (1.48 cu. ft.)

Cabinet dimensions: 354 x635 x 273 mm deep (13 15/16 x 25 x 10 3/4 in.)

Weight; unpacked 24.9 kg (55 lb.)

유닛구성은 12“페라이트 폼엣지 우퍼

                1.5”돔형 페라이트 중음

               0.75“돔형 페라이트 트윗으로 3Way

무 게; 약 24.9kg(1개당)

음 압; 4옴에 86db

크로스오버 주파스; 525hz~5000hz

재생주파수 : 27~30,000Hz
크 기; W35.4cm*H63.5cm*D27.3cm ( 폭354×높이635×깊이273mm

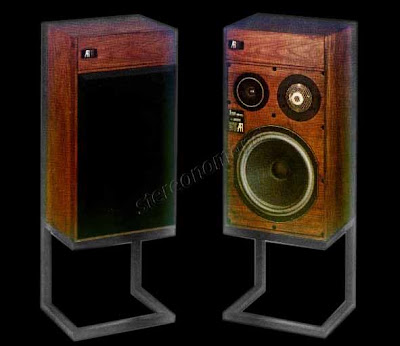

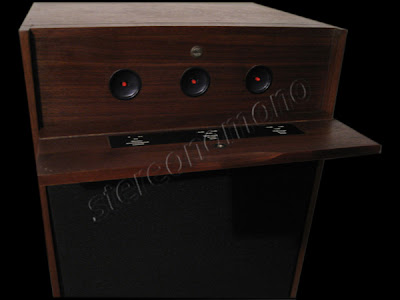

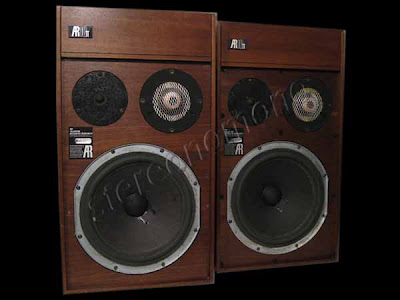

 고음, 중음, 저음 각각의 조절 어테뉴에이터가 전면 상부에 부착되었다.

AR3a를 이어 받아 제조된 모델로 AR11과도 유사한 면도 있으나,훨씬 상급기이다. 소리성향은 ar3a보다 현대적인 성향으로 제작했다는 제작사의 소개가 있었다

AR3A의 중기형 유닛일체를 채용하여 1977년 발매한
70년대 후반  텔레다인사의 AR 10파이입니다

텔레다인 모델은 실런트로 우퍼와 인클로져 사이를 밀폐하지 않습니다. 발포비닐로 우퍼 밀폐를 하게끔 되어 있습니다.

AR-10π 스피커는 성향은 3A와 유사하면서 내구성, 해상도,  등을 개선한 좀더 현대적 스타일의 스피커입니다

AR3A의 중기형 유닛일체를 채용하여 1977년 발매한 스피커다

  AR사는 음악을 좋아하는 에드가 빌쳐(Edgar Villchur)에 의해 설립되었다. 그는 세계 최초로 돔 트위터를 개발해 냈을 뿐만 아니라 턴테이블에 있어서도 당시로는 획기적인 프로팅 시스템(3점지지 부동 샤시구조)을 완성했다. 또한 AR사는 최초로 북셀프형 스피커를 개발한 회사이다. 당시에는 대형 플로어 타입 스피커가 강세였는데 AR사는 부단한 노력으로 북셀프타입의 완전밀폐형(Acoustic Suspension) 스피커를 개발했다. 그것이 AR-1이다. 구형 AR스피커의 특징은 밀폐형으로 무거운 저음과 자연스러운 고역에 있다.

피셔tr앰프  500tx와 매칭이 좋다.

매칭-쿼드33+303, 마란츠 2330 1180,1250,1300 등,매킨토시 MC7300,피셔 800T,  Kenwood KR-9600 (8 옴으로 160w/channel)

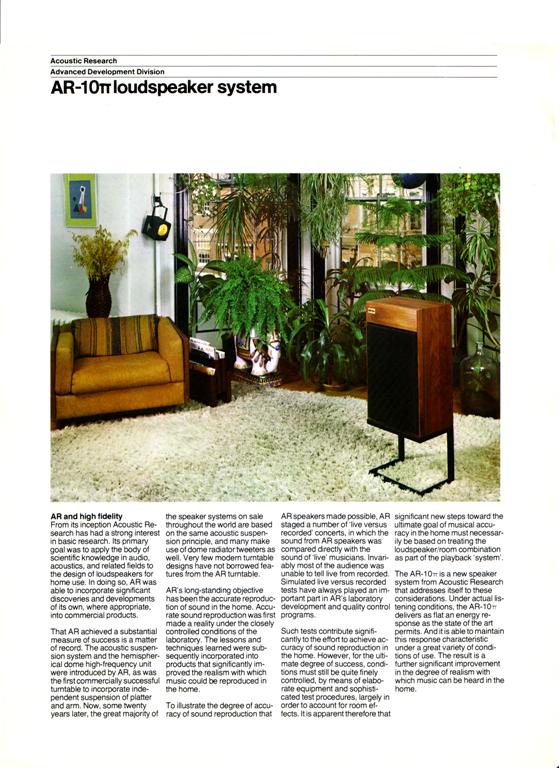

The AR-10π is a new speaker system from Acoustic Research that addresses itself to these considerations. Under actual listening conditions, the AR-10π delivers as flat an energy response as the state of the art permits. And it is able to maintain this response characteristic under agreat variety of conditions of use. The result is a further significant improvement in the degree of realism with which music can be heard in the home.

The AR-10π - is designed to reproduce music in the home as accurately as the state of the art permits. Its ability in this respect represents a number of significant evolutionary improvements over previous designs. Further the AR-10π - is intended to offer an unprecedented degree of flexibility without any sacrifice in accuracy. The combination of these characteristic, we believe, represents a significant step forward in loudspeaker design.

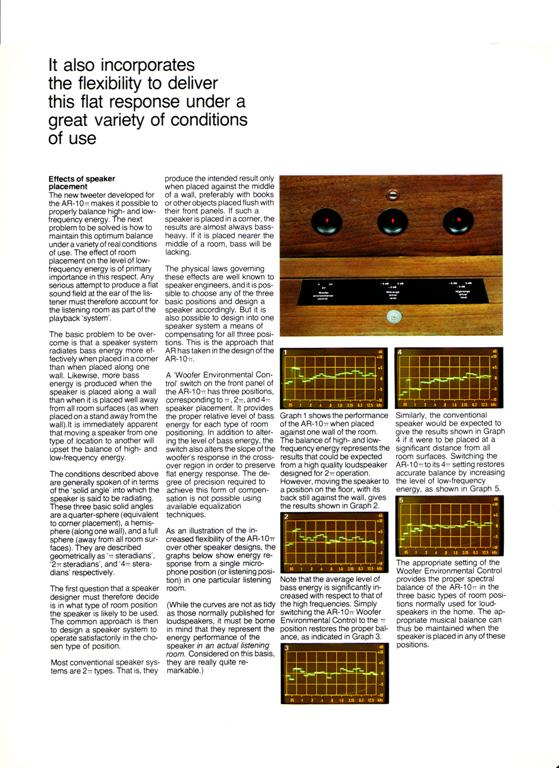

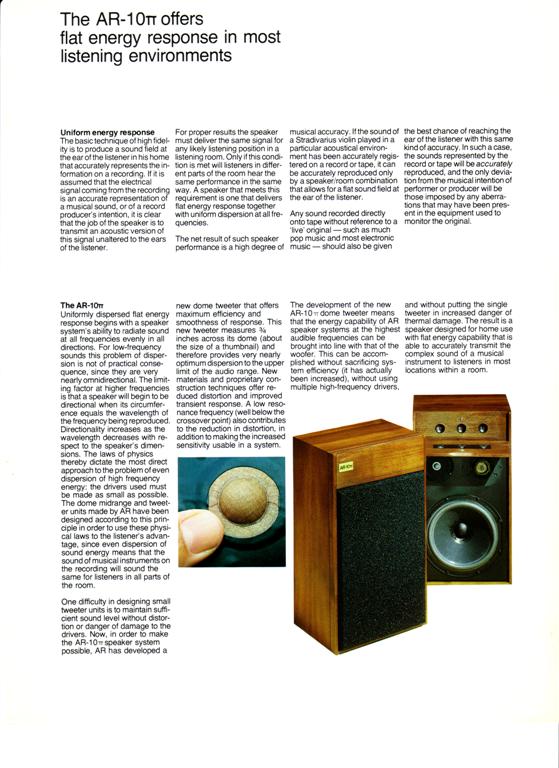

The Ar 10π is a no-compromise 3 way speaker system with excellent dispersion and even energy output all across the audible spectrum. A pair of 3 position switches allows the owner to adjust the mid and high-range drivers to the "liveliness" of the room while the 3-position woofer environmental control allows the owner to adjust the low-end response to speaker placement. This allows the owner to place the speakers on the center of the wall, on the floor against the wall or away from the wall.

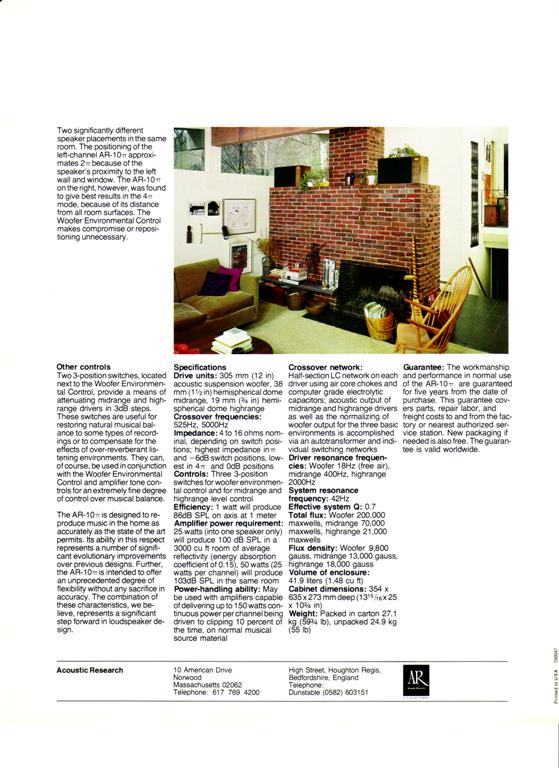

Drive units:

300 mm (12 in.) acoustic suspension woofer,

38 mm (1 1/2 in.) hemispherical dome midrange,

19 mm (3/4 in.) hemispherical dome highrange.

Crossover frequencies: 525 Hz, 5000 Hz

Frequency range: 27 Hz - 30.000 Hz

Impedance: 4 - 8 ohm

Controls:

Three 3-position switches for woofer environmental control and for midrange and highrange level control

Impedance:

4 to 8 ohms nominal, depending on switch positions, highest impedance in π and -6 dB switch positions, lowest in 4π and 0db

Efficiency:

1 watt will produce 86 dB SPL on axis at 1 meter.

Amplifier power requirement:

25 watts (into one speaker only) will produce 100 dB SPL in a 3000 cu π room of average reflectivity (energy absorption coefficient of 0,15), 50 watts (25 watts per channel) will produce 103 dB SPL in the same room.

Power handling ability:

May be used with amplifiers capable of delivering up to 150 watts continuous power per channel being driven to clipping 10 % of the time, on normal music material source

Nominal power handing: 100 watts (max, 250)

Crossover network:

Half-section LC network on each driver using air-core chokes and computer grade bi-polar electrolytic capacitors. acoustic output of midrange and highrange drivers as well as the normalizing of woofer output for the three basic environments accomplished via an autotransformer and individual switching networks

Driver resonance frequencies:

Woofer 18 Hz (free air), midrange 400 Hz, highrange 400 Hz

System resonance frequency: 42 Hz

System low frequency response: -3 db at 35 Hz

Effective System Q: 0.75

Flux density: Woofer 9800 gauss, midrange 13000 gauss, highrange 14000

Volume of enclosure: 41.9 liters (1.48 cu. ft.)

Cabinet dimensions: 354 x635 x 273 mm deep (13 15/16 x 25 x 10 3/4 in.)

Weight: unpacked 24.9 kg (55 lb.)





1997년 8월에 Woodstock 자택 연구실에서의 모습.



황순국님시스템 전경입니다
